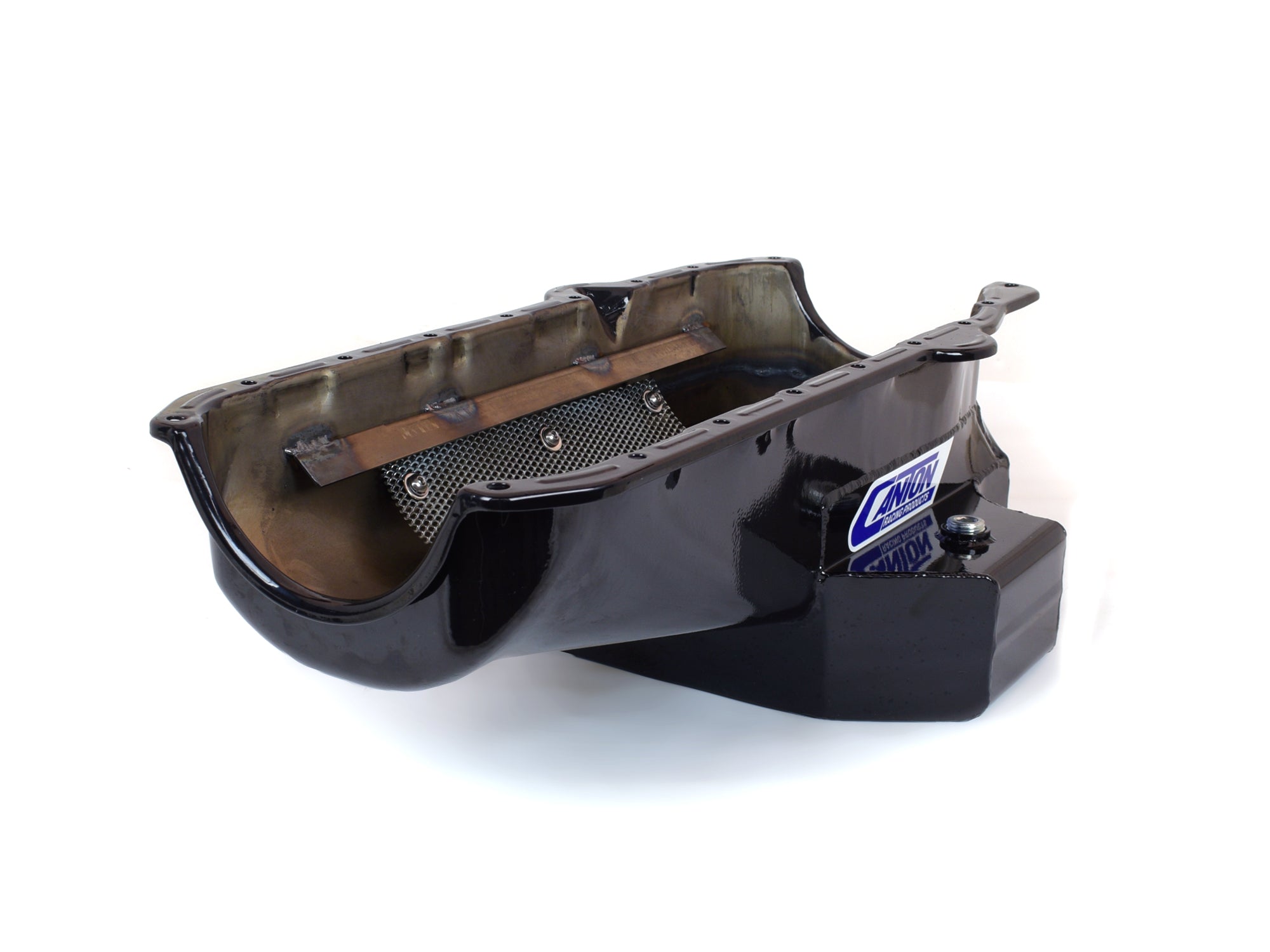

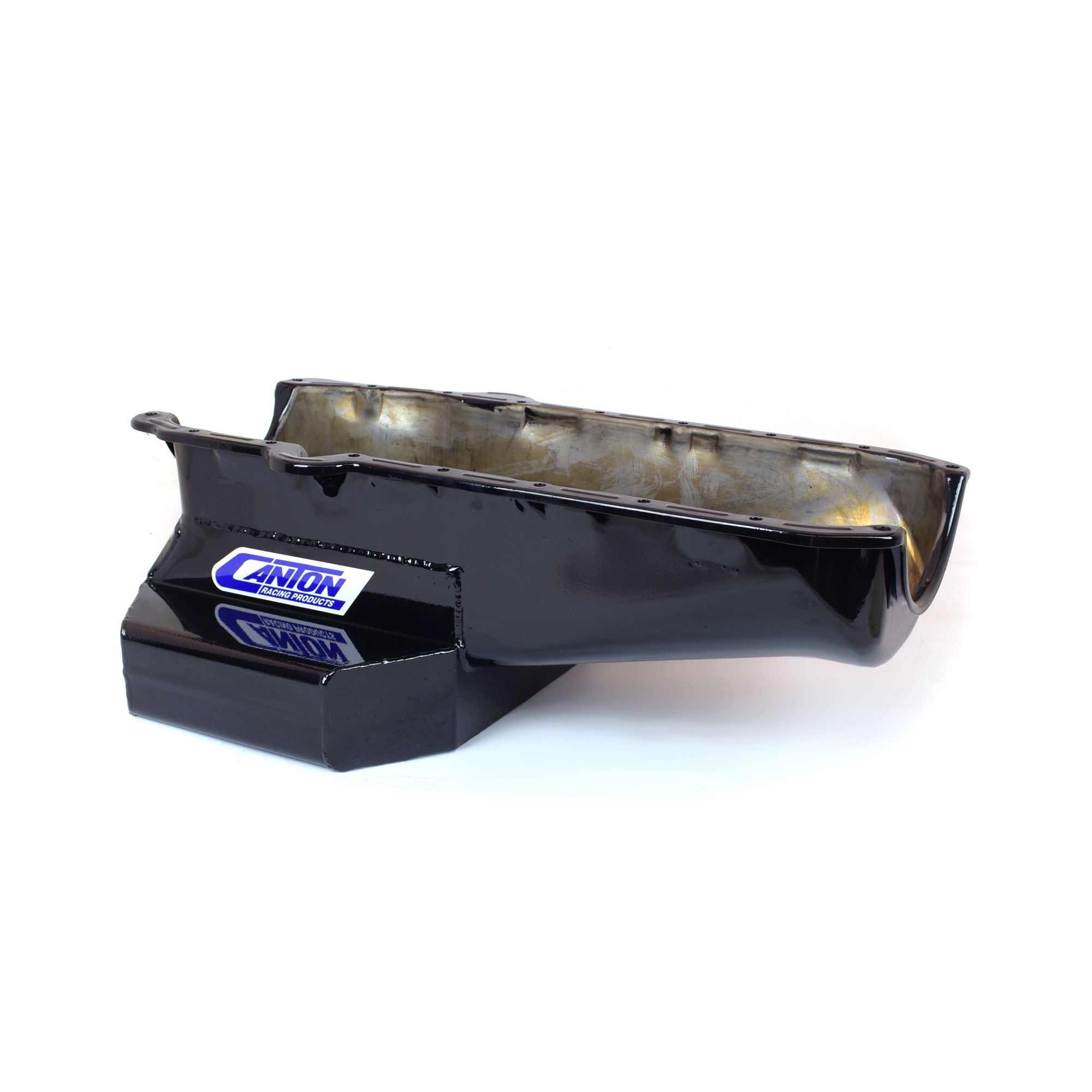

Canton 15-250TBLK Oil Pan For SBC G Body Road Race Pan 1 Piece Seal

This black powder coat SBC road race oil pan is for '86 and newer blocks with one piece seal. It is designed for x-member clearance in '78 and up F bodies, without cross over exhaust. It has a 7-1/2" deep, 13-3/4" wide, 10-1/2" long sump, for a 7 quart system capacity. This pan requires one of our pickups.

• 7 qt System Capacity
• Five Trap Door Baffles
• Crank Scraper
• Built In Screen Windage Tray
• 1/2" NPT Temperature Bung
• Magnetic Drain Plug

Attributes:

• GTIN: 00887753712295
• Brand Name: Canton
• Baffled: Yes
• Material: 16 Gauge Steel
• Stoke: 3.75 inches
• Recommended Accessory 8: 88-100T ? SBC 86+ Oil Pan Gasket
• Recommended Accessory 7: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
• Recommended Accessory 6: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
• Recommended Accessory 5: 20-021 - Bolt-On Pickup for Melling M10555 Pumps
• Recommended Accessory 4: 20-023 - Pickup for SBC High Volume Oil Pump M155HV with 3/4" Inlet
• Recommended Accessory 3: 20-020 - Pickup for SBC High Volume Oil Pump M55HV
• Recommended Accessory 2: 20-013 - Pickup for SBC Standard Volume Oil Pump M155 with 3/4" Inlet
• Recommended Accessory 1: 20-010 - Pickup for SBC Standard Volume Oil Pumps M55 & M55A
• Pickup Included: No
• Kicked Out: Yes
• Capacity: 7 Quart System Capacity
• Hardware Included: No
• Gasket or Seal Included: No
• Finish: Black Powdercoat
• Feature 4: 1/2" NPT Temperature Bung
• Feature 3: Bolt in Windage Tray
• Feature 2: Crank Scraper
• Feature 1: Trap Door Baffle for Oil Control
• Engine: For S.B. Chevy 1986 and newer blocks with one piece seal
• Drain Plug Included: Yes
• Dipstick Port: No
• Crank Scraper Included: Yes
• Windage Tray Included: Yes

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24 x 16 x 10 inches
• Weight: 18 lb
