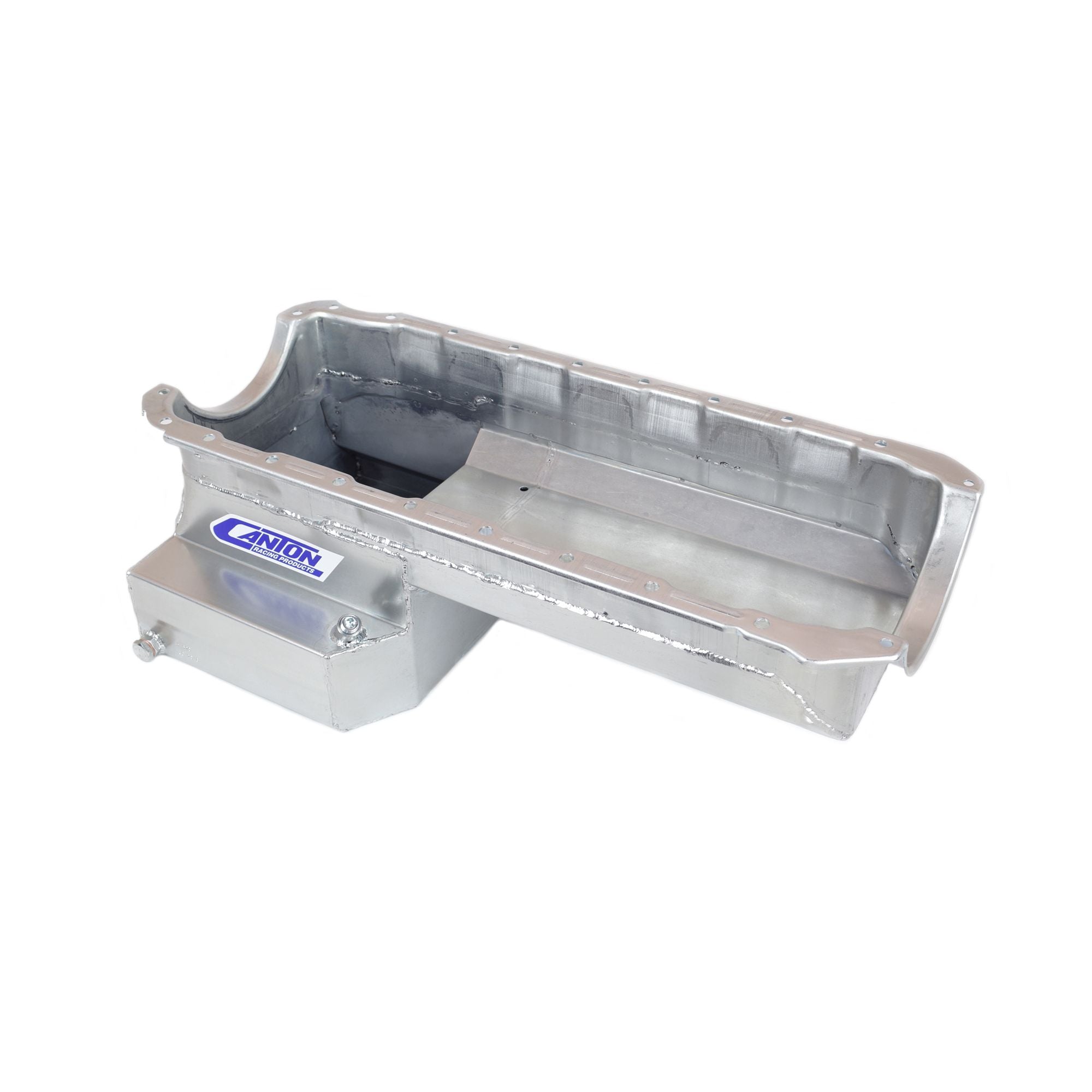

Canton 15-320 Oil Pan Big Block Chevy T Sump Street Pan

This BBC stock depth wide sump oil pan is for Mark IV big block Chevys. It is designed with a shallow front with angled corners to clear the large cross members in early Camaros and Novas and '68-'72 Chevelle. It has an 8" Deep, 12" Wide, 9-1/2" Long sump with a 7 quart system capacity. Due to the extra shallow front section of this pan designed for large cross member clearance our main cap mounted windage trays will not clear this pan. This pan requires our 20-170 pickup.

• 7 qt System Capacity
• Pan Retains Stock Depth & Can Clear a 4.25" Stroke
• Crank Scraper
• Slosh Baffle
• Provision For Our Pan Mounted Dipstick
• Magnetic Drain Plug

Attributes:

• GTIN: 00887753712431
• Brand Name: Canton
• Baffled: Yes
• Hardware Included: No
• Sump Width: 12 inches
• Sump Depth: 8 inches
• Stoke: 4.25 inches
• Recommended Accessory 4: 88-300 ? BBC Mark IV Oil Pan Gasket
• Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
• Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
• Recommended Accessory 1: 20-170 - Pickup for BBC Oil Pumps
• Pickup Included: No
• Material: 16 Gauge Steel
• Kicked Out: Yes
• Gasket or Seal Included: No
• Capacity: 7 Quart System Capacity
• Finish: Silver Plating
• Feature 5: Magnetic Drain Plug
• Feature 4: Clears 4.24" Stroke
• Feature 3: Provision for Pan Mounted Dipstick
• Feature 2: Crank Scraper
• Feature 1: Slosh Baffle For Oil Control
• Engine: For B.B. Chevy Mark 4 Blocks
• Drain Plug Included: Yes
• Dipstick Port: Yes
• Crank Scraper Included: Yes
• Windage Tray Included: No

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 26 x 14 x 10 inches
• Weight: 18 lb
