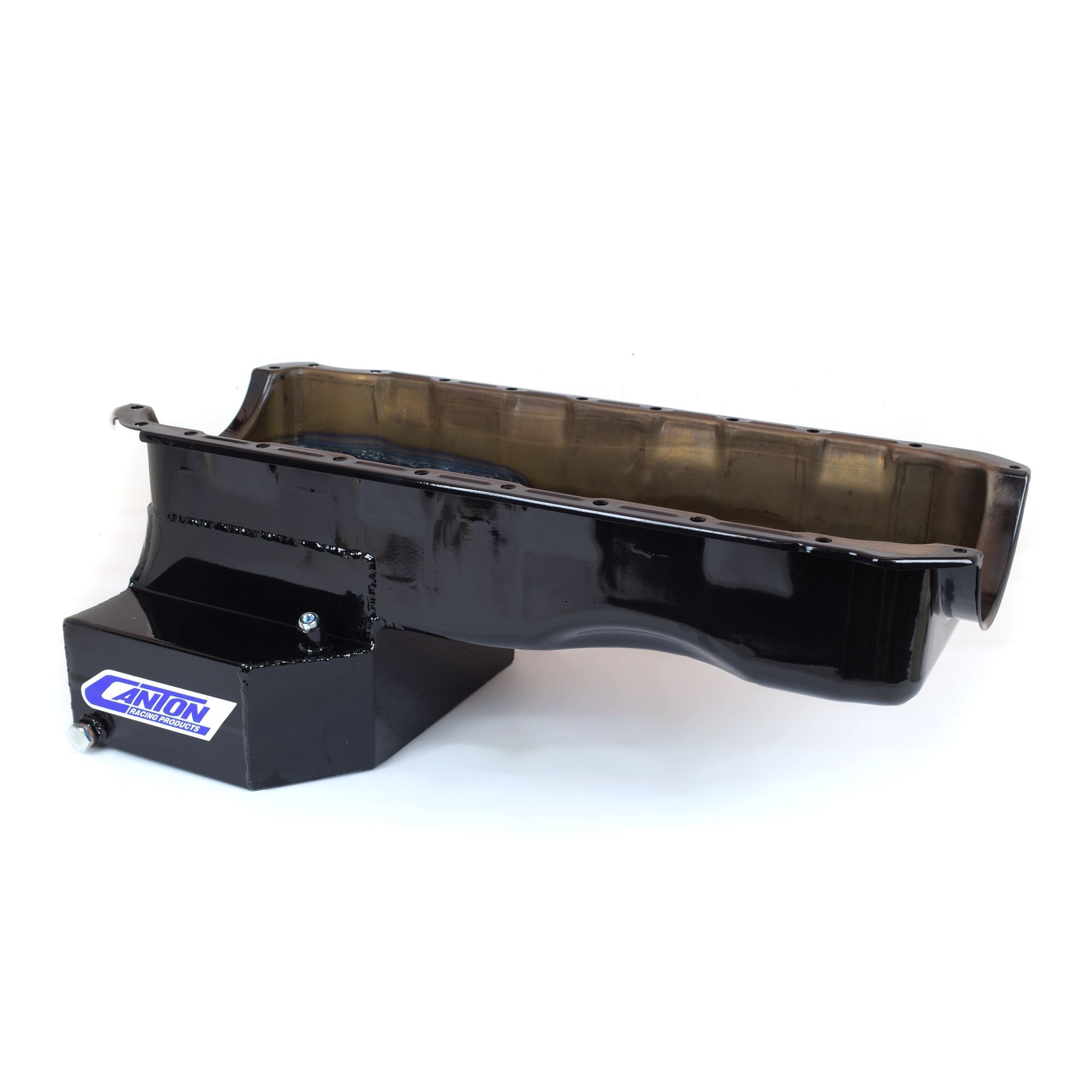

Canton 15-350BLK Oil Pan Big Block Chevy Early Chevelle Street Pan T Sump

This black powdercoat BBC early Chevelle pan is for standard Mark 4 Big Blocks with a 2 piece rear seal. It is designed with angled front corners to fit in '64-'67 Chevelle and most other GM chassis. It has a 9" deep, 13" wide, 8-1/2" long sump for an 8 quart system capacity. This pan requires our 20-190 pickup.

• 8 qt System Capacity
• Pan Retains Stock Depth & Can Clear a 4.5" Stroke
• Crank Scraper
• Slosh Baffle
• Provision For Our Pan Mounted Dipstick
• Magnetic Drain Plug

Attributes:

• GTIN: 00887753712486
• Brand Name: Canton
• Baffled: Yes
• Hardware Included: No
• Sump Width: 13 inches
• Sump Depth: 9 inches
• Stoke: 4.5 inches
• Recommended Accessory 4: 88-300 ? BBC Mark IV Oil Pan Gasket
• Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
• Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
• Recommended Accessory 1: 20-190 - Pickup for BBC Oil Pumps
• Pickup Included: No
• Material: 16 Gauge Steel
• Kicked Out: Yes
• Gasket or Seal Included: No
• Capacity: 8 Quart System Capacity
• Finish: Silver Plating
• Feature 6: Black Powdercoat
• Feature 5: Magnetic Drain Plug
• Feature 4: Clears 4.5" Stroke
• Feature 3: Provision for Pan Mounted Dipstick
• Feature 2: Crank Scraper
• Feature 1: Slosh Baffle For Oil Control
• Engine: For B.B. Chevy Mark 4 Blocks
• Drain Plug Included: Yes
• Dipstick Port: Yes
• Crank Scraper Included: Yes
• Windage Tray Included: No

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 26 x 14 x 10 inches
• Weight: 18 lb
