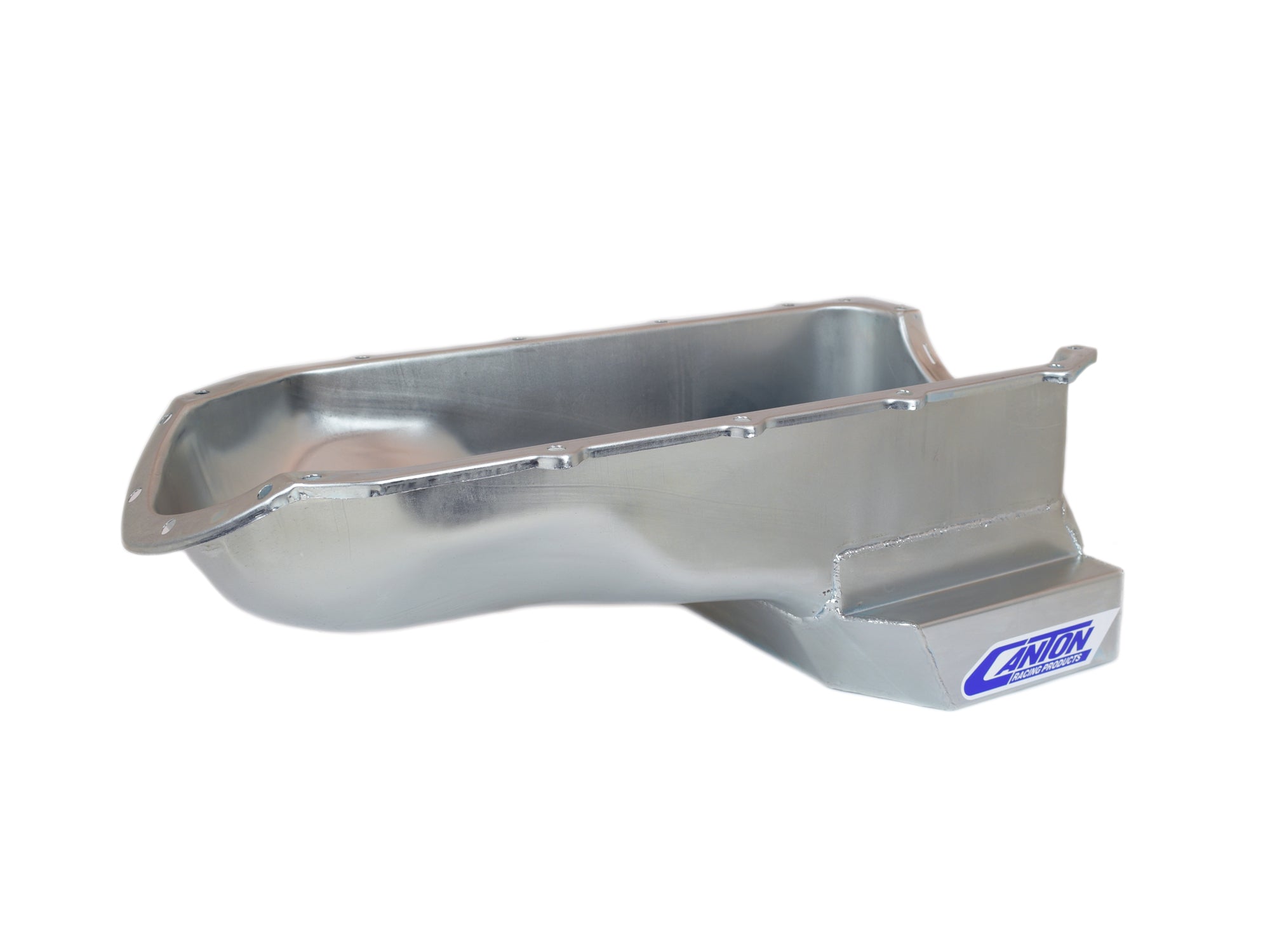

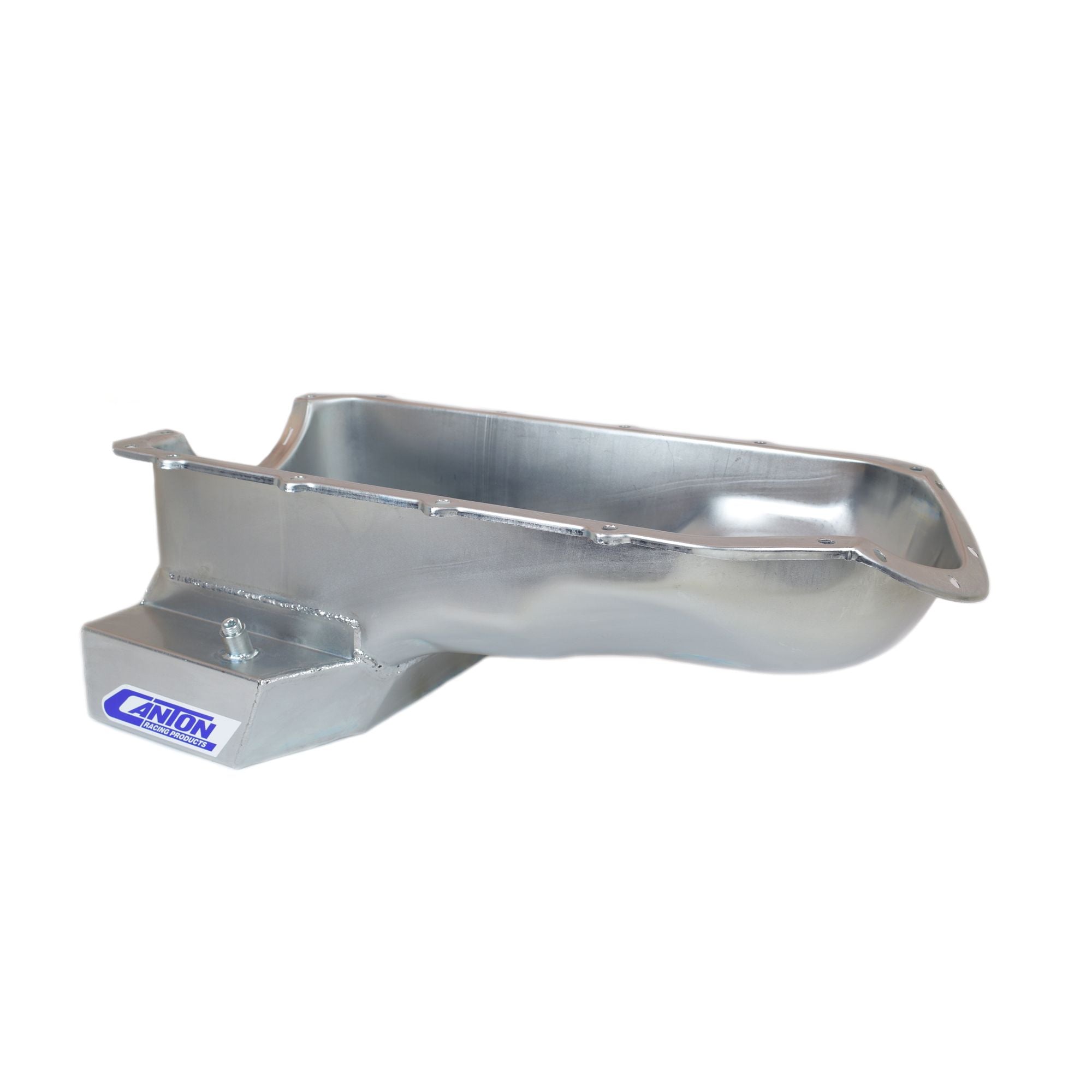

Canton 15-444 Oil Pan For Pontiac Road Race T-Sump Pan

The Canton oil pan # 15-444 is a Pontiac road race T sump oil pan for use in road race competition. Sump is 8? deep by 14?wide by 7 ? long with a 7 quart system capacity Note: Modification maybe required to the right side of the pan with some exhaust systems 3 ? required between right side of stock pan and exhaust to clear T sump without mod. This Pan Requires our 15-401 pickup.

• 7 qt System Capacity
• Triple Trap Door Baffle
• Removable Windage/Anti-Slosh Baffle
• Provision For Our Pan Mounted Dipstick
• Magnetic Drain Plug

Attributes:

• GTIN: 00887753712561
• Brand Name: Canton
• Baffled: Yes
• Finish: Silver Plating
• Recommended Accessory 1: 15-401 - Pontiac Pickup S.S High Volume 301-455
• Pickup Included: No
• Material: 16 Gauge Steel
• Kicked Out: Yes
• Hardware Included: No
• Gasket or Seal Included: No
• Feature 5: Magnetic Drain Plug
• Capacity: 7 Quart System Capacity
• Feature 4: Provision For Our Pan Mounted Dipstick
• Feature 3: Removable Windage/Anti-Slosh Baffle
• Feature 2: Triple Trap Door Baffle
• Feature 1: 7 qt System Capacity
• Drain Plug Included: Yes
• Dipstick Port: Yes
• Crank Scraper Included: No
• Windage Tray Included: No

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 27 x 16.25 x 9.75 inches
• Weight: 16.1 lb
