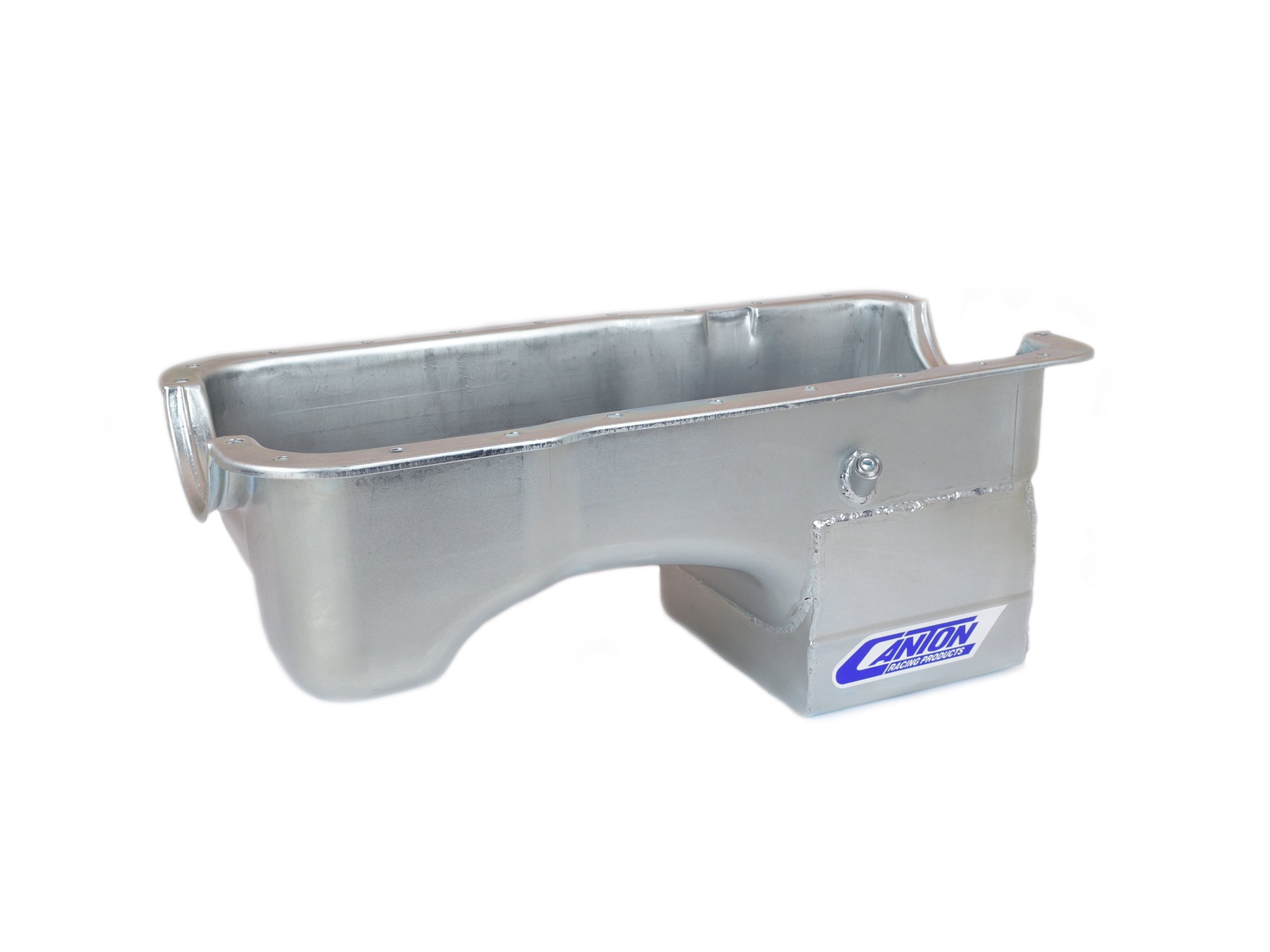

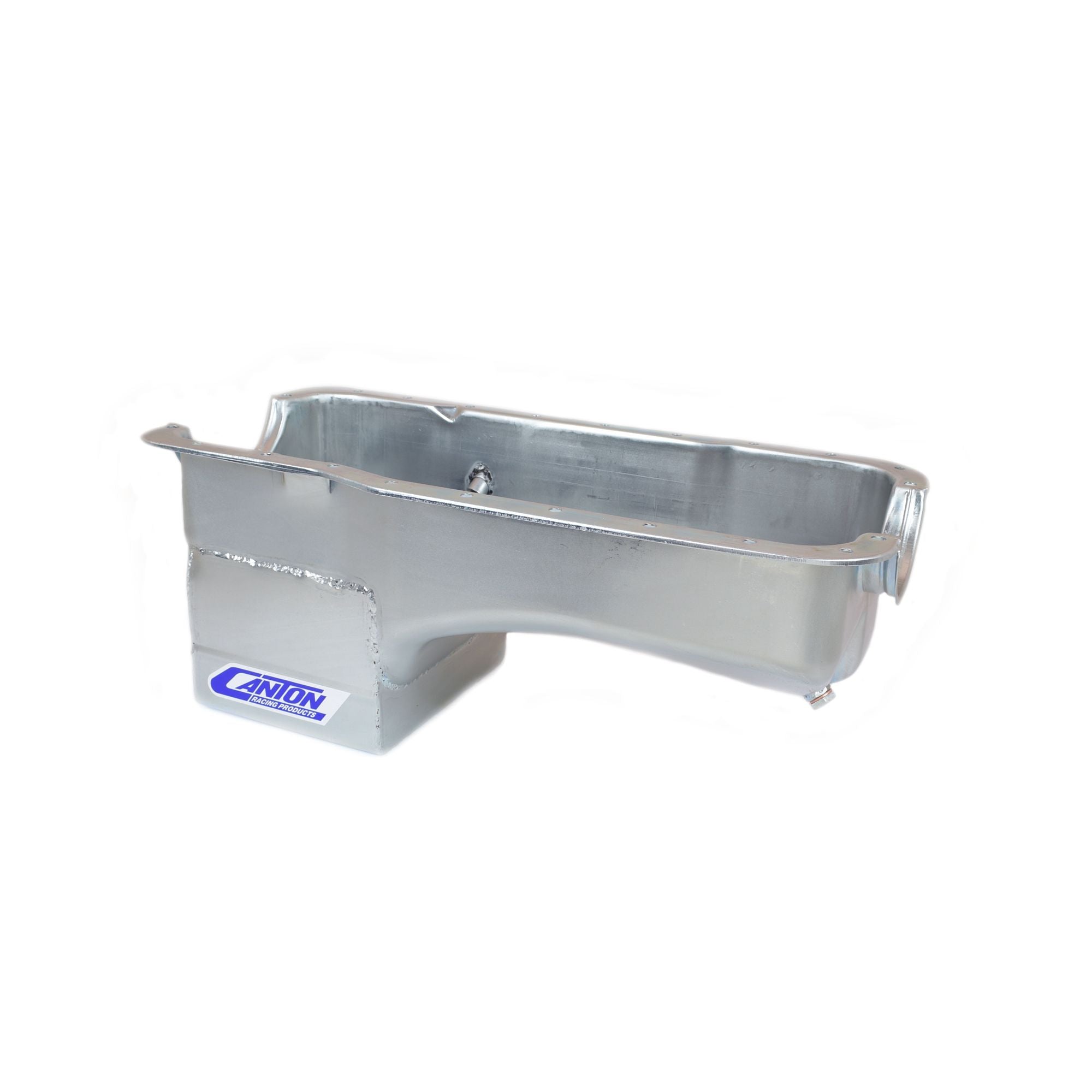

Canton 15-620S Oil Pan Ford 289-302 Deep Rear Sump Street Pan Without Scraper

$396.00 USD $475.20
By Canton
SKU: BGTF-15-620S
Minus Plus
More details Right
This deep sump oil pan is for 289-302 blocks in Fox Body Mustangs with main supports. It has a 9" deep by 7" long sump and a 7 quart system capacity. The deletion of the crank scraper allows clearance for most main supports. This pan requires one of our pickups.
  • 7 qt System Capacity
  • Extra Deep Sump For Increased Oil Control & Capacity
  • Slosh Baffle
  • Provision For Our Pan Mounted Dipstick
  • Magnetic Drain Plug

Attributes:

  • GTIN: 00887753712837
  • Brand Name: Canton
  • Baffled: Yes
  • Pickup Included: No
  • Sump Depth: 9 inches
  • Stoke: 3.4 inches
  • Recommended Accessory 9: 88-602 ? Small Block Ford 289-302 One Piece Oil Pan Gasket
  • Recommended Accessory 8: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
  • Recommended Accessory 7: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
  • Recommended Accessory 6: 20-953 - Pickup Mounting Stud for Ford 302R Based Engines
  • Recommended Accessory 5: 20-950 - Pickup Mounting Stud for Ford 302 Based Engines
  • Recommended Accessory 4: 20-960 - Ford 289-302 Main Support Windage Tray
  • Recommended Accessory 3: 21-060 - CANTON 289-302 Main Support
  • Recommended Accessory 2: 15-627 - Pickup with 7/8" Dia. Inlet
  • Recommended Accessory 1: 15-625 - Pickup with 3/4" Dia. Inlet
  • Material: 16 Gauge Steel
  • Capacity: 7 Quart System Capacity
  • Kicked Out: No
  • Hardware Included: No
  • Gasket or Seal Included: No
  • Finish: Silver Plating
  • Feature 5: Magnetic Drain Plug
  • Feature 4: Provision For Our Pan Mounted Dipstick
  • Feature 3: Slosh Baffle
  • Feature 2: Extra Deep Sump For Increased Oil Control & Capacity
  • Feature 1: 7 qt System Capacity
  • Drain Plug Included: Yes
  • Dipstick Port: Yes
  • Crank Scraper Included: No
  • Windage Tray Included: No

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 26 x 14 x 10 inches
  • Weight: 16 lb
