Canton 15-734 Oil Pan Ford 5.0 Coyote Road Race T Sump Drag Street and Road Race

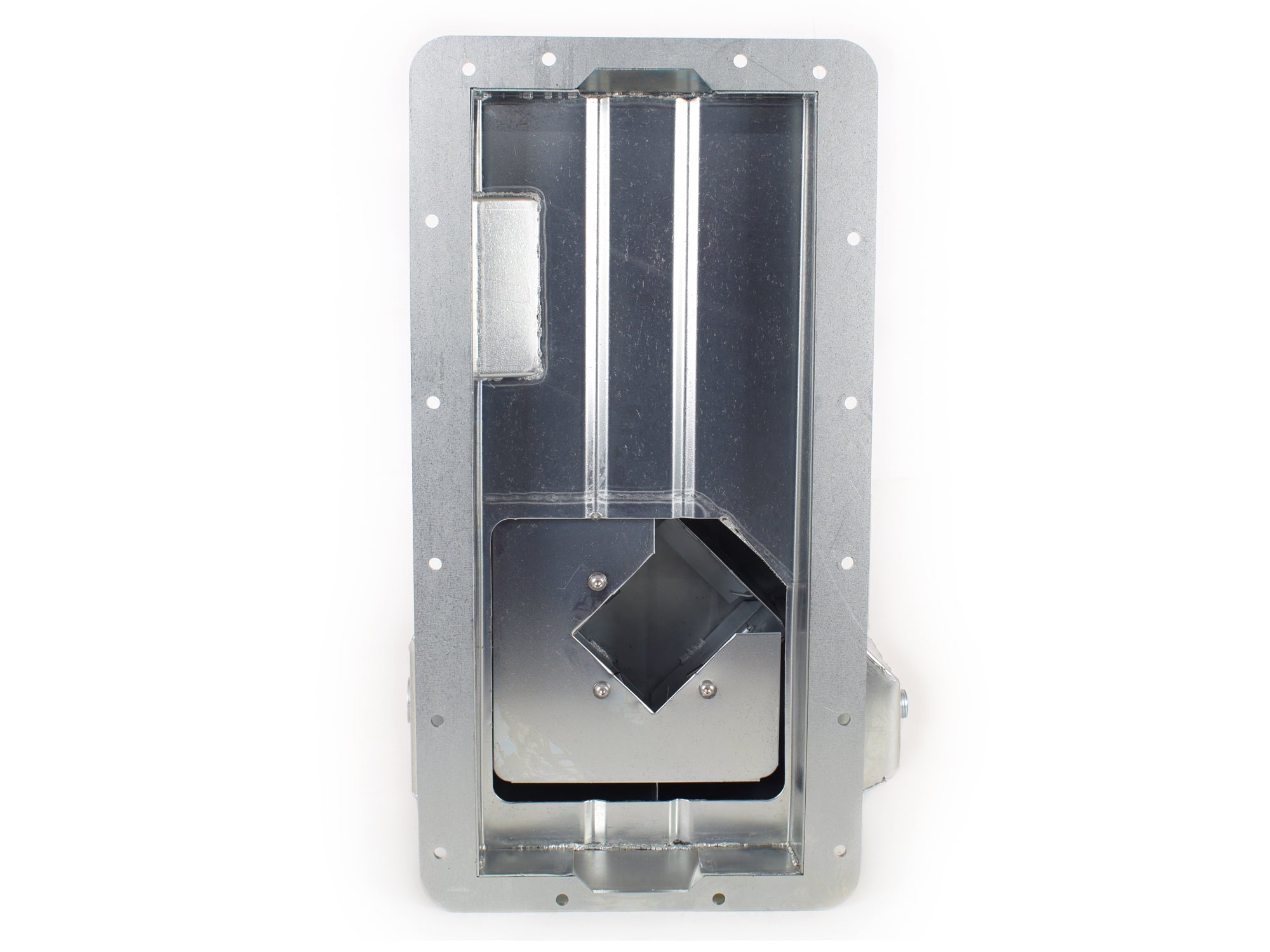

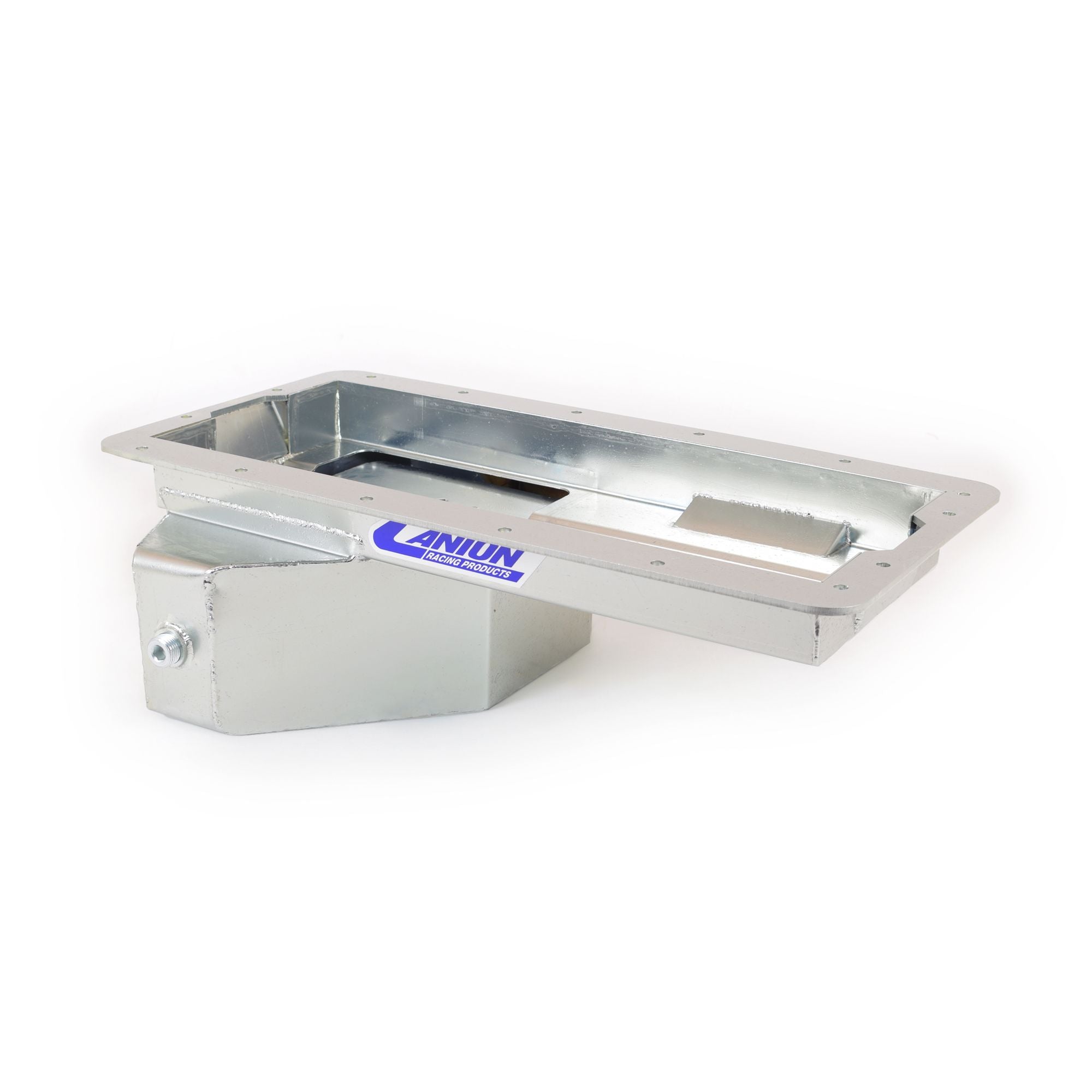

This 15-734 Ford 5.0 Coyote oil pan is designed for 96-04 and 05-12 Mustangs being used in road racing or street/strip applications. Our laser cut rail provides a strong, easy to seal surface. It's rear T sump design offers extra capacity without sacrificing ground clearance and includes a diamond shaped road race baffle assembly with four trap doors for great oil control under heavy driving conditions.

• 9 qt System Capacity
• Diamond Shape Road Race Baffle Assembly With Four Trap Doors
• Crank Scraper
• Removable Windage/Anti-Slosh Baffle
• 1/2" NPT Temperature Bung
• Provision For Our Pan Mounted Dipstick
• Magnetic Drain Plug

Attributes:

• GTIN: 00887753713360
• Brand Name: Canton
• Baffled: Yes
• Finish: Silver Plating
• Recommended Accessory 3: 20-854 - Flexible Universal Steel Braided Dipstick Kit - 1/4" NPT Fitting
• Recommended Accessory 2: 20-850 - Universal Dipstick Kit - 1/4" NPT Fitting
• Recommended Accessory 1: 22-405 - 20mm Plug For Oil Level Sender Port
• Pickup Included: No
• Material: 16 Gauge Steel
• Kicked Out: Yes
• Hardware Included: No
• Gasket or Seal Included: No
• Feature 7: 20 mm bung for low oil warning sender (Plug required if sender isn't used)
• Capacity: 7 Quart System Capacity
• Feature 6: Provison for our Pan Mounted Dipstick
• Feature 5: 1/2" NPT bung for temperature sensor
• Feature 4: 7 qt System Capacity
• Feature 3: Magnetic Drain Plug
• Feature 2: Bolt In Anti-Slosh Baffle
• Feature 1: 3/16" Lasercut Rail
• Drain Plug Included: Yes
• Dipstick Port: No
• Crank Scraper Included: No
• Windage Tray Included: No

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 26 x 13.25 x 9.75 inches
• Weight: 15.95 lb
