$91.80 off
Canton 15-764BLK Oil Pan Big Block Ford Front T Sump Road Race Pan
$459.00 USD
$550.80
By Canton
SKU: BGTF-15-764BLK

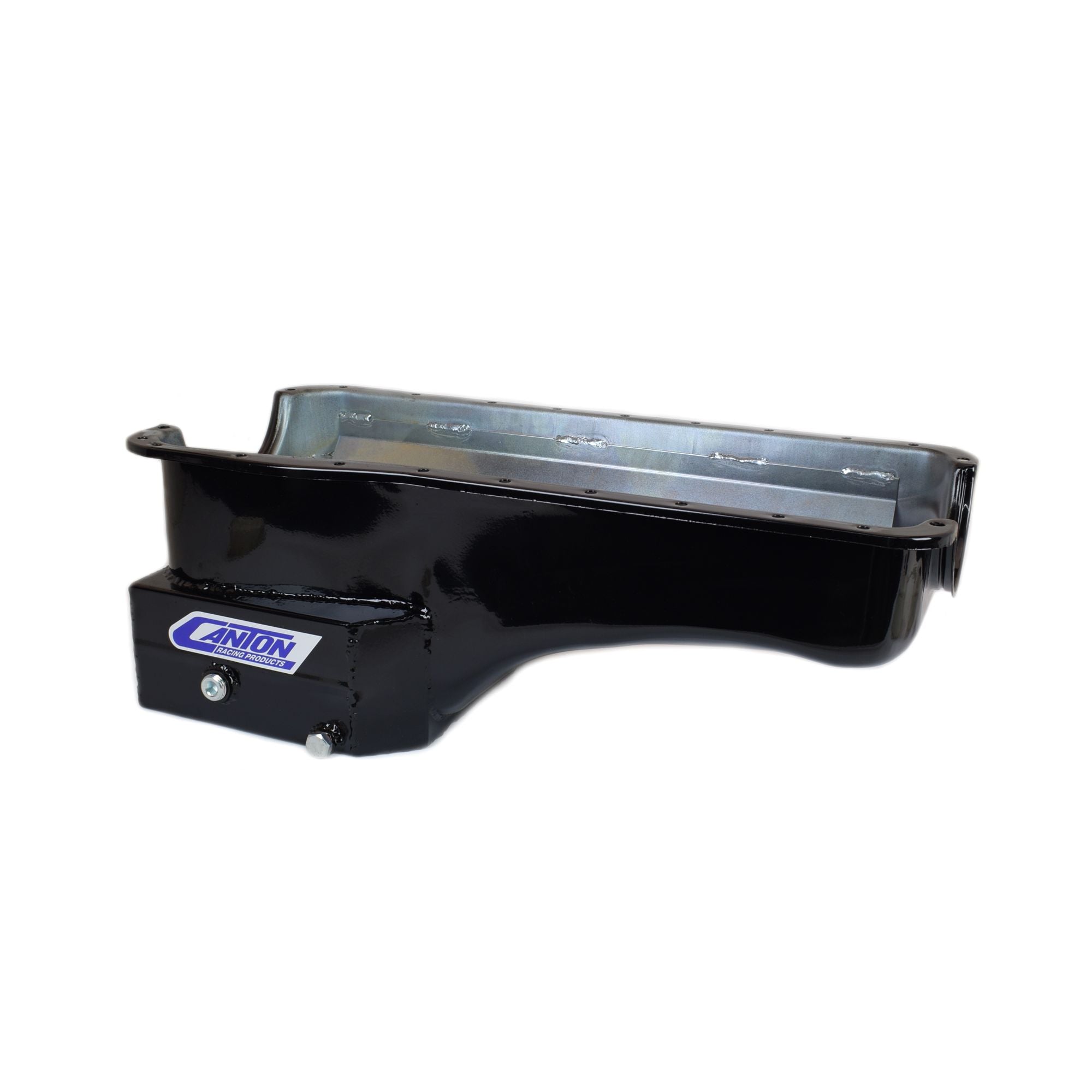

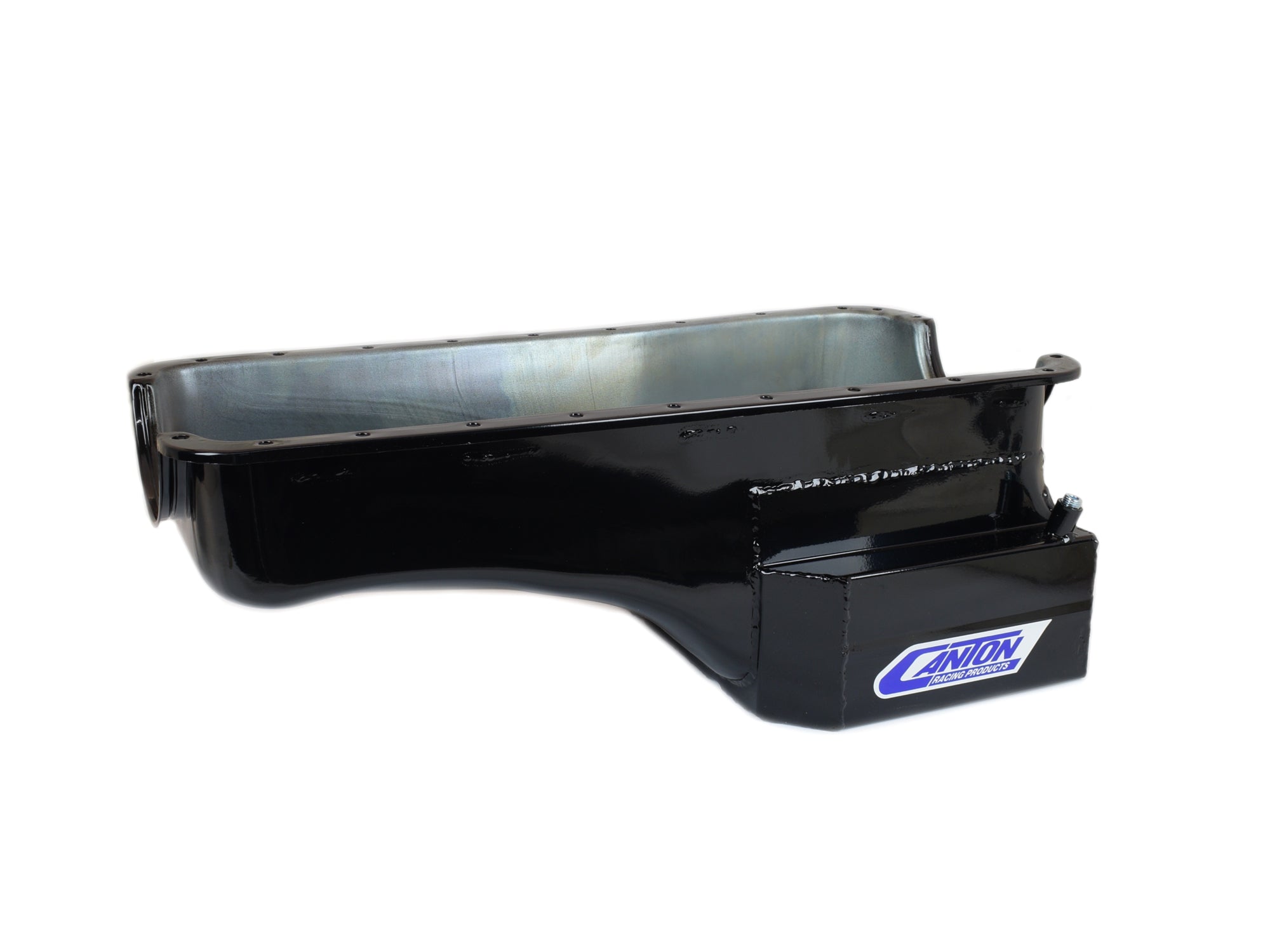

This black powder coat front sump road race pan is for big block Ford 429-460 blocks. It has a 8-1/2" deep, 12" wide sump for a 7 quart system capacity. This pan requires our 15-763 pick-up.
- 7 qt System Capacity
- Shallow "T" Sump Pan Fully Baffled For Road Race
- Diamond Shape Road Race Baffle Assembly With Four Trap Doors
- Crank Scraper
- Removable Windage/Anti-Slosh Baffle
- 1/2" NPT Temperature Bung
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Attributes:
- GTIN: 00887753713513
- Brand Name: Canton
- Baffled: Yes
- Gasket or Seal Included: No
- Sump Width: 12 inches
- Sump Depth: 8.5 inches
- Stoke: 4.5 inches
- Recommended Accessory 4: 88-750 - Big Block Ford 429-460 Four Piece Oil Pan Gasket
- Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 1: 15-763 - Pickup for M-84DHV
- Pickup Included: No
- Material: 16 Gauge Steel
- Kicked Out: Yes
- Hardware Included: No
- Finish: Black Powdercoat
- Capacity: 7 Quart System Capacity
- Feature 8: Magnetic Drain Plug
- Feature 7: Provision For Our Pan Mounted Dipstick
- Feature 6: 1/2" NPT Temperature Bung
- Feature 5: Removable Windage/Anti-Slosh Baffle
- Feature 4: Crank Scraper
- Feature 3: Diamond Shape Road Race Baffle Assembly With Four Trap Doors
- Feature 2: Shallow "T" Sump Pan Fully Baffled For Road Race
- Feature 1: 7 qt System Capacity
- Drain Plug Included: Yes
- Dipstick Port: Yes
- Crank Scraper Included: Yes
- Windage Tray Included: No
Extended Information:
- Country of Origin: United States
- Emissions : Released
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
- Weight: 16 lb
PDF:
Pan Install - Standard Part B
