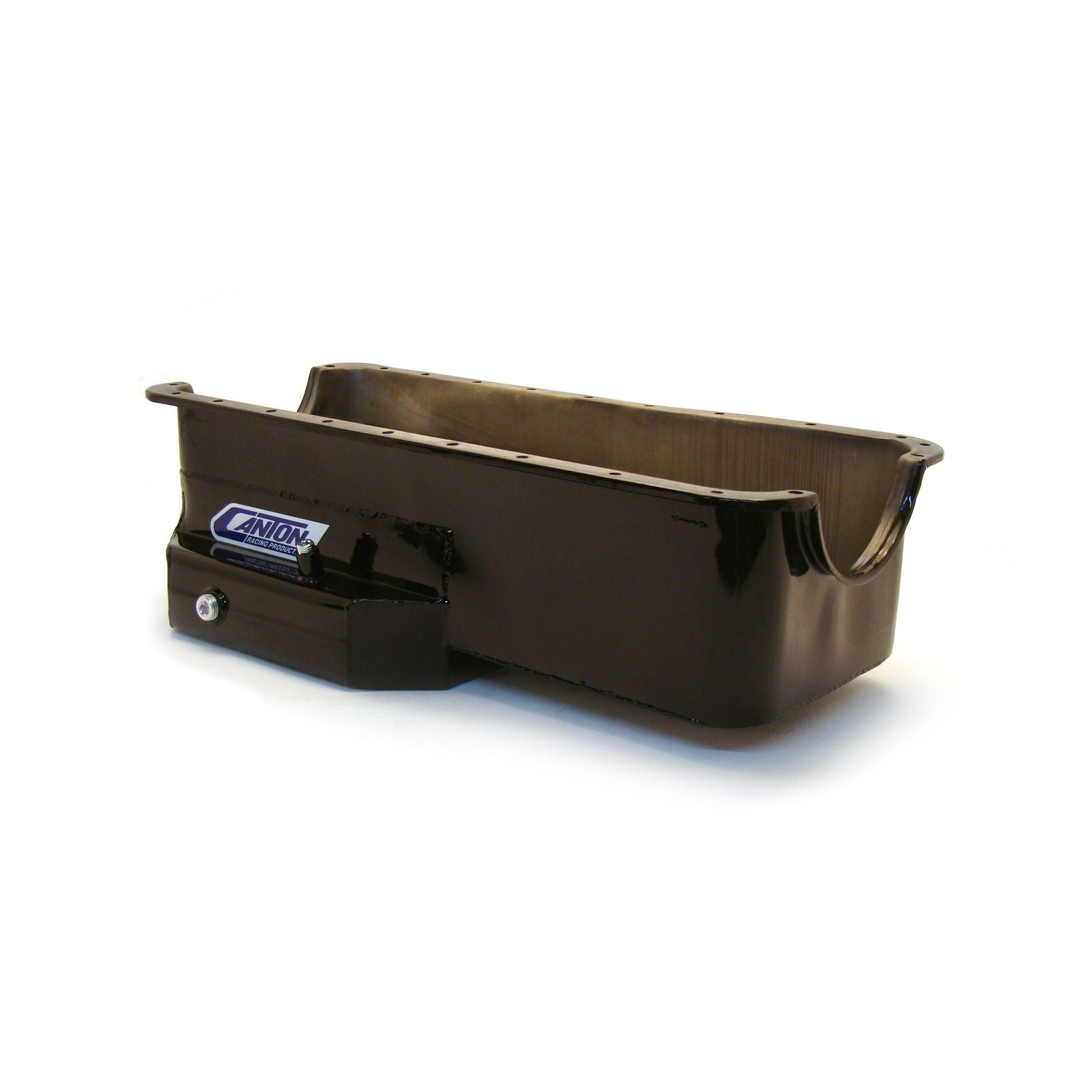

Canton 15-766 Oil Pan For Ford 429 460 Rear T Sump Road Race Cobra Pan

$489.00 USD $586.80
By Canton
SKU: BGTF-15-766
Minus Plus
More details Right

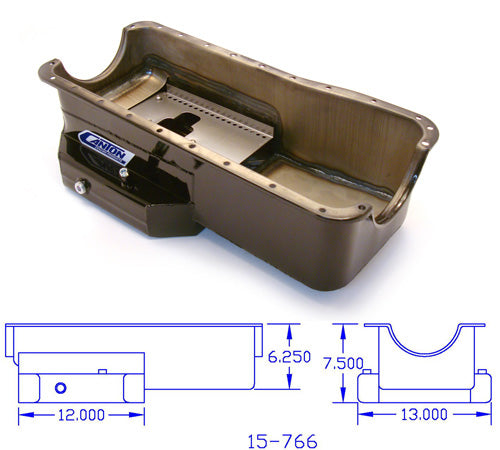

This "T" style rear sump oil pan is designed for Ford 429/460 blocks in Cobras. It has a 7.5? deep, 13? wide by 12? long sump, with an 8 qt system capacity. This pan requires our 15-767 pickup.
  • 8 qt System Capacity
  • Shallow "T" Sump Pan Fully Baffled For Road Race
  • Diamond Shape Road Race Baffle Assembly With Four Trap Doors
  • Crank Scraper
  • Removable Windage/Anti-Slosh Baffle
  • 1/2" NPT Temperature Bung
  • Provision For Our Pan Mounted Dipstick
  • Magnetic Drain Plug
  • Gloss Black Powder Coat Finish for Maximum Durability

Attributes:

  • GTIN: 00887753713520
  • Brand Name: Canton
  • Baffled: Yes
  • Gasket or Seal Included: No
  • Stoke: 4.5 inches
  • Recommended Accessory 7: 88-750 ? Big Block Ford 429-460 Four Piece Oil Pan Gasket
  • Recommended Accessory 6: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T.
  • Recommended Accessory 5: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
  • Recommended Accessory 4: 20-956 - Pickup Mounting Stud for 429-460 Based Engine
  • Recommended Accessory 3: 20-966 - Ford 429-460 Main Support Mounted Windage Tray
  • Recommended Accessory 2: 21-066 - Canton 429-460 Steel Main Support
  • Recommended Accessory 1: 15-767 - Pickup for 15-766 pan and M-84DHV Pump
  • Pickup Included: No
  • Material: 16 Gauge Steel
  • Kicked Out: Yes
  • Hardware Included: No
  • Finish: Black Powdercoat
  • Capacity: 8 Quart System Capacity
  • Feature 9: Gloss Black Powder Coat Finish for Maximum Durability
  • Feature 8: Magnetic Drain Plug
  • Feature 7: Provision For Our Pan Mounted Dipstick
  • Feature 6: 1/2" NPT Temperature Bung
  • Feature 5: Removable Windage/Anti-Slosh Baffle
  • Feature 4: Crank Scraper
  • Feature 3: Diamond Shape Road Race Baffle Assembly With Four Trap Doors
  • Feature 2: Shallow "T" Sump Pan Fully Baffled For Road Race
  • Feature 1: 8 qt System Capacity
  • Drain Plug Included: Yes
  • Dipstick Port: Yes
  • Crank Scraper Included: No
  • Windage Tray Included: No

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 26 x 14 x 10 inches
  • Weight: 16 lb
