Canton 15-774 Oil Pan Big Block Ford Rear T Rear Sump Road Race Pan
$457.00 USD
$548.40
By Canton
SKU: BGTF-15-774

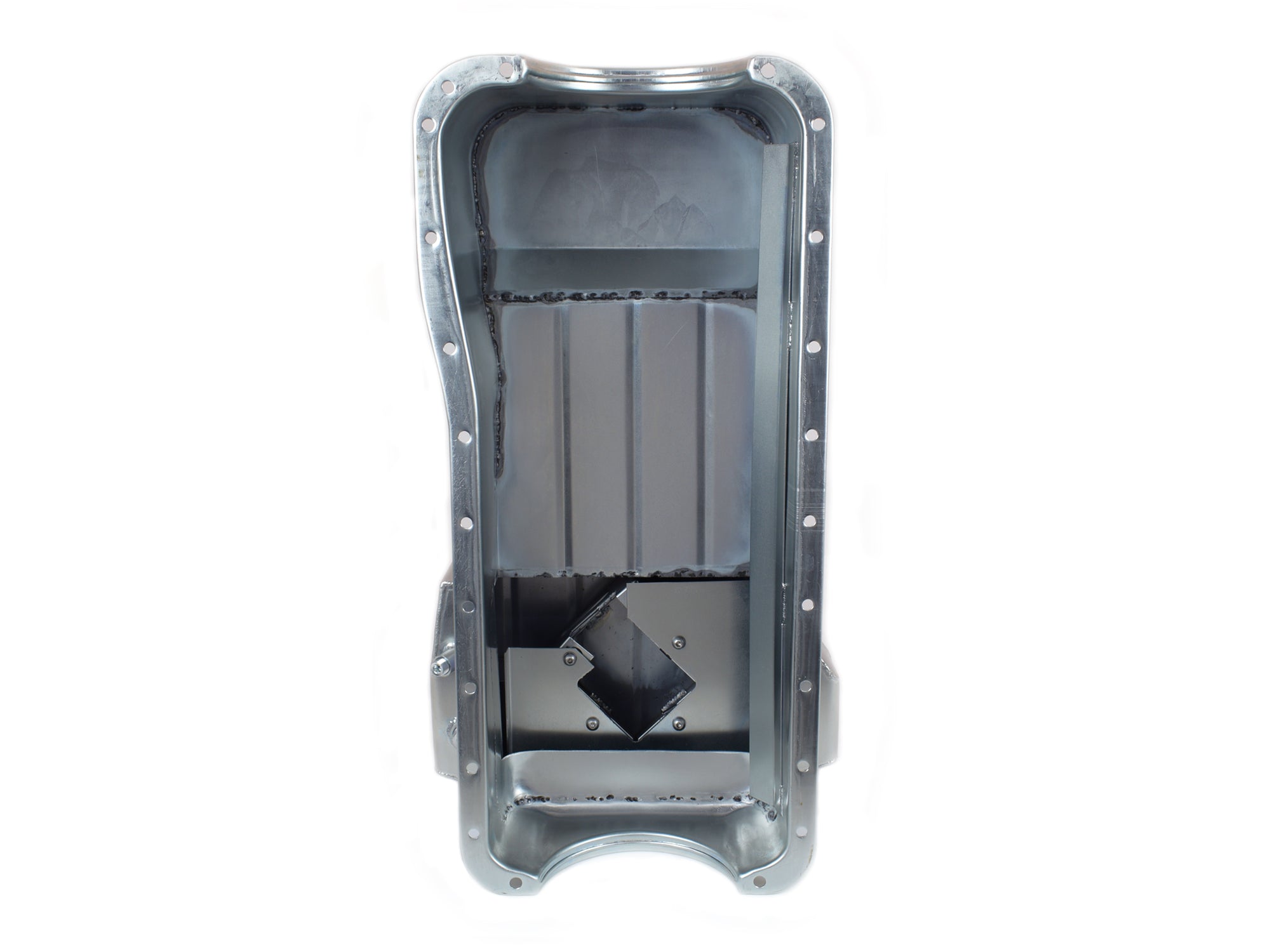

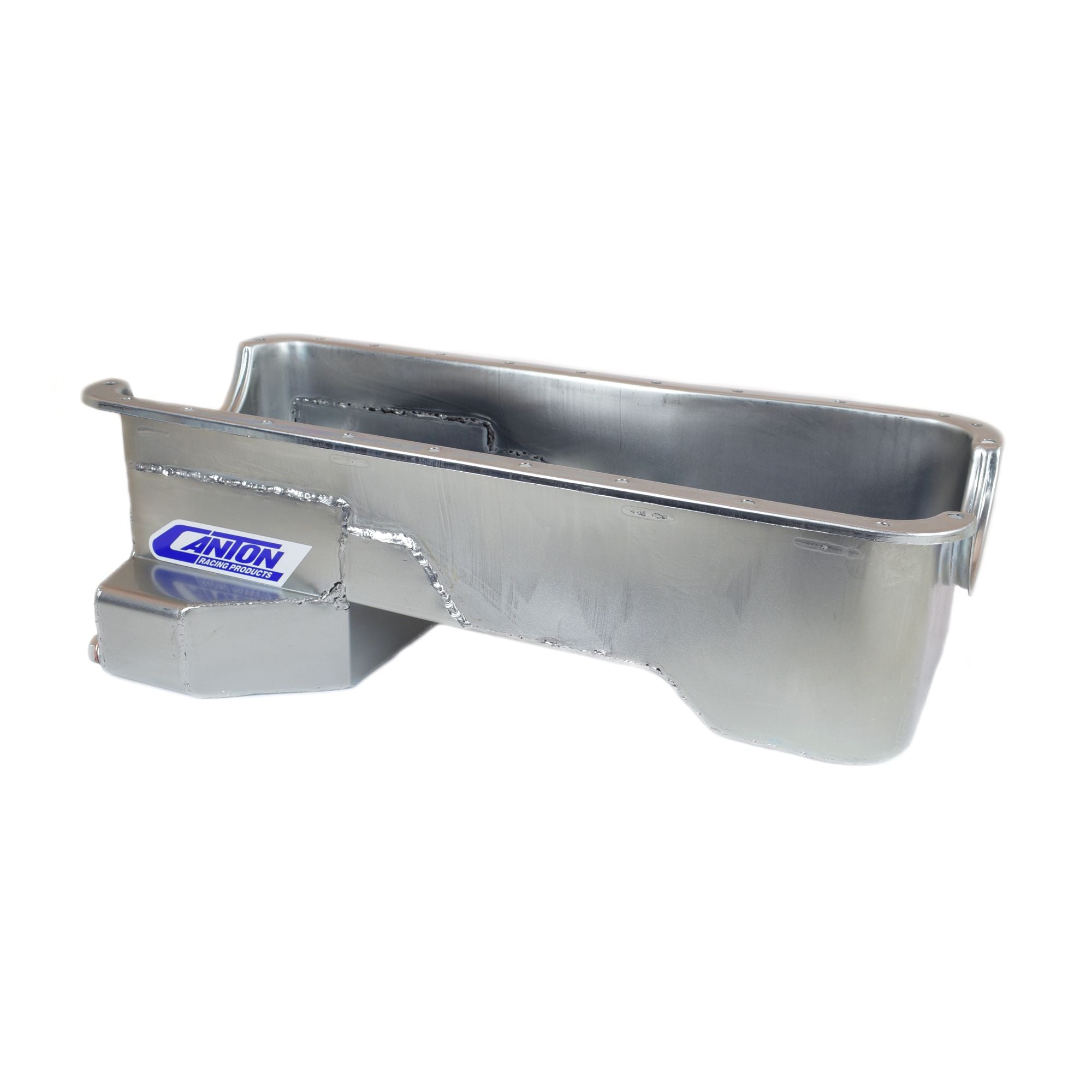

This ?T? style rear sump road race baffled oil pan is designed for Ford 429-460 engines in ?79 and up Mustangs and other rear sump applications, such as Cobra Kits. It has a 7-1/2" deep by 8" long by 13-1/2" wide sump with a 7 quart system capacity. This pan requires our 15-775 pickup & M84DHV Oil pump.
- 7 qt System Capacity
- Diamond Shape Road Race Trap Door Baffle Assembly
- Crank Scraper
- Removable Windage/Anti-Slosh Baffle
- 1/2" NPT Temperature Bung
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Attributes:
- GTIN: 00887753713575
- Brand Name: Canton
- Baffled: Yes
- Hardware Included: No
- Sump Width: 13.5 inches
- Sump Depth: 7.5 inches
- Stoke: 4.5 inches
- Recommended Accessory 5: 88-750 ? Big Block Ford 429-460 Four Piece Oil Pan Gasket
- Recommended Accessory 4: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 3: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 2: 20-956 - Pickup Mounting Stud for 429-460 Based Engines
- Recommended Accessory 1: 15-775 - Pickup
- Pickup Included: No
- Material: 16 Gauge Steel
- Kicked Out: Yes
- Gasket or Seal Included: No
- Capacity: 7 Quart System Capacity
- Finish: Silver Plating
- Feature 7: Magnetic Drain Plug
- Feature 6: Provision For Our Pan Mounted Dipstick
- Feature 5: 1/2" NPT Temperature Bung
- Feature 4: Removable Windage/Anti-Slosh Baffle
- Feature 3: Crank Scraper
- Feature 2: Diamond Shape Road Race Trap Door Baffle Assembly
- Feature 1: 7 qt System Capacity
- Drain Plug Included: Yes
- Dipstick Port: Yes
- Crank Scraper Included: Yes
- Windage Tray Included: No
Extended Information:
- Country of Origin: United States
- Emissions : Released
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
- Weight: 16 lb
PDF:
Pan Install - Standard Part A
