Canton 15-780 Oil Pan For Ford 4.6L 5.4L Street Rear T Sump Pan

$409.00 USD $490.80
By Canton
SKU: BGTF-15-780
Minus Plus
More details Right

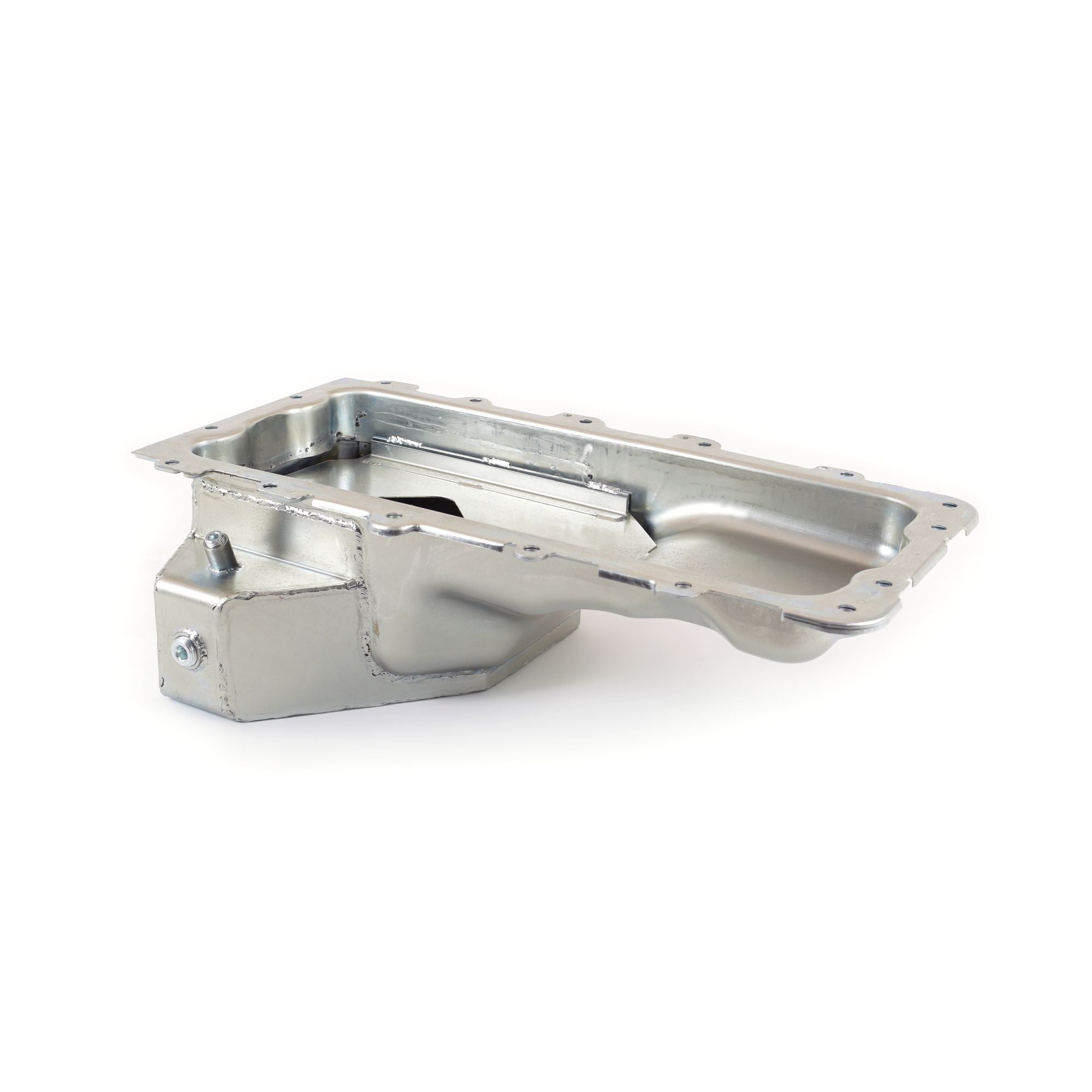

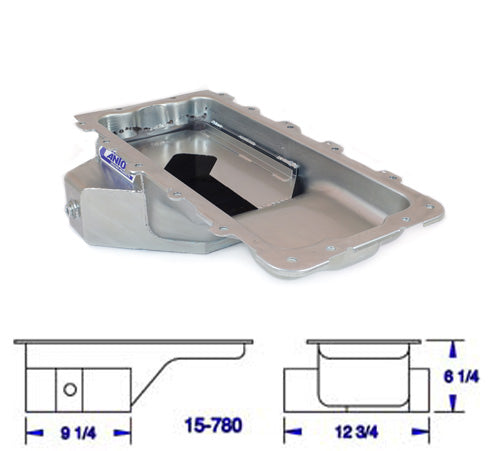

This ?T? style modular rear sump oil pan is designed for Ford 4.6L/5.4L blocks in ?96-?04 & ?05-up Mustangs. It has 6-1/4" deep, 12-3/4" wide by 9-1/4" long sump and a 7 quart system capacity. Use Your OEM pickup for this pan.
  • 7 qt System Capacity
  • Slosh Baffle
  • 1/2" NPT Temperature Bung
  • Magnetic Drain Plug
  • Provision for a pan mounted dipstick

Attributes:

  • GTIN: 00887753713612
  • Brand Name: Canton
  • Baffled: Yes
  • Hardware Included: No
  • Sump Width: 12.75 inches
  • Sump Depth: 6.25 inches
  • Stoke: 106MM
  • Recommended Accessory 2: 88-780 - Modular Ford 4.6L/5.4L One Piece Oil Pan Gasket
  • Recommended Accessory 1: 20-939 - Ford 4.6L/5.4L Screen Windage Tray
  • Pickup Included: No
  • Material: 16 Gauge Steel
  • Kicked Out: Yes
  • Gasket or Seal Included: No
  • Capacity: 7 Quart System Capacity
  • Finish: Silver Plating
  • Feature 4: Magnetic Drain Plug
  • Feature 3: 1/2" NPT Temperature Bung
  • Feature 2: Slosh Baffle
  • Feature 1: 7 qt System Capacity
  • Drain Plug Included: Yes
  • Dipstick Port: No
  • Crank Scraper Included: No
  • Windage Tray Included: No

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 26 x 14 x 10 inches
  • Weight: 14 lb
