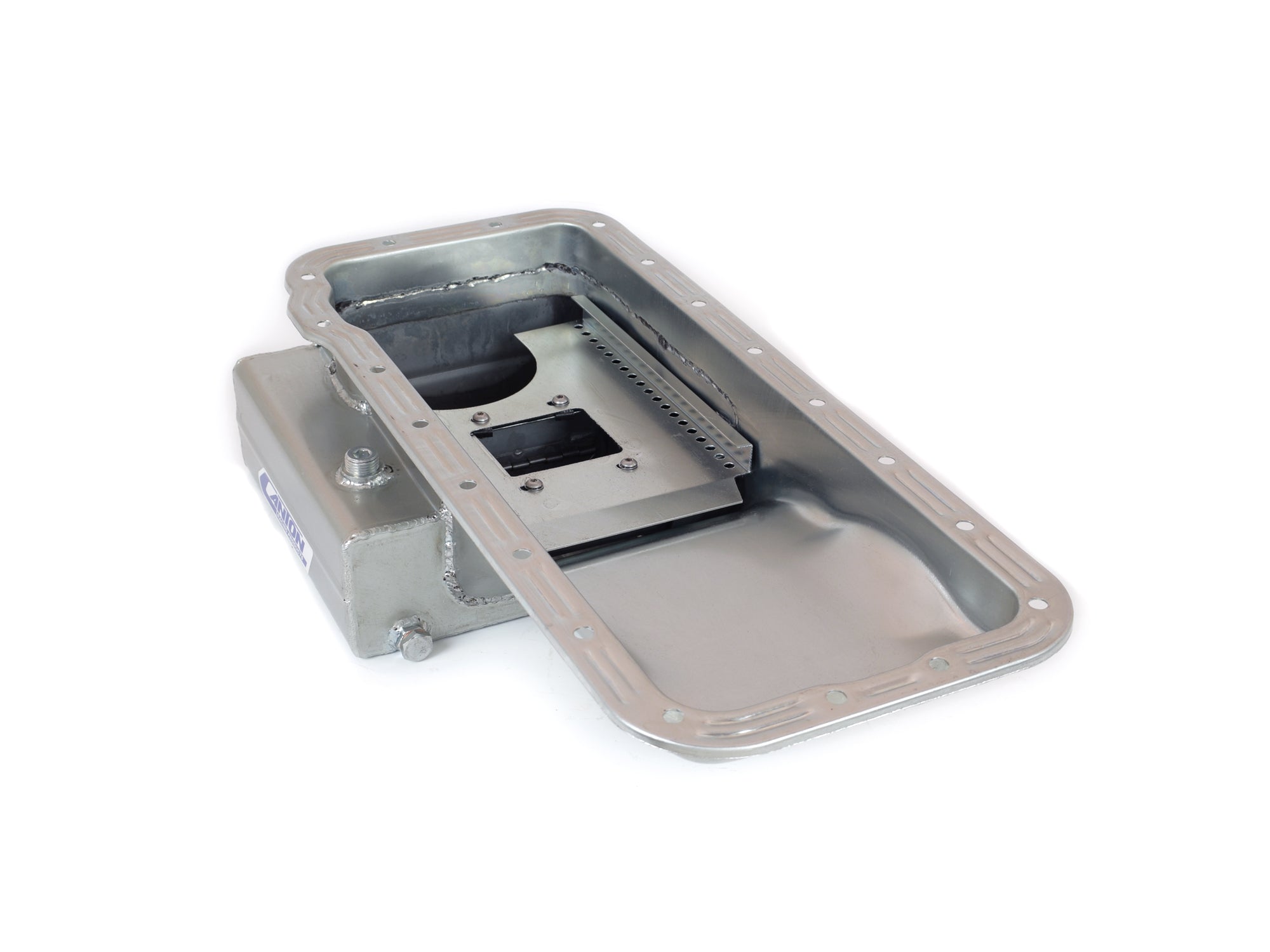

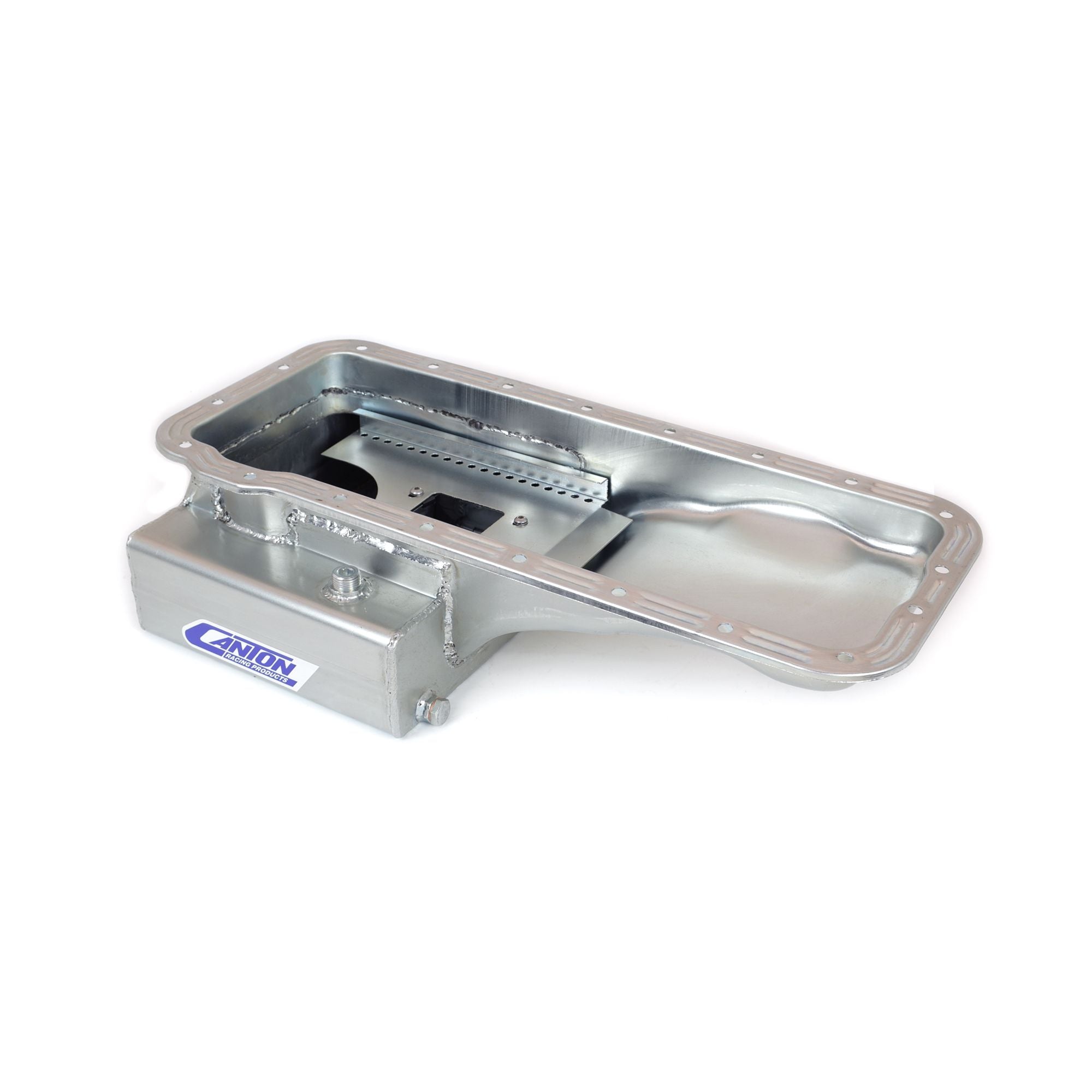

Canton 15-820 Oil Pan For Ford 332-428 FE Front T Sump Road Race Pan

$438.00 USD $525.60
By Canton
SKU: BGTF-15-820
Minus Plus
More details Right
This front sump Ford 332-428FE road race pan is ideal for Mustangs or Cobra Kit Cars. It has a 6" deep, 13" wide by 10" long sump for an 8 quart system capacity. "T" style sump to increase capacity without losing ground clearance. This pan requires our 15-821 pickup.
  • 8 qt System Capacity
  • Diamond Shape Road Race Baffle Assembly With Six Trap Doors
  • Removable Windage/Anti-Slosh Baffle
  • 1/2" NPT Temperature Bung
  • Provision For Our Pan Mounted Dipstick
  • Magnetic Drain Plug

Attributes:

  • GTIN: 00887753713797
  • Brand Name: Canton
  • Baffled: Yes
  • Hardware Included: No
  • Sump Width: 13 inches
  • Sump Depth: 6 inches
  • Stoke: 4.125 inches
  • Recommended Accessory 4: 20-938 - Ford 332-428FE Screen Windage Tray
  • Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
  • Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
  • Recommended Accessory 1: 15-821 - Pickup 3/4" Dia. Inlet
  • Pickup Included: No
  • Material: 16 Gauge Steel
  • Kicked Out: Yes
  • Gasket or Seal Included: No
  • Capacity: 8 Quart System Capacity
  • Finish: Silver Plating
  • Feature 6: Magnetic Drain Plug
  • Feature 5: Provision For Our Pan Mounted Dipstick
  • Feature 4: 1/2" NPT Temperature Bung
  • Feature 3: Removable Windage/Anti-Slosh Baffle
  • Feature 2: Diamond Shape Road Race Baffle Assembly With Six Trap Doors
  • Feature 1: 8 qt System Capacity
  • Drain Plug Included: Yes
  • Dipstick Port: Yes
  • Crank Scraper Included: No
  • Windage Tray Included: No

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 26 x 14 x 10 inches
  • Weight: 16 lb
