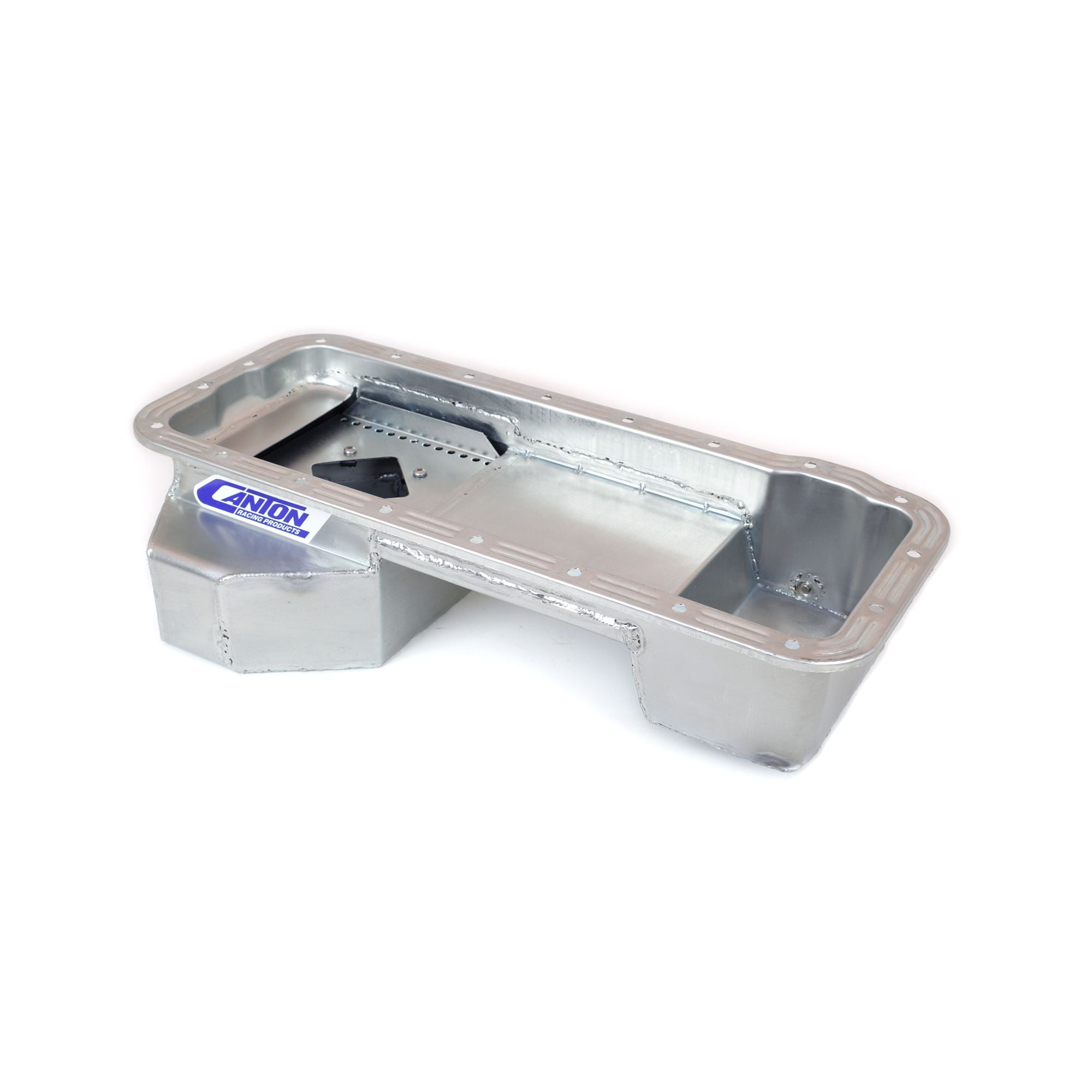

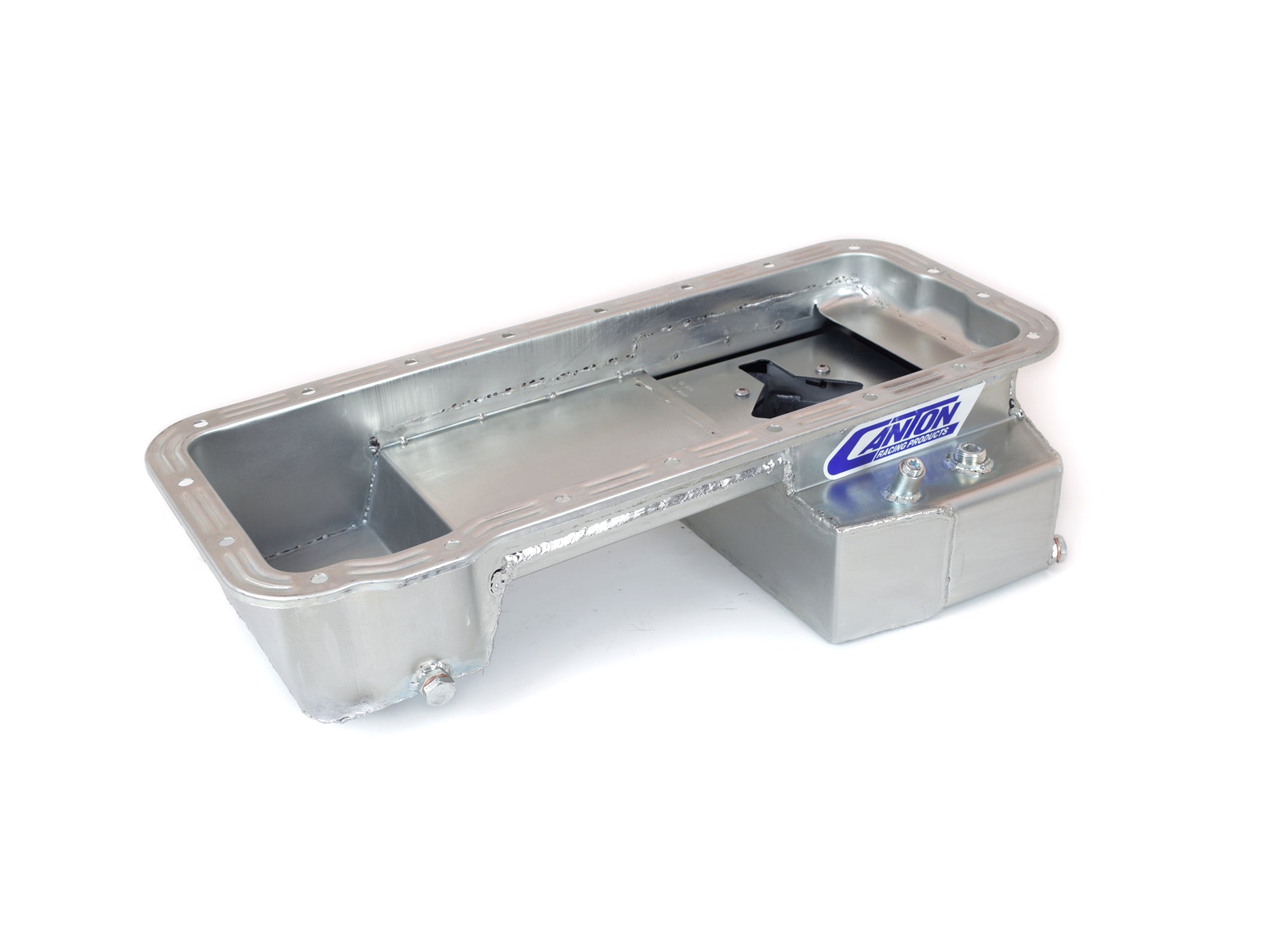

Canton 15-874 Oil Pan For Ford 332-428 FE Rear T Sump Road Race Pan

This "T" style Ford 332-428 FE rear sump oil pan is is designed for early Mustangs with Rack and Pinion conversion front ends installed, or 79 to 93 Mustang, 80-97 T-Birds, or Rear Sump Cobra Kit Cars. It has a 6? deep, 13? wide by 8? long sump with a 7 quart system capacity. This pan requires our 15-875 pickup.

• 7 qt System Capacity
• Diamond Shape Road Race Baffle Assembly With Six Trap Doors
• 1/2" NPT Temperature Bung
• Provision For Our Pan Mounted Dipstick
• Magnetic Drain Plug

Attributes:

• GTIN: 00887753713858
• Brand Name: Canton
• Baffled: Yes
• Kicked Out: Yes
• Stoke: 4.125 inches
• Recommended Accessory 6: 20-953 - Pickup Main Cap Mounting Stud for Ford 332-428 FE Based Engines
• Recommended Accessory 5: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
• Recommended Accessory 4: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
• Recommended Accessory 3: 88-800 ? Ford FE Oil Pan Gasket
• Recommended Accessory 2: 20-938 - Ford 332-428 FE Screen Windage Tray
• Recommended Accessory 1: 15-875 - Pickup for FE 15-784 Pan
• Pickup Included: No
• Material: 16 Gauge Steel
• Hardware Included: No
• Capacity: 7 Quart System Capacity
• Gasket or Seal Included: No
• Finish: Silver Plating
• Feature 5: Magnetic Drain Plug
• Feature 4: Provision For Our Pan Mounted Dipstick
• Feature 3: 1/2" NPT Temperature Bung
• Feature 2: Diamond Shape Road Race Baffle Assembly With Six Trap Doors
• Feature 1: 7 qt System Capacity
• Drain Plug Included: Yes
• Dipstick Port: Yes
• Crank Scraper Included: No
• Windage Tray Included: No

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 26.5 x 13.25 x 10.25 inches
• Weight: 16.1 lb
