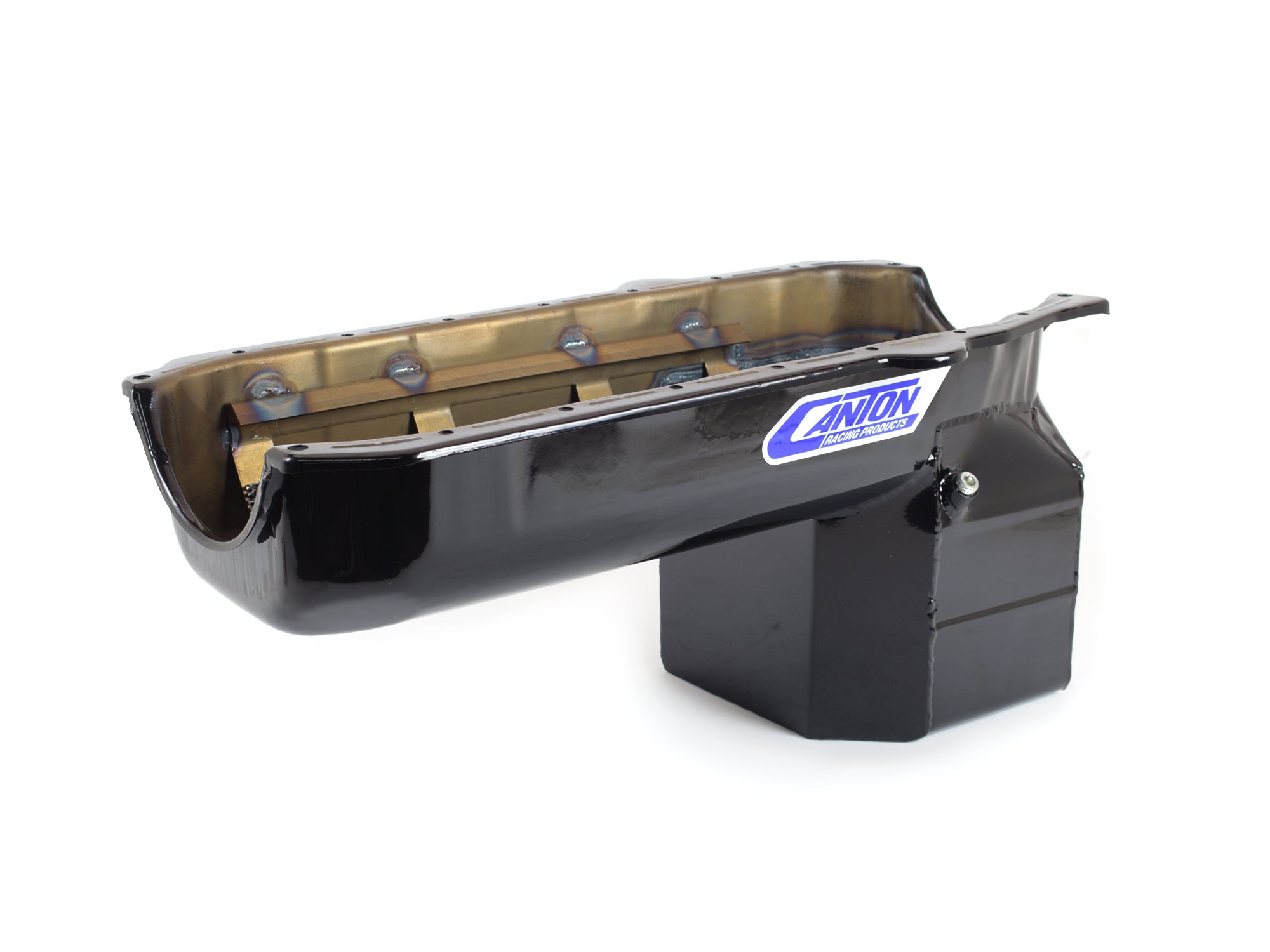

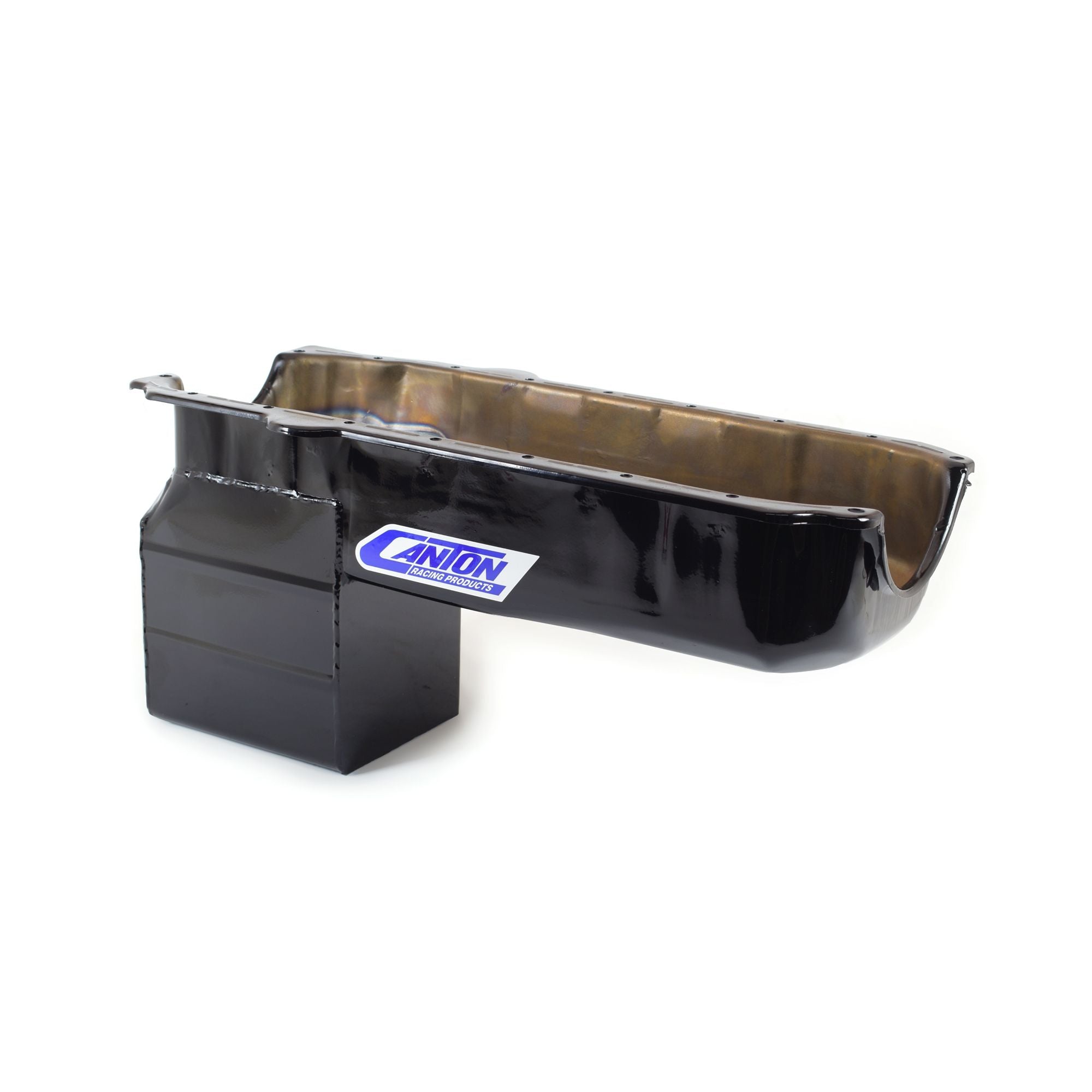

Canton 16-100 Oil Pan Small Block Chevy S10 Truck Conversion Black Powder Coat

This SBC S-10 V-8 conversion oil pan is for pre-'86 blocks. It is designed to install a Chevy small block into the popular S-10 / S-15 pickup & Blazer 4x4 chassis when used in conjunction with Hooker Mount #12610 and Hooker Headers #2839. The 10" deep sump gives a 7 quart system capacity. This pan requires a M210S or M211S pickup.

• Designed for 5.0 Coyote Blocks
• Diamond Shape Road Race Baffle Assembly With Four Trap Doors
• Removable Windage/Anti-Slosh Baffle
• 1/2" NPT Temperature Bung
• 20mm Bung for low Oil Warning Sender
• Made In USA
• Tig Welded

Attributes:

• GTIN: 00887753714077
• Brand Name: Canton
• Baffled: Yes
• Hardware Included: No
• Sump Width: 7.75 inches
• Sump Depth: 10 inches
• Stoke: 3.875 inches
• Recommended Accessory 3: 88-100 - SBC Pre ?85 Oil Pan Gasket
• Recommended Accessory 2: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
• Recommended Accessory 1: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
• Pickup Included: No
• Material: Steel
• Kicked Out: Yes
• Gasket or Seal Included: No
• Capacity: 7 Quart System Capacity
• Finish: Black Powdercoat
• Feature 6: Magnetic Drain Plug
• Feature 5: Provision For Our Pan Mounted Dipstick
• Feature 4: Built In Screen Windage Tray
• Feature 3: Slosh Baffle
• Feature 2: Crank Scraper
• Feature 1: 7 qt System Capacity
• Drain Plug Included: Yes
• Dipstick Port: Yes
• Crank Scraper Included: Yes
• Windage Tray Included: Yes

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 26 x 14 x 10 inches
• Weight: 15 lb
