Canton 16-870 Oil Pan Ford 332 428 FE Ford Deep Rear Sump Truck Oil Pan Black

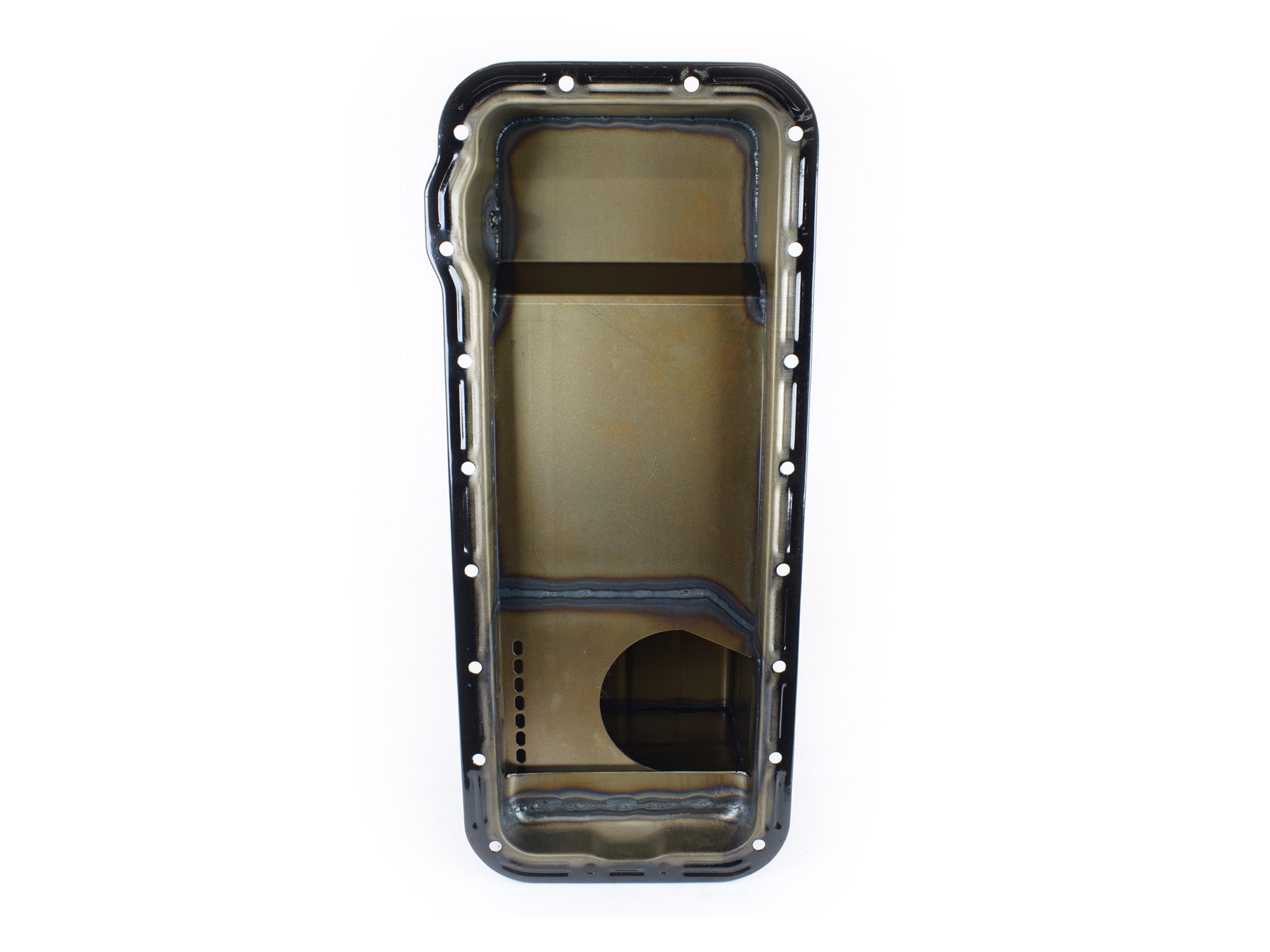

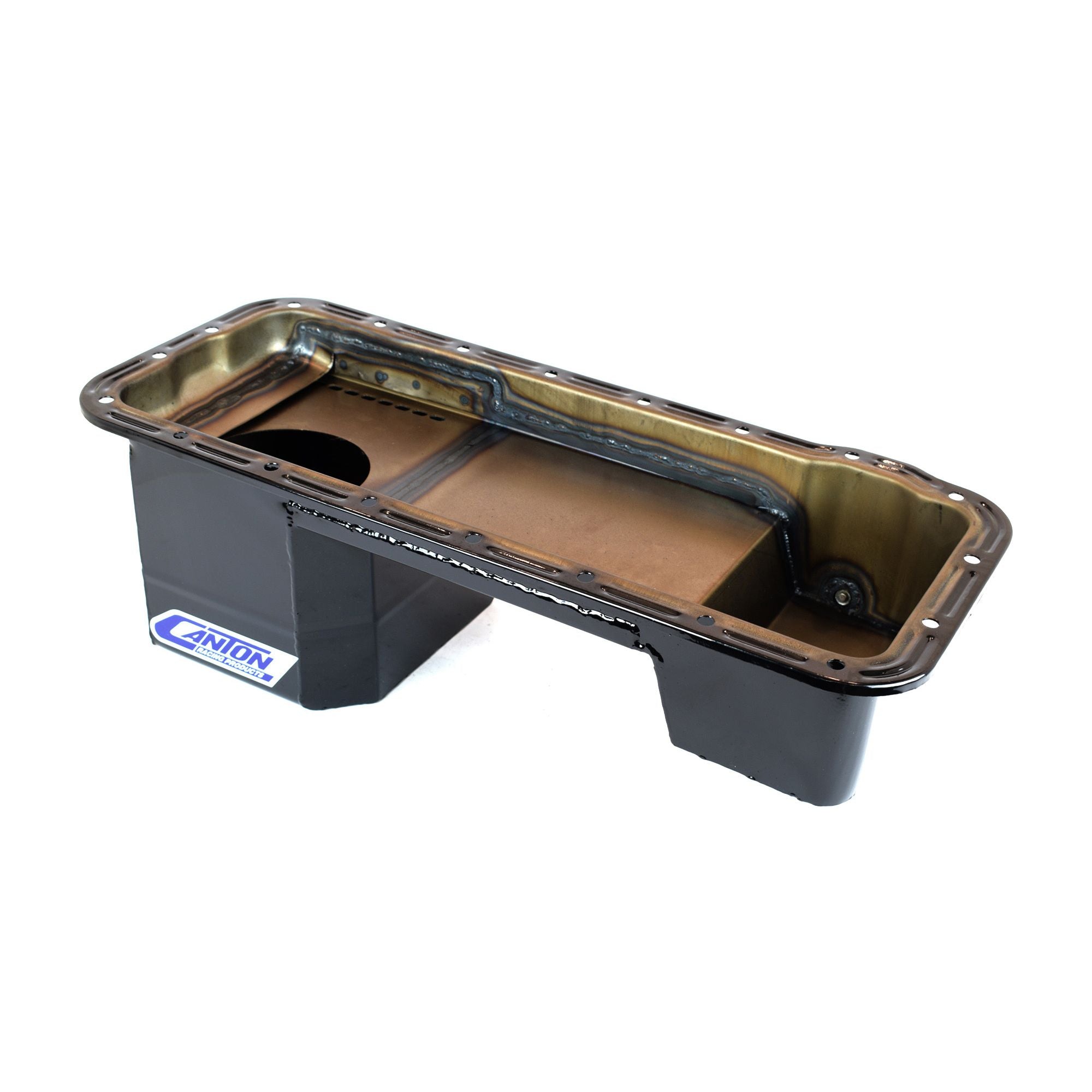

This deep rear sump pan is designed for increased oil capacity and oil control for Ford 332-428 FE truck applications. It can also be used to install FE engines in ?79 and up Mustang and T-Bird applications. Check the dimensions of your application to ensure proper fit. It has an 8" deep by 7-1/2" long sump, with a 7 quart system capacity. This pan requires our 16-871 pickup.

• 7 qt System Capacity
• Slosh Baffle
• Provision For Our Pan Mounted Dipstick
• Magnetic Drain Plug

Attributes:

• GTIN: 00887753714268
• Brand Name: Canton
• Baffled: Yes
• Kicked Out: No
• Sump Depth: 8 inches
• Stoke: 4.125 inches
• Recommended Accessory 5: 88-800 ? Big Block Ford 390-428 FE One Piece Oil Pan Gasket
• Recommended Accessory 4: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
• Recommended Accessory 3: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
• Recommended Accessory 2: 20-938 - Ford 332-428 FE Screen Windage Tray
• Recommended Accessory 1: 16-871 - Pickup with 3/4" Inlet
• Pickup Included: No
• Material: 14 Gauge Steel
• Hardware Included: No
• Capacity: 7 Quart System Capacity
• Gasket or Seal Included: No
• Finish: Black Gloss Powdercoat
• Feature 4: Magnetic Drain Plug
• Feature 3: Provision For Our Pan Mounted Dipstick
• Feature 2: Slosh Baffle
• Feature 1: 7 qt System Capacity
• Drain Plug Included: Yes
• Dipstick Port: Yes
• Crank Scraper Included: No
• Windage Tray Included: No

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 26 x 14 x 10 inches
• Weight: 15 lb
