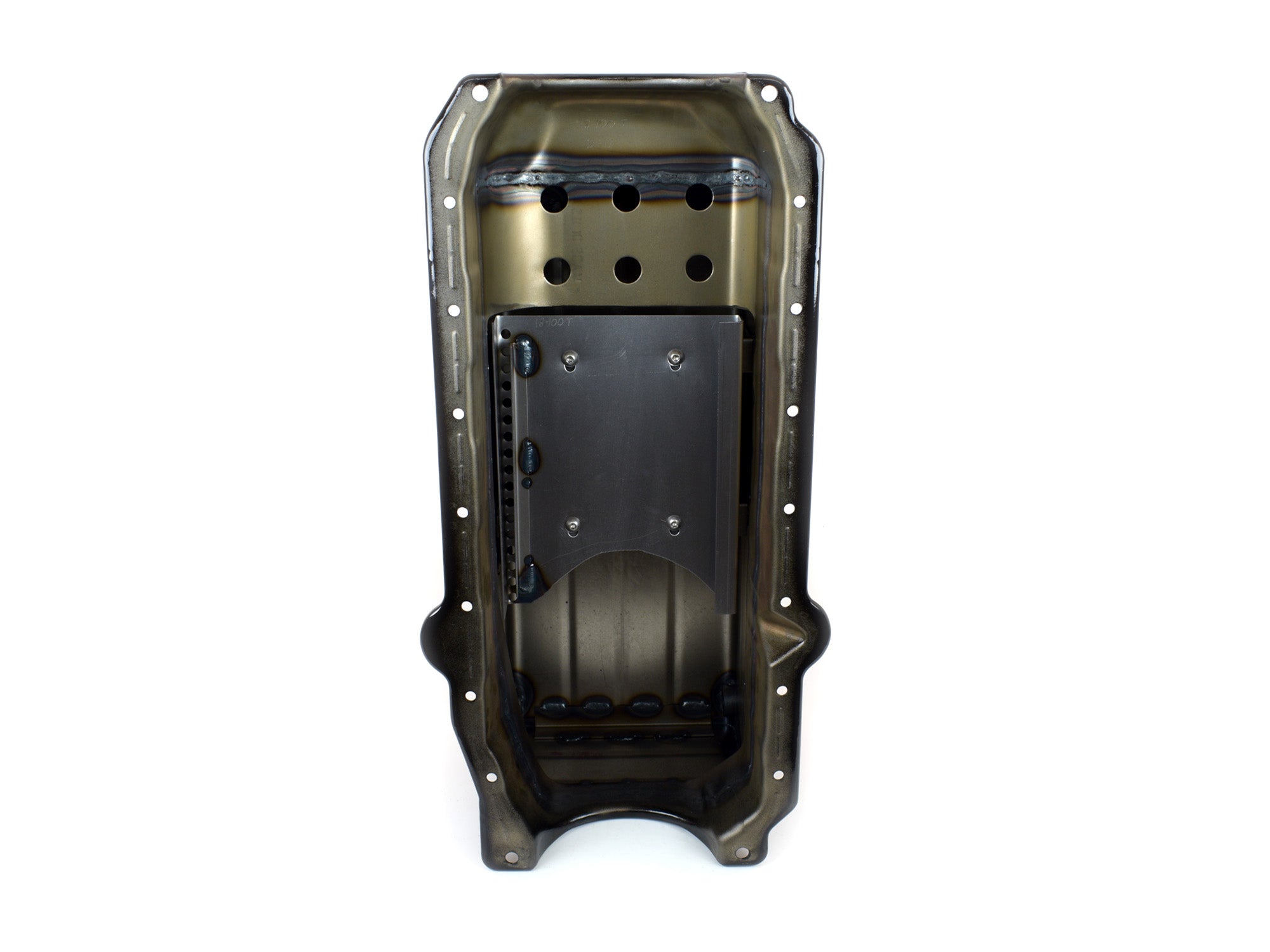

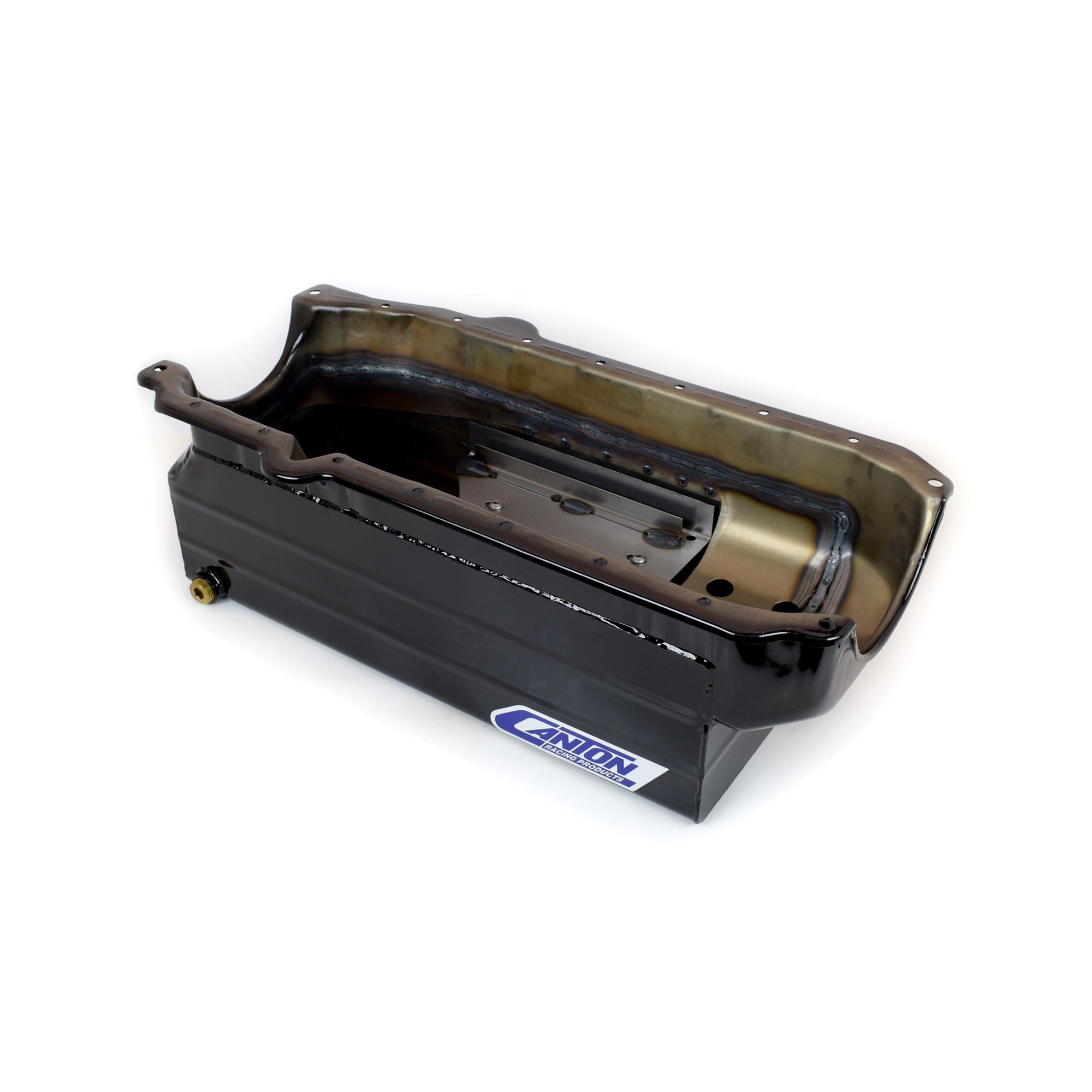

Canton 18-100T Oil Pan Small Block Chevy Full Length Sump Marine 1 Piece Seal
$525.00 USD
$630.00
By Canton
SKU: BGTF-18-100T
This SBC High Capacity Marine Pan is for '86 and newer blocks with a one piece seal. With a deep 7-1/2" full length sump it holds 8 quarts of oil for greater oil capacity. Designed for applications with the pickup at the flywheel end of the engine. This pan requires our #18-101 pickup.
- 8 qt Pan Capacity
- 14 ga. Steel Construction
- Double Trap Door Baffles
- Removable Windage/Anti-Slosh Baffle
- 1/2" NPT Drain Fittings
- Provision For our Pan Mounted Dipstick
- Powder Coating & Brass Plugs For Corrosion Protection
Attributes:
- GTIN: 00887753714299
- Brand Name: Canton
- Baffled: Yes
- Hardware Included: No
- Sump Width: 7.5 inches
- Sump Depth: 7.5 inches
- Stoke: 3.875 inches
- Recommended Accessory 4: 88-100T - SBC 86+ Oil Pan Gasket
- Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 1: 18-101 - Stock Replacement Pickup for SBC Oil Pump
- Pickup Included: No
- Material: 14 Gauge Steel
- Kicked Out: No
- Gasket or Seal Included: No
- Capacity: 8 Quart System Capacity
- Finish: Black Gloss Powdercoat
- Feature 7: Powder Coating & Brass Plugs For Corrosion Protection
- Feature 6: Provision For our Pan Mounted Dipstick
- Feature 5: 1/2" NPT Drain Fittings
- Feature 4: Removable Windage/Anti-Slosh Baffle
- Feature 3: Double Trap Door Baffles
- Feature 2: 14 ga. Steel Construction
- Feature 1: 8 qt Pan Capacity
- Drain Plug Included: Yes
- Dipstick Port: Yes
- Crank Scraper Included: No
- Windage Tray Included: No
Extended Information:
- Country of Origin: United States
- Emissions : Released
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
- Weight: 20 lb
PDF:
Pan Install - Standard Part B
