Canton 18-302 Oil Pan Big Block Chevy Mark 5 Gen 6 Full Length Sump Marine Pan

$580.00 USD $696.00
By Canton
SKU: BGTF-18-302
Minus Plus
More details Right

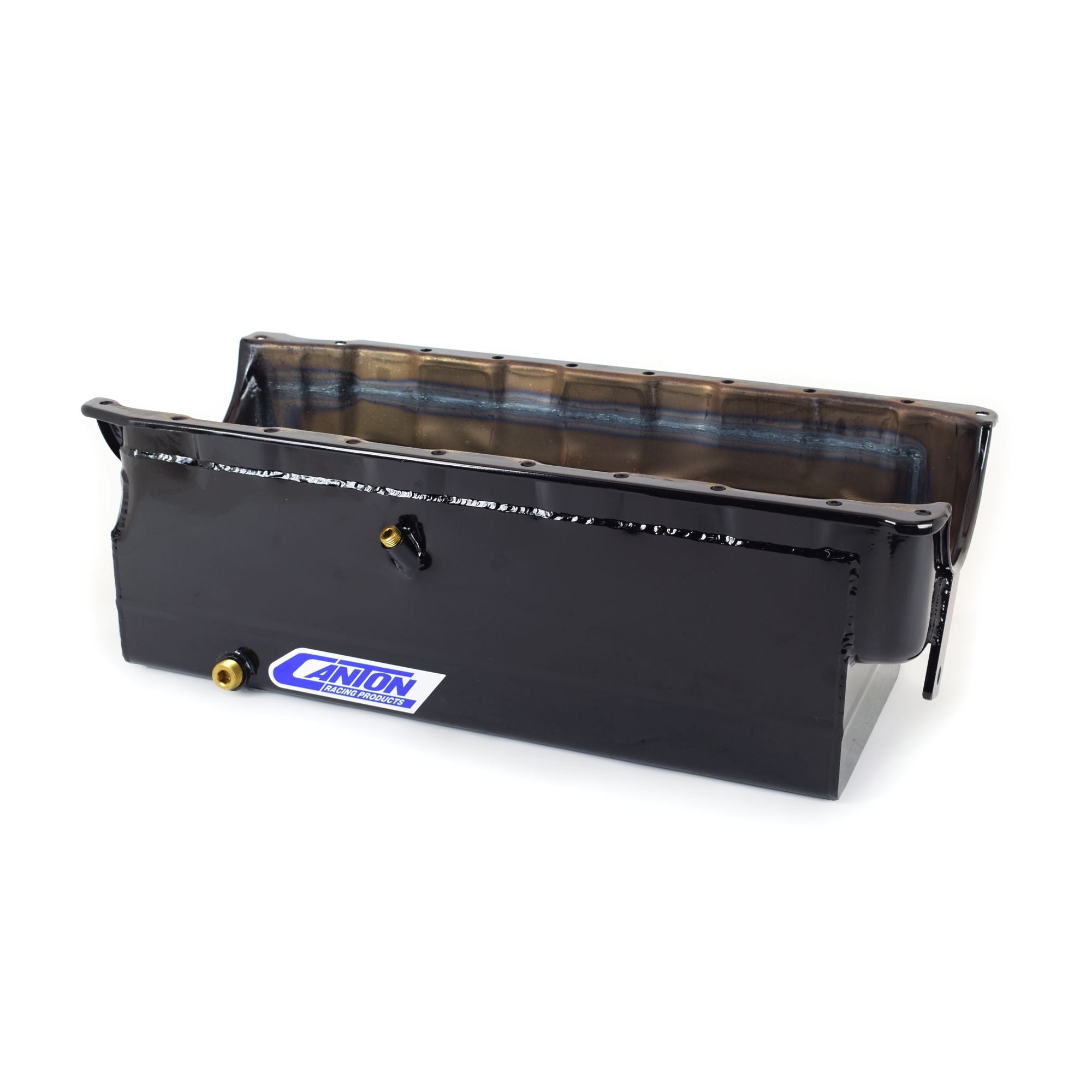

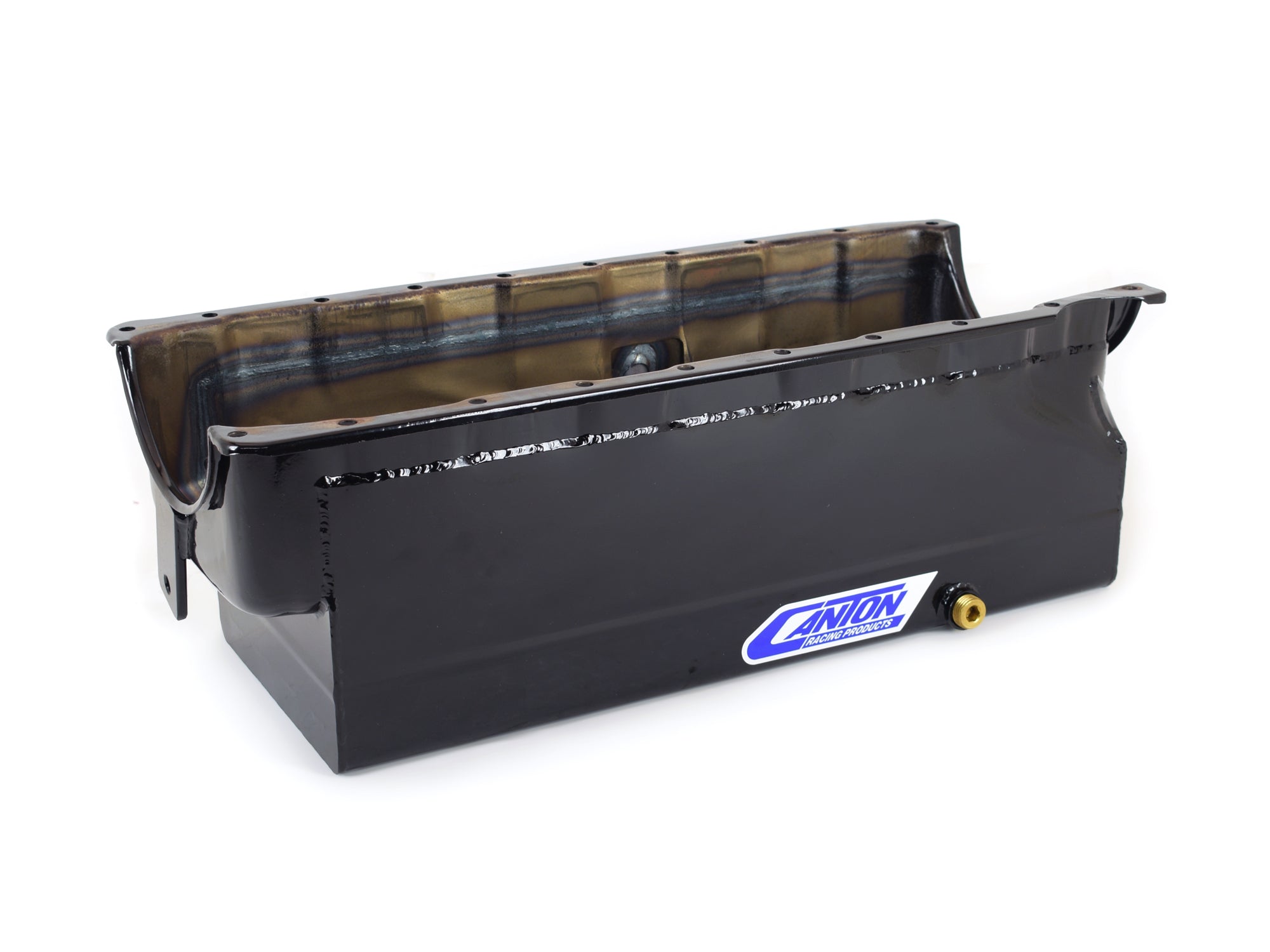

This BBC High Capacity Marine Pan for Mark V Big Blocks with one piece rear seal. With a deep 8" full length sump it holds 9 quarts of oil for greater oil capacity. Designed for applications with the pickup at the flywheel end of the engine. This pan requires our 18-301 pickup.
  • 14 ga. Steel Construction
  • Double Trap Door Baffles
  • Removable Windage/Anti-Slosh Baffle
  • 1/2" NPT Drain Fittings
  • Provision For our Pan Mounted Dipstick
  • Powder Coating & Brass Plugs For Corrosion Protection

Attributes:

  • GTIN: 00887753714336
  • Brand Name: Canton
  • Baffled: Yes
  • Gasket or Seal Included: No
  • Sump Depth: 8 inches
  • Stoke: 4.5 inches
  • Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
  • Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
  • Recommended Accessory 1: 18-301 - Our Stock Replacement Pickup
  • Pickup Included: No
  • Material: 14 Gauge Steel
  • Kicked Out: No
  • Hardware Included: No
  • Finish: Black Gloss Powdercoat
  • Capacity: 9 Quart System Capacity
  • Feature 6: Powder Coating & Brass Plugs For Corrosion Protection
  • Feature 5: Provision For our Pan Mounted Dipstick
  • Feature 4: 1/2" NPT Drain Fittings
  • Feature 3: Removable Windage/Anti-Slosh Baffle
  • Feature 2: Double Trap Door Baffles
  • Feature 1: 14 ga. Steel Construction
  • Drain Plug Included: Yes
  • Dipstick Port: Yes
  • Crank Scraper Included: No
  • Windage Tray Included: No

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 26 x 14 x 10 inches
  • Weight: 20 lb
