$119.00 off

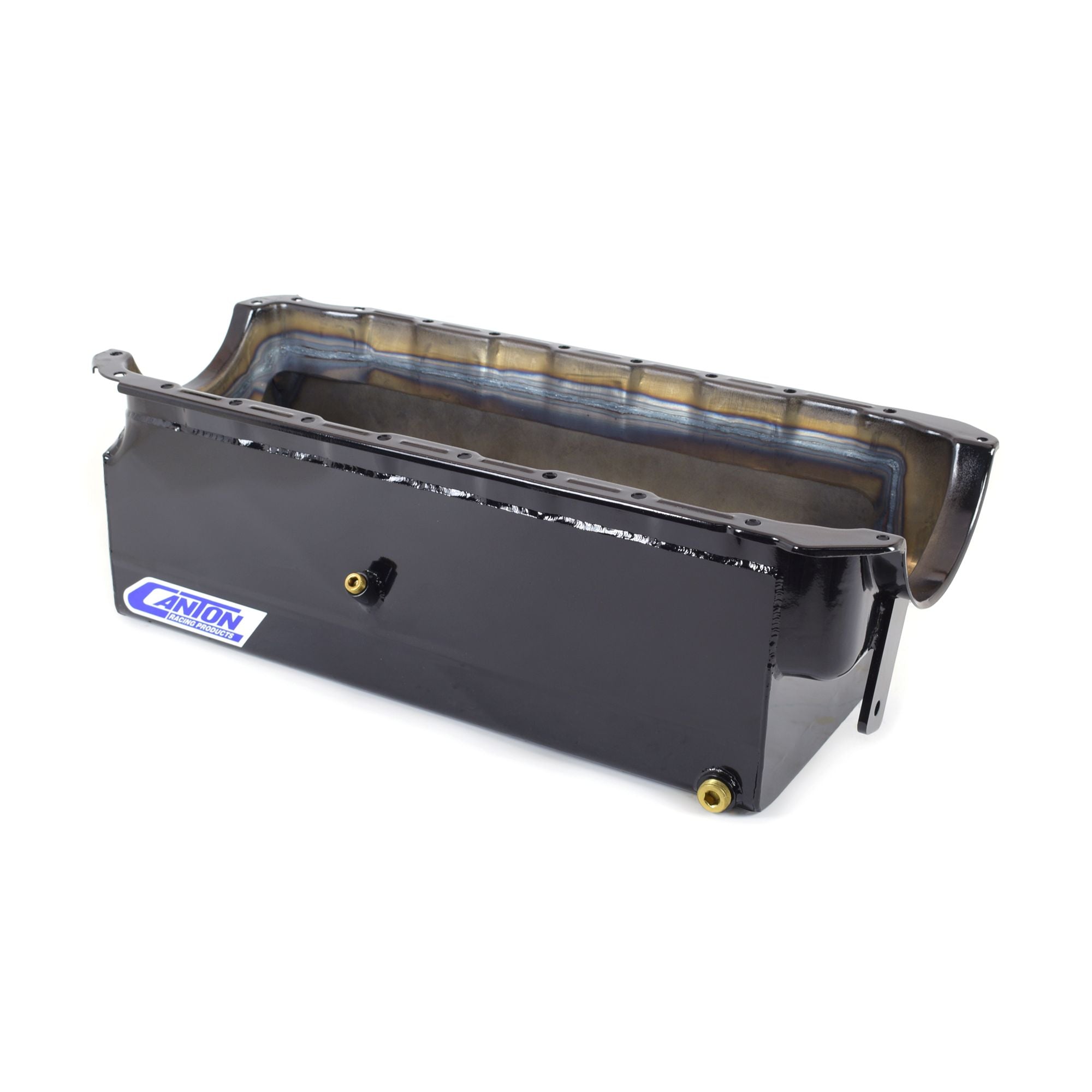

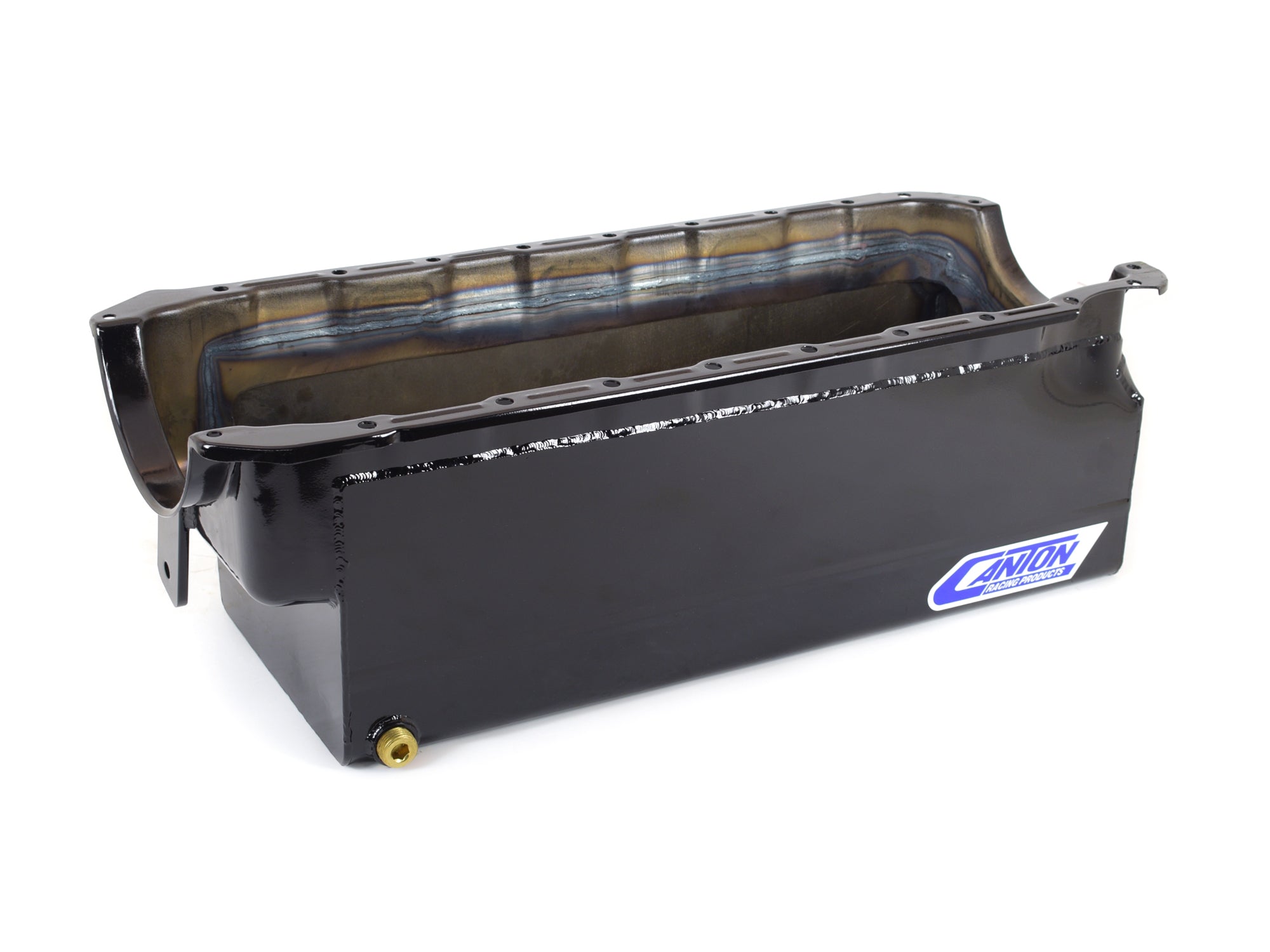

Canton 18-310 Oil Pan For Big Block Chevy Mark 4 Marine Reverse Mount Oil Pan

$595.00 USD $714.00
By Canton
SKU: BGTF-18-310
Minus Plus
More details Right
This reverse mount marine pan is for MK IV Big Block Chevys. Pan is 8? deep and holds 9 quarts of oil. It is designed with a front of engine pickup compartment with double trap doors for oil control in reverse mount engine applications. This pan requires our 18-311 pickup.
  • 9 qt Pan Capacity
  • 14 ga. Steel Construction
  • Front of engine pickup compartment for reverse mount applications
  • Double Trap Door Baffles
  • Removable Windage/Anti-Slosh Baffle
  • 1/2" NPT Drain Fittings
  • Provision For our Pan Mounted Dipstick
  • Powder Coating & Brass Plugs For Corrosion Protection

Attributes:

  • GTIN: 00887753714343
  • Brand Name: Canton
  • Baffled: Yes
  • Finish: Black Gloss Powdercoat
  • Stoke: 4.5 inches
  • Recommended Accessory 4: 88-300 ? BBC Mark IV Oil Pan Gasket
  • Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
  • Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
  • Recommended Accessory 1: 18-311 - Pickup for 18-310/18-312 Reverse Mount Marine Pan
  • Pickup Included: No
  • Material: 14 Gauge Steel
  • Kicked Out: Yes
  • Hardware Included: No
  • Gasket or Seal Included: No
  • Feature 8: Powder Coating & Brass Plugs For Corrosion Protection
  • Capacity: 9 Quart System Capacity
  • Feature 7: Provision For our Pan Mounted Dipstick
  • Feature 6: 1/2" NPT Drain Fittings
  • Feature 5: Removable Windage/Anti-Slosh Baffle
  • Feature 4: Double Trap Door Baffles
  • Feature 3: Front of engine pickup compartment for reverse mount applications
  • Feature 2: 14 ga. Steel Construction
  • Feature 1: 9 qt Pan Capacity
  • Drain Plug Included: Yes
  • Dipstick Port: Yes
  • Crank Scraper Included: No
  • Windage Tray Included: No

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 26.5 x 13.25 x 10.25 inches
  • Weight: 22.3 lb
