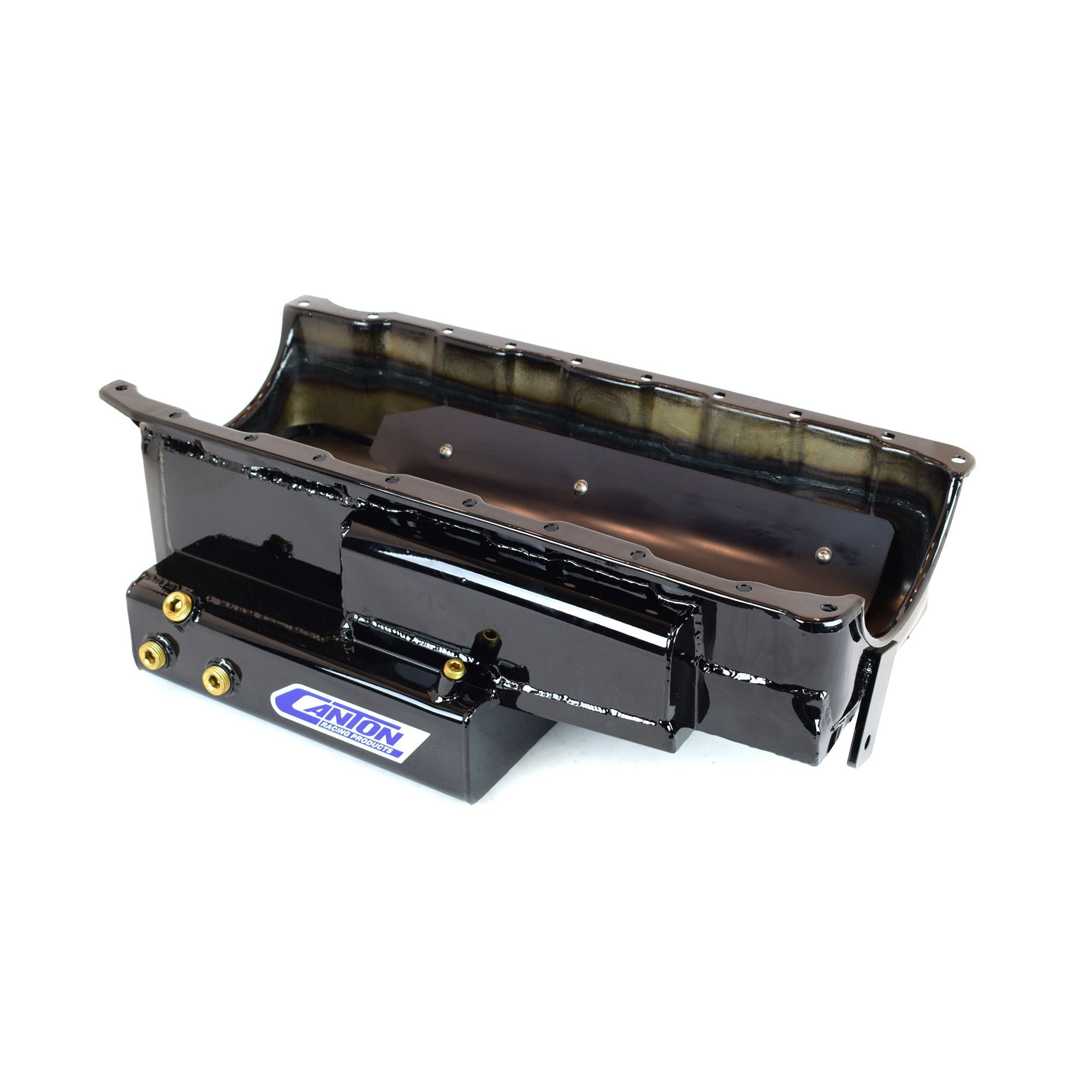

Canton 18-366 Oil Pan Big Block Chevy Mark5 Gen6 Recovery Power Pouch Marine Pan

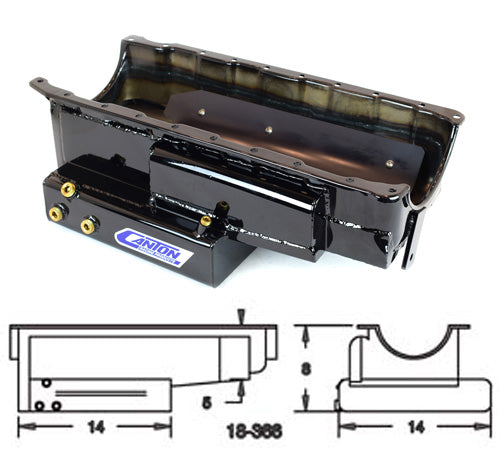

This extra high capacity ?T? sump is for for Mark V style Big Block Chevys. The 8" deep by 14" long by 14" wide sump holds 10 quarts of oil. The pan is angled in the front for improved drain back & is notched for a sea pump. Note: These pans have been REDESIGNED to clear O.E.M. marine starters with a 168 tooth flywheel. This pan requires our 18-365 pickup.

• 10 qt Pan Capacity
• 14 ga. Steel Construction
• Six Trap Door Baffles
• Oil Recovery Pouch
• Crank Scraper
• Bolt In Slosh Baffle
• Built In Louvered Windage Tray
• Three 1/2" NPT Bungs
• Provision For our Pan Mounted Dipstick
• Powder Coating & Brass Plugs For Corrosion Protection

Attributes:

• GTIN: 00887753714411
• Brand Name: Canton
• Baffled: Yes
• Finish: Black Gloss Powdercoat
• Sump Width: 14 inches
• Sump Depth: 8 inches
• Stoke: 4.5 inches
• Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
• Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
• Recommended Accessory 1: 18-365 - Pickup BBC Oil Pumps
• Pickup Included: No
• Material: 14 Gauge Steel
• Kicked Out: Yes
• Hardware Included: No
• Gasket or Seal Included: No
• Feature 9: Provision For our Pan Mounted Dipstick
• Capacity: 10 Quart System Capacity
• Feature 8: Three 1/2" NPT Bungs
• Feature 7: Built In Louvered Windage Tray
• Feature 6: Bolt In Slosh Baffle
• Feature 5: Crank Scraper
• Feature 4: Oil Recovery Pouch
• Feature 3: Six Trap Door Baffles
• Feature 2: 14 ga. Steel Construction
• Feature 10: Powder Coating & Brass Plugs For Corrosion Protection
• Feature 1: 10 qt Pan Capacity
• Drain Plug Included: Yes
• Dipstick Port: Yes
• Crank Scraper Included: No
• Windage Tray Included: Yes

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24 x 16 x 10 inches
• Weight: 27 lb
