$105.80 off

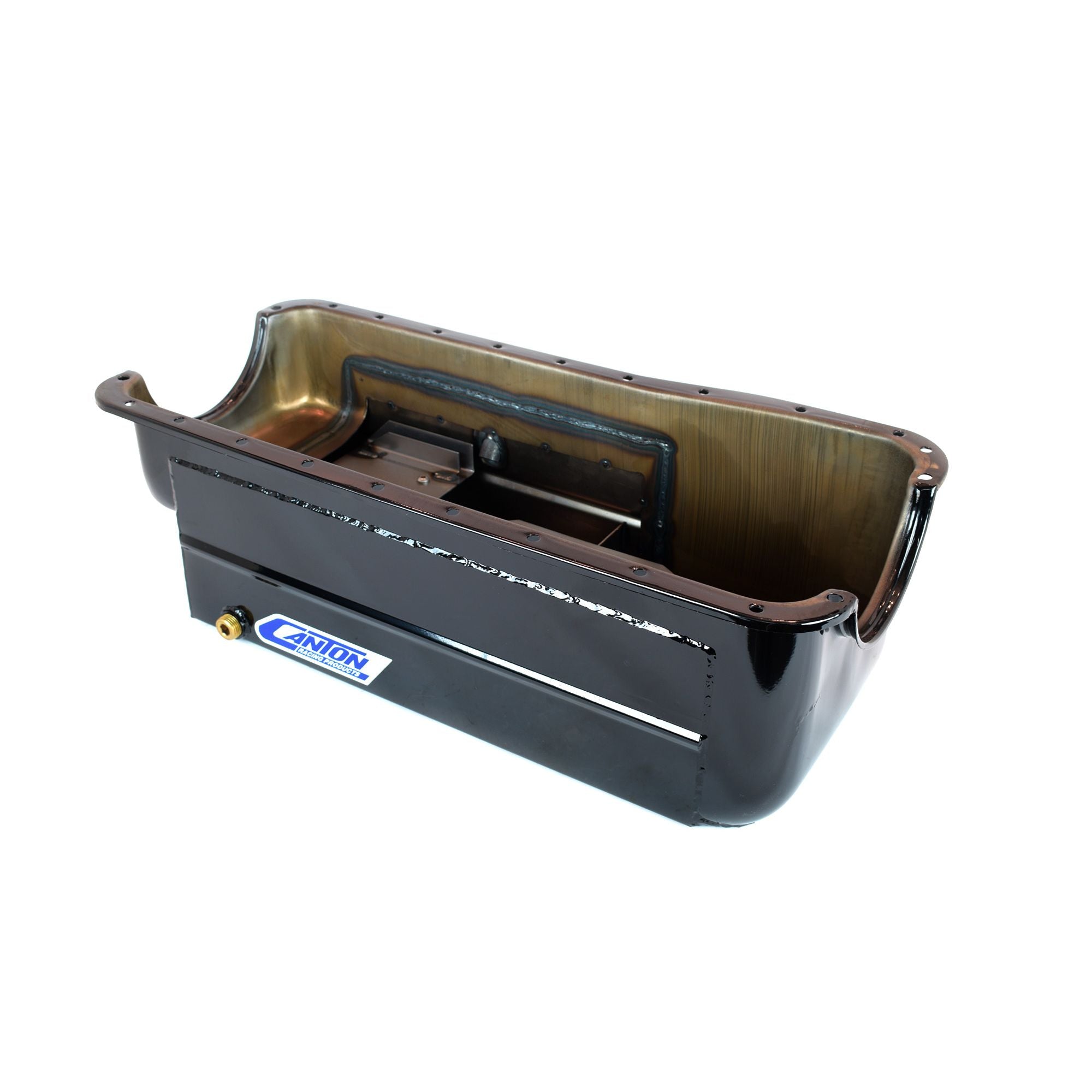

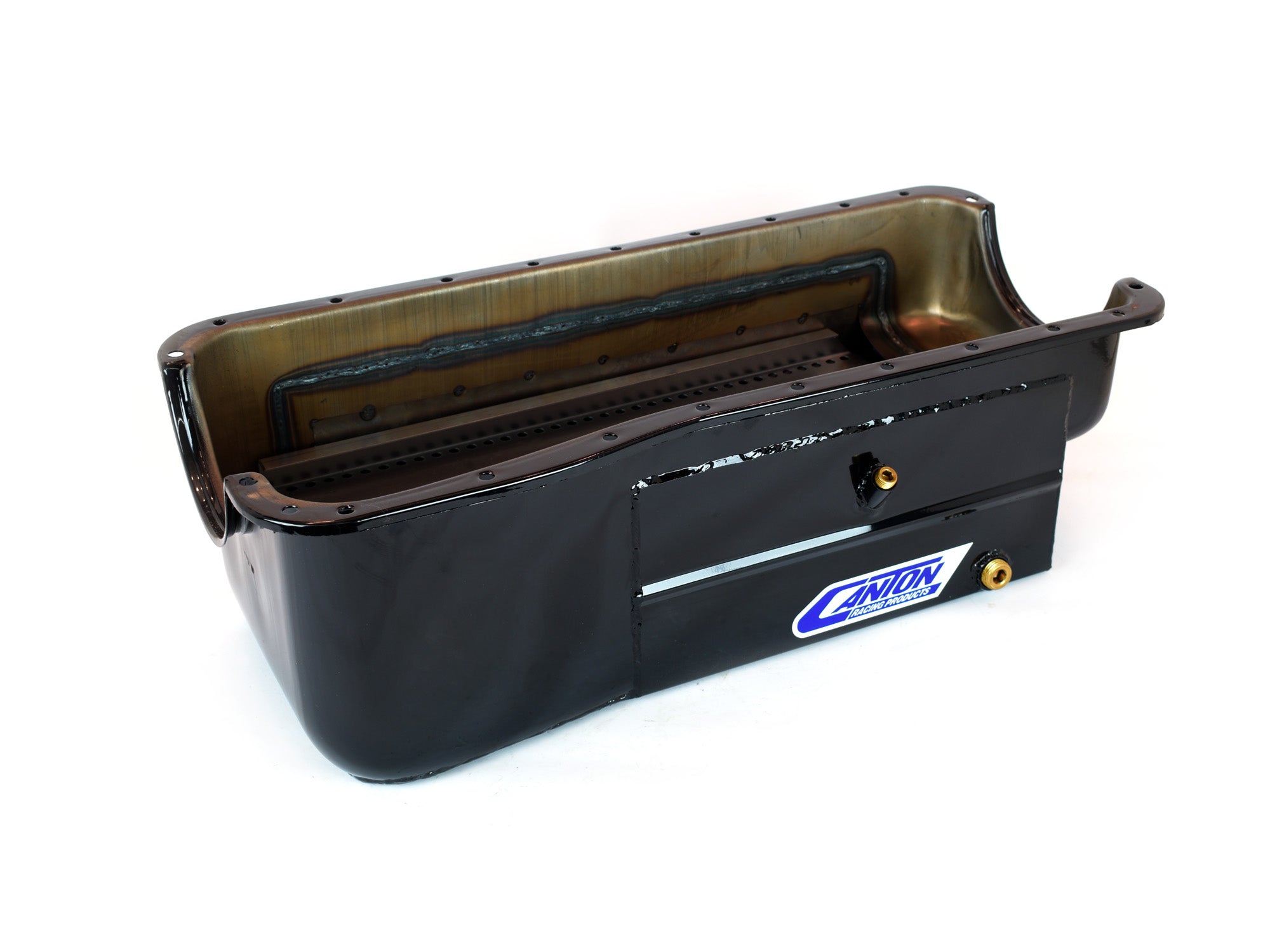

Canton 18-760 Oil Pan For Big Block Ford 460 Full Length Sump Marine Oil Pan

$529.00 USD $634.80
By Canton
SKU: BGTF-18-760
Minus Plus
More details Right
This stock depth 7-3/4" deep full length sump holds 8 quarts of oil for greater oil capacity. Designed for applications with the pickup at the flywheel end of the engine. This pan requires our 18-761 pickup.
  • 8 qt Pan Capacity
  • 14 ga. Steel Construction
  • Double Trap Door Baffles
  • Removable Windage/Anti-Slosh Baffle
  • 1/2" NPT Drain Fitting
  • Provision For our Pan Mounted Dipstick
  • Powder Coating & Brass Plugs For Corrosion Protection

Attributes:

  • GTIN: 00887753714480
  • Brand Name: Canton
  • Baffled: Yes
  • Gasket or Seal Included: No
  • Sump Depth: 7.75 inches
  • Stoke: 4.5 inches
  • Recommended Accessory 4: 88-750 ? Big Block Ford 429-460 Four Piece Oil Pan Gasket
  • Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
  • Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
  • Recommended Accessory 1: 18-761 - Our Special 7/8" Dia. Pickup
  • Pickup Included: No
  • Material: 14 Gauge Steel
  • Kicked Out: No
  • Hardware Included: No
  • Finish: Black Gloss Powdercoat
  • Capacity: 8 Quart System Capacity
  • Feature 7: Powder Coating & Brass Plugs For Corrosion Protection
  • Feature 6: Provision For our Pan Mounted Dipstick
  • Feature 5: 1/2" NPT Drain Fitting
  • Feature 4: Removable Windage/Anti-Slosh Baffle
  • Feature 3: Double Trap Door Baffles
  • Feature 2: 14 ga. Steel Construction
  • Feature 1: 8 qt Pan Capacity
  • Drain Plug Included: Yes
  • Dipstick Port: Yes
  • Crank Scraper Included: No
  • Windage Tray Included: No

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 26 x 14 x 10 inches
  • Weight: 22 lb
