Canton 25-100B Billet Aluminum CM Oil Filter 6 Inch Canister With 1/2 NPT Ports

$146.40 USD
By Canton
SKU: BGTF-25-100B

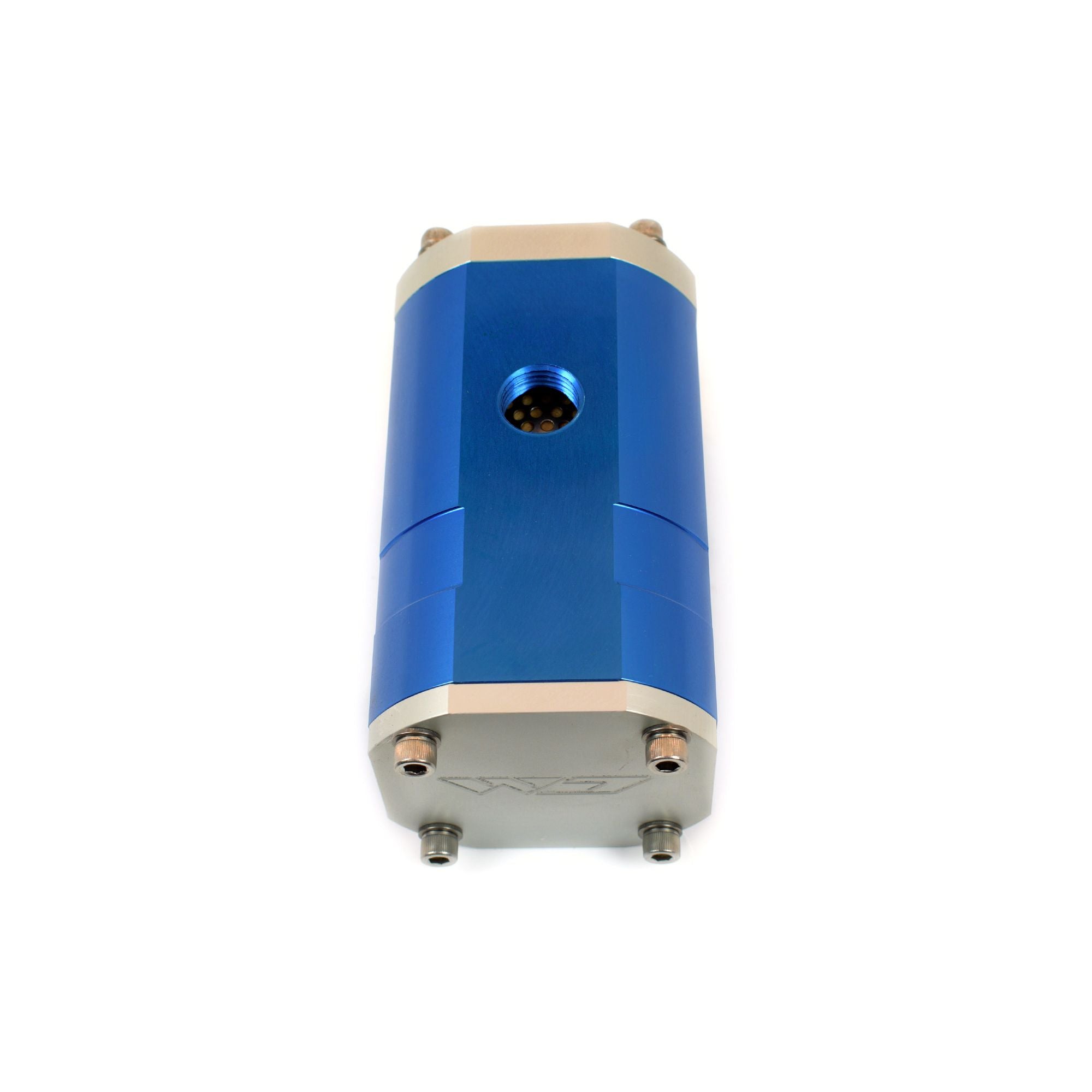

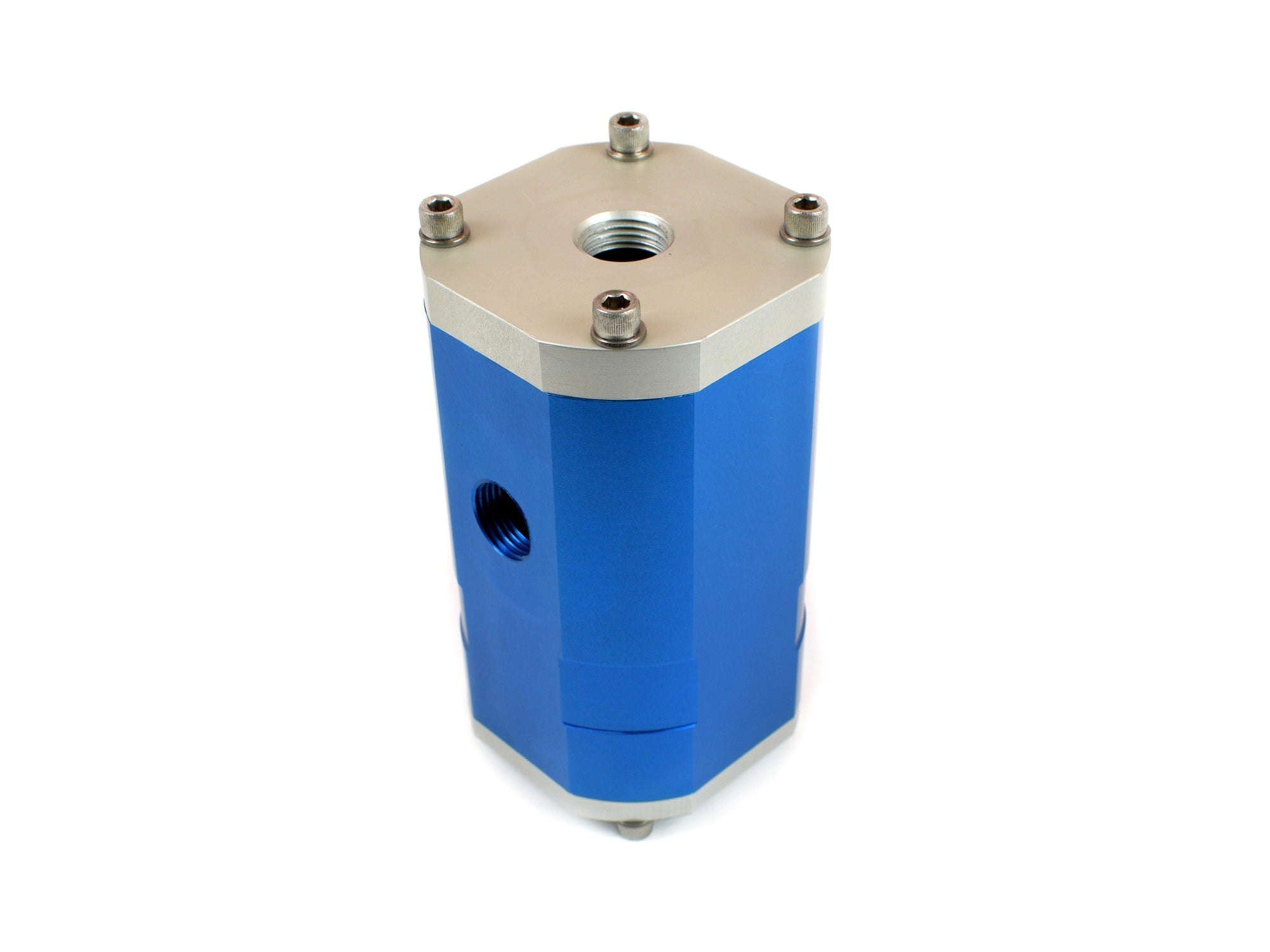

This 6" tall canister style filter is machined from billet aluminum. This is a non bypass filter to ensure that no dirty oil bypasses the filter. This filter has two 1/2 npt ports, one in the side of the housing and one on the bottom cap. The easy to remove cap has four allen head bolts and allows for easy element replacement and inspection. This filter comes with an 8 micron synthetic fiber element but can use any of our 4 5/8" elements.

Additional Attributes:

  • GTIN:
  • Feature 1: 3.5 in Diameter Machined Body
  • Feature 2: 6 in Tall Body
  • Feature 3: Designed For Maximum Capacity and Flow
  • Feature 4: 8 Micron Sythetic Element pre-installed For High Flow Fine Filtration
  • Feature 5: Easy to Remove Caps for Replaceable Elements
  • Feature 6: O-Ring Sealed Caps
  • Feature 7: Channel Machining for Easy Clamp Mounting
  • Feature 8: 1/2 NPT Inlet and Outlet
  • Finish: Blue ANodize
  • Material: Billet Aluminum

Extened Information:

  • Emissions : Emission verification to be determined in ACES, vehicle application data.
  • Life Cycle Status: Available To Order

Packaging:

  • Quantity of Each:
  • Package UOM:
  • Dimension: 8.75 x 4.25 x 4.5 inches

PDF:
