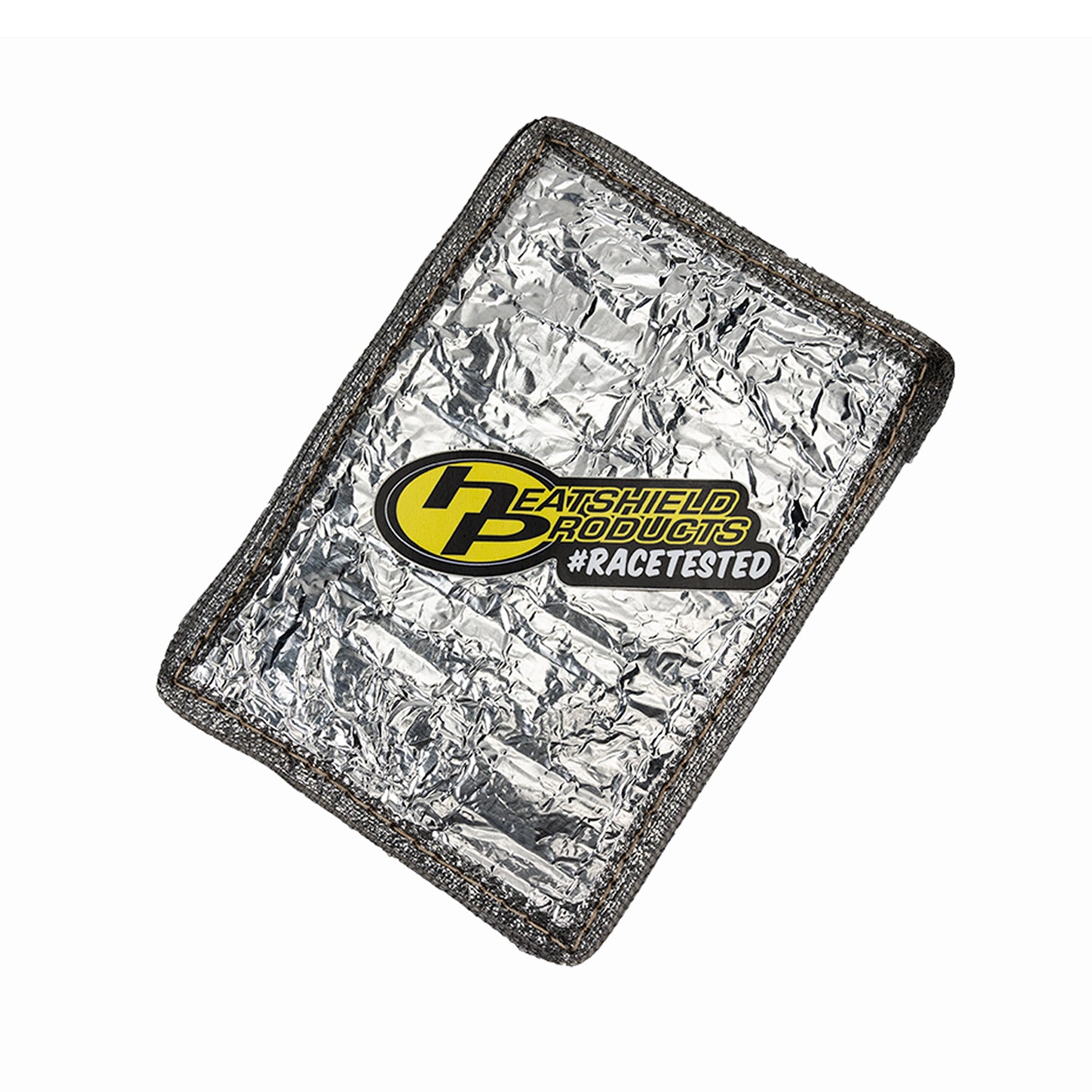

Thermaflect Shield can reflect up to 90 percent of radiant heat away.

The highest quality reflective heat shield on the market, there is no better way to shield up to 90% of radiant heat. We use a 1/4 inch thick ceramic inner pad sandwiched between heavy duty foil and bound together with a stainless steel mesh at the edges. By binding the edges with this mesh, we create greater flexibility and a more rugged product. This heat shield withstands 1100F continuous radiant heat and 500F of direct contact. Thermaflect Shield is intended for wrapping around air boxes, electrical boxes, air conditioning components, or used as a heat shield for a catalytic converter, muffler, DPF, or a floor heat shield. All of these heat shields may be fastened with Thermal-Tie, safety wire, screws, or rivets.

• Continuous operating reflective temperature of 1100F, 2000F intermittent
• Capable of reflecting over 90% of radiant heat
• Flexible, bends and conforms to almost any shape
• Simple installation, install in minutes!

Additional Attributes:

• GTIN: 00819825010114
• Color: Aluminum/White
• Electrical Warning: Caution this material is electrically conductive; be sure to insulate any terminals that might come in contact with this product.
• Installation Tip: Locking Ties Rivets or Spray-on Adhesive
• Instructions Included: N
• Insulation Type: Radiant heat barrier, requires 1 Inch of airspace. Not designed for direct contact.
• Material: Proprietary Data
• Operating Temperature: 1000F
• Peak Temperature: 1500F
• Safety Warning: Always wear safety glasses, dust mask, gloves and long sleeves are recommended when handling this product.

Extened Information:

• Emissions : Legal US
• Life Cycle Status: Available To Order

Packaging:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 8 x 3 x 1 inches
