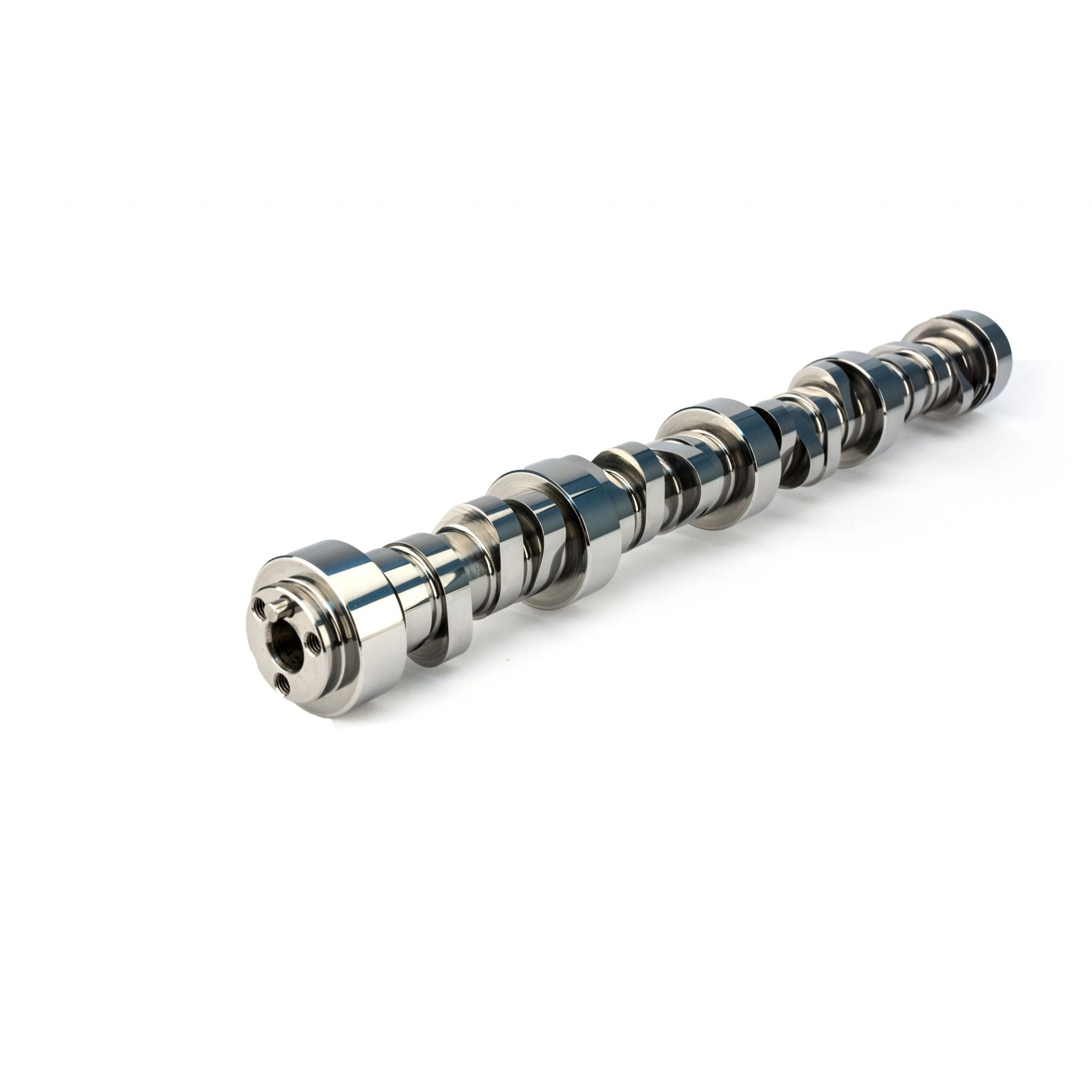

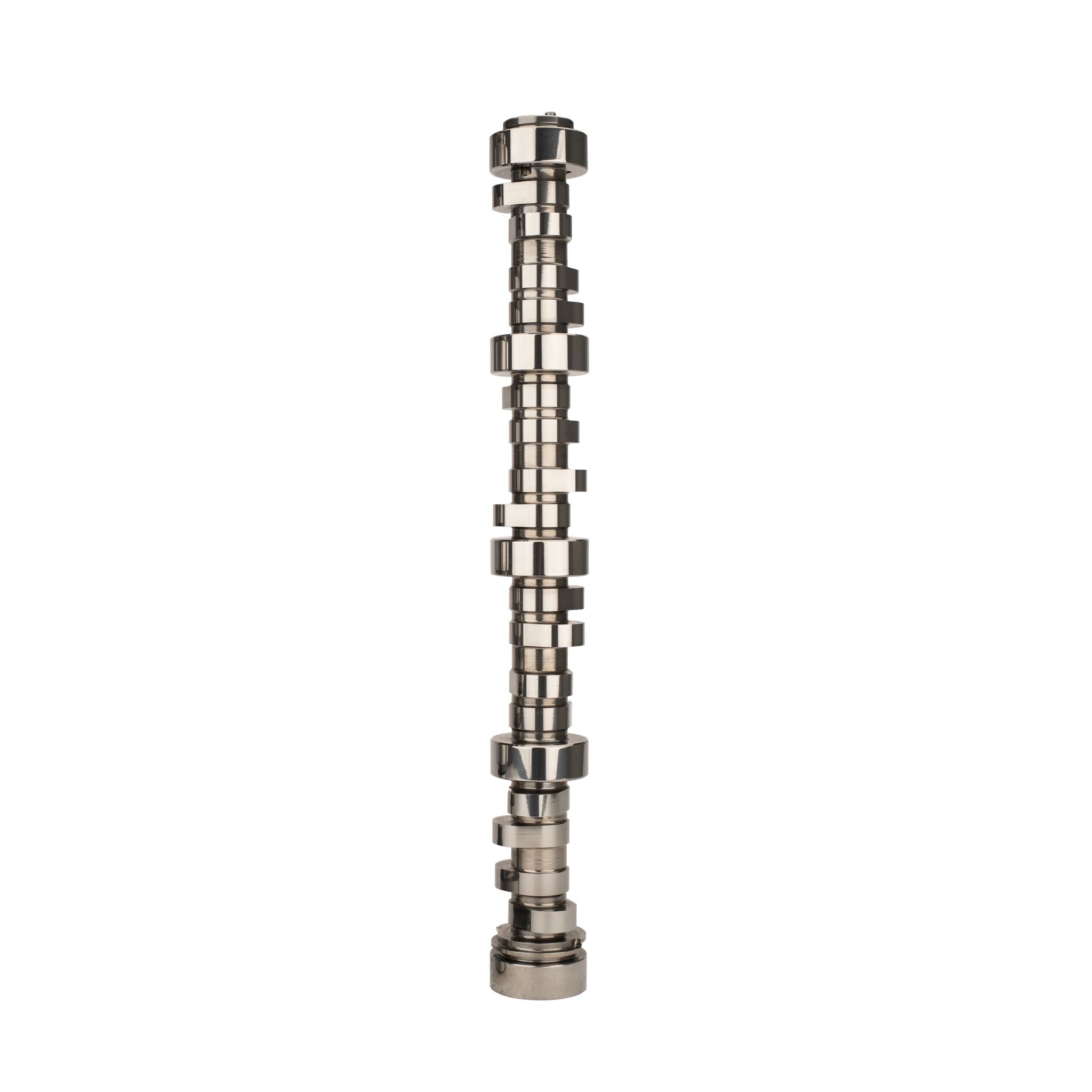

COMP Cams Camshaft LS1 305Lrr HR-115 - 54-475-11

Additional Attributes:

• GTIN: 00036584195375
• Engine Family: GM LS GEN III/IV 3-Bolt 8 Cylinder (1997-2015)
• Lifter Type: Hydraulic Roller
• Amazon ASIN: B001P24PNK
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A
• MSE Process Video Link: https://www.youtube.com/watch?v=hTyIQxrPCCI
• Camshaft Series: LSR Rectangular Port Large Displacement
• Cam Type: Hydraulic Roller
• Grind Number: 305LRR HR15
• Basic Operating RPM Range: 2,800-7,200
• Intake Duration at .050 Inch Lift: 255
• Exhaust Duration at .050 inch Lift: 271
• Advertised Intake Duration: 305
• Advertised Exhaust Duration: 321
• Lobe Separation: 115
• Intake Valve Lift: 0.624
• Exhaust Valve Lift: 0.624
• Lifters Included: No
• Valve Springs Required: Yes
• Assembly Lubricant Included: No
• Camshaft Gear Attachment: 3-Bolt
• Camshaft Material: Billet Steel

Extened Information:

• Emissions : Not Legal For C.A.R.B. - This part is not legal for sale or use in C.A.R.B. restricted areas
• Life Cycle Status: Available To Order

Packaging:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24.5 x 3 x 2.75 inches
