Additional Attributes:
- GTIN: 00036584690023
- Exhaust Duration at .050 inch Lift: 282
- Advertised Intake Duration: 306
- Advertised Exhaust Duration: 319
- Lobe Separation: 110
- Intake Valve Lift: 0.68
- Exhaust Valve Lift: 0.68
- Lifters Included: No
- Valve Springs Required: Yes
- Assembly Lubricant Included: No
- Camshaft Gear Attachment: 3-Bolt
- Camshaft Material: Billet Steel
- Engine Family: Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
- Cam and Lifter Kit Upgrade: CL11-702-9
- K-Kit Upgrade: K11-702-9
- Lifter Type: Solid Roller
- SK-Kit Upgrade: SK11-702-9
- Amazon ASIN: B001O0BQ4E
- C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
- C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for On-Road Vehicles?: No
- C.A.R.B. Exemption Reason: N/A
- C.A.R.B. E.O. Number: N/A
- Camshaft Series: Puller and Mud Race
- Usage: Marine
- Cam Type: Solid Roller
- Grind Number: 306AR-10
- Basic Operating RPM Range: 4,500-7000
- Intake Duration at .050 Inch Lift: 271
Extened Information:
- Emissions : Not in CA
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 23.3 x 2.91 x 2.59 inches
PDF:

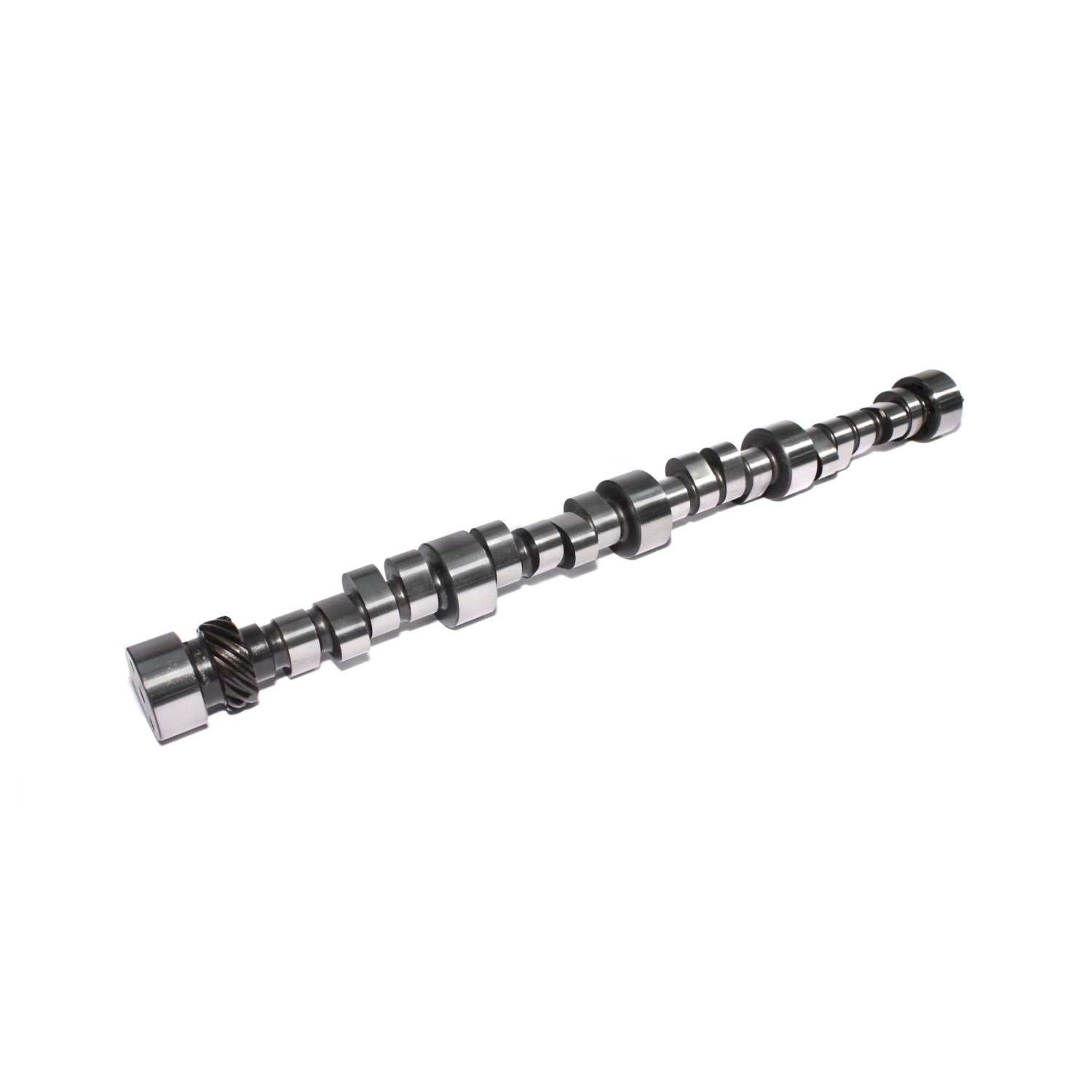

dddbebdc29809COMP Cams Camshaft CB 306A-R10 - 11-702-9
