Additional Attributes:
- GTIN: 00036584081982
- Camshaft Series: Oval Track
- Usage: Strip
- Cam Type: Solid Roller
- Grind Number: 296RXA-6
- Basic Operating RPM Range: 6,000-8500
- Intake Duration at .050 Inch Lift: 263
- Exhaust Duration at .050 inch Lift: 268
- Advertised Intake Duration: 296
- Advertised Exhaust Duration: 301
- Lobe Separation: 106
- Intake Valve Lift: 0.648
- Exhaust Valve Lift: 0.648
- Lifters Included: No
- Valve Springs Required: Yes
- Assembly Lubricant Included: No
- Camshaft Gear Attachment: 1-Bolt
- Camshaft Material: Billet Steel
- Engine Family: Ford 351W 8 Cylinder (1969-1996)
- Lifter Type: Solid Roller
- Amazon ASIN: B001GC0P3S
- C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
- C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for On-Road Vehicles?: No
- C.A.R.B. Exemption Reason: N/A
- C.A.R.B. E.O. Number: N/A
Extened Information:
- Emissions : Not Legal For C.A.R.B. - This part is not legal for sale or use in C.A.R.B. restricted areas
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 24 x 2.9 x 2.6 inches
PDF:

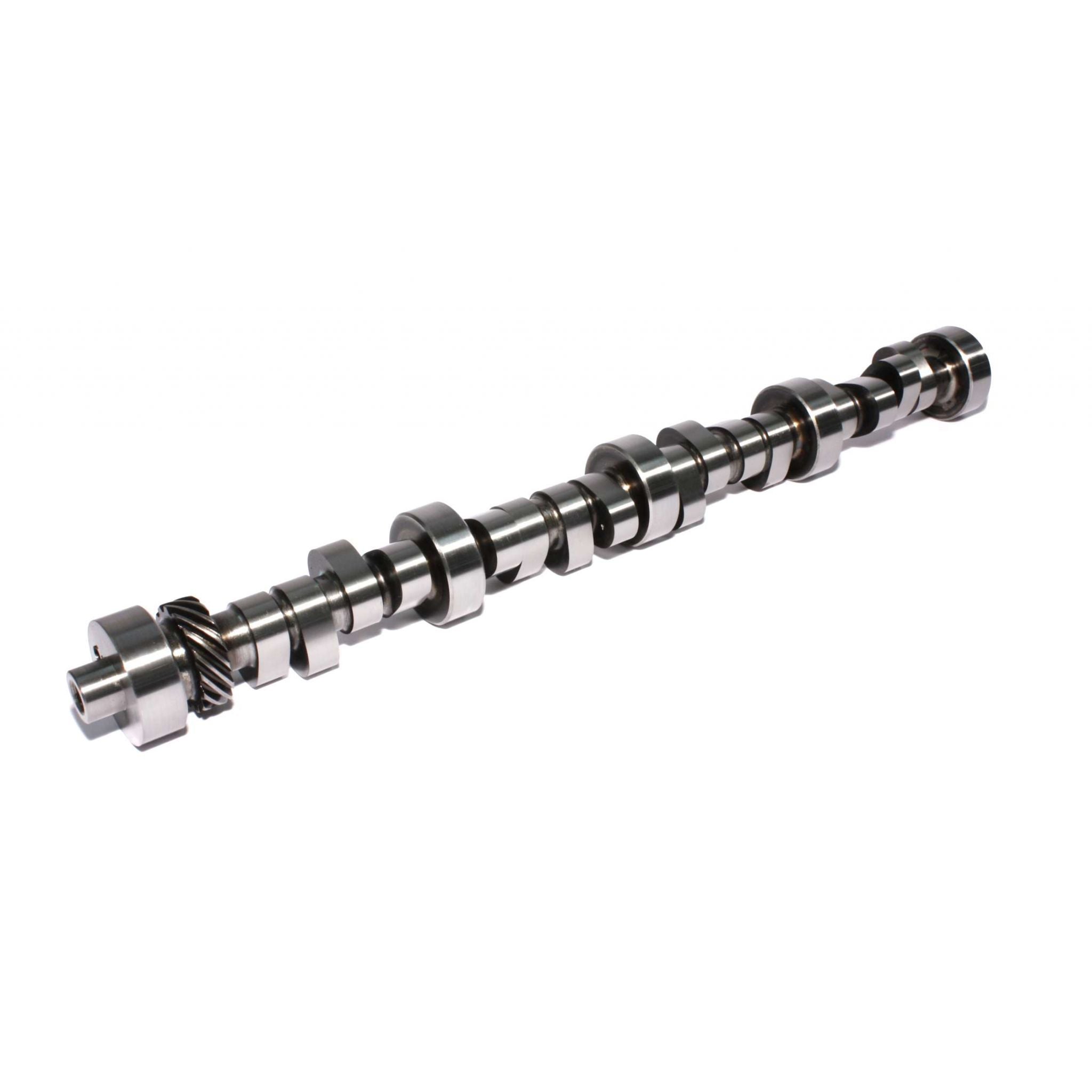

dddbebdc29809COMP Cams Camshaft FW 296Rxa-6 - 35-826-9
