Centerforce - TRIAD XDS Clutch and Flywheel Kit - PN: 838264042

$2,059.95 USD
SKU: BDPL-838264042

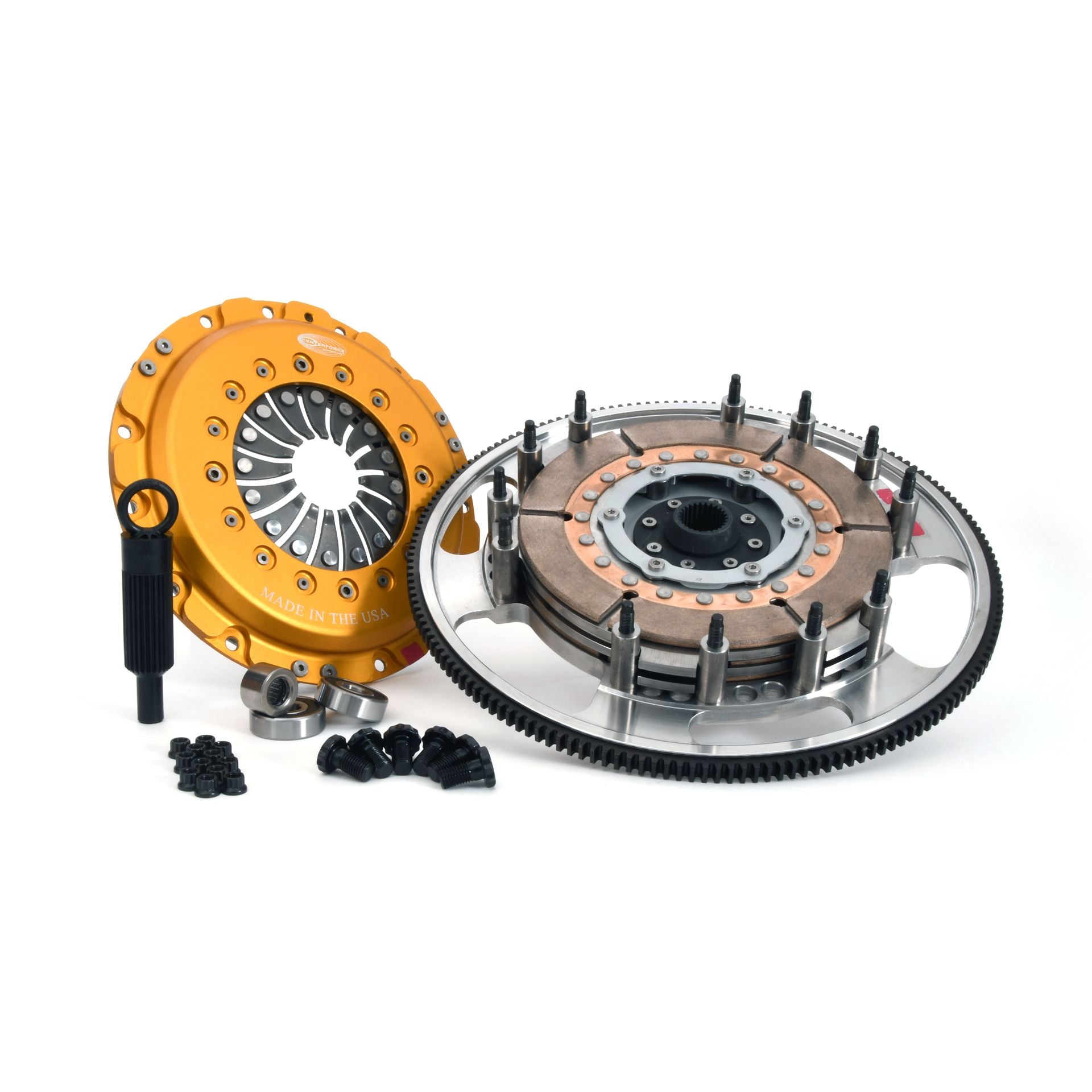

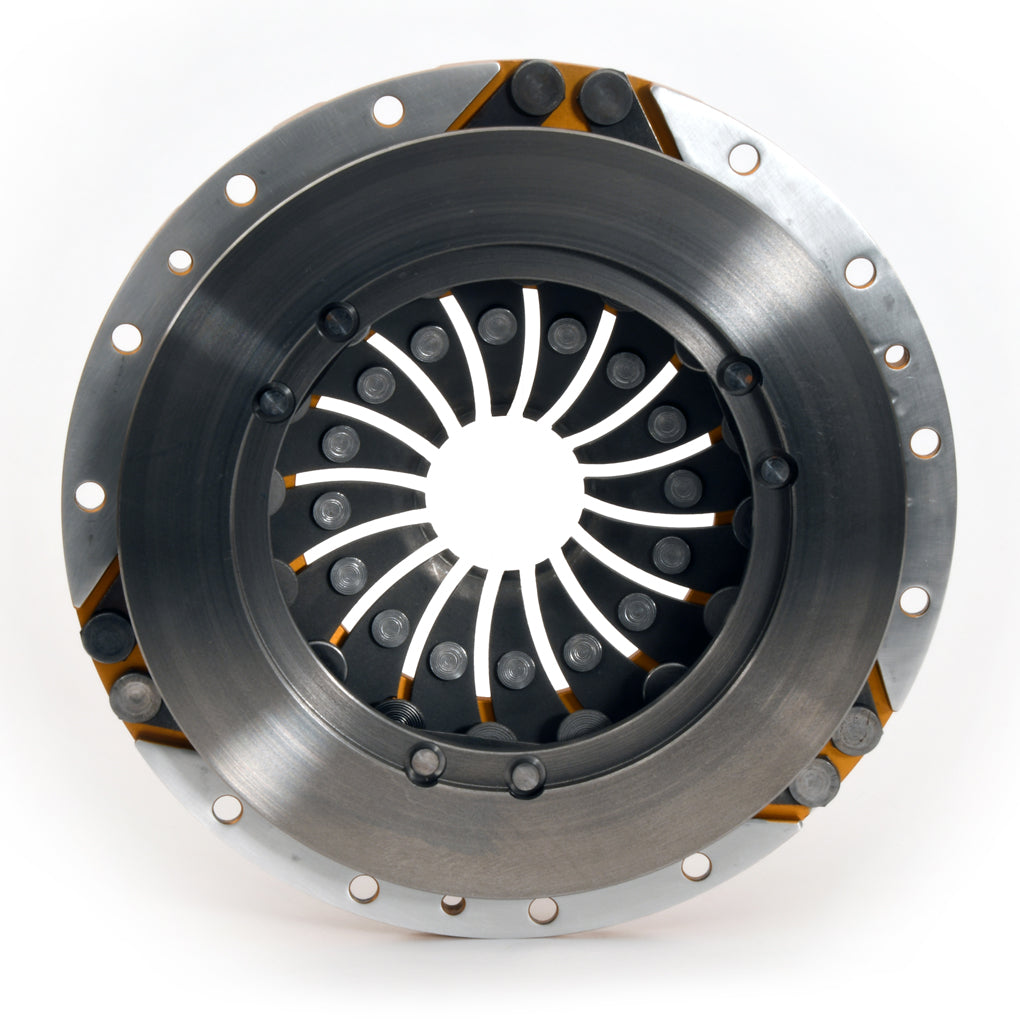

The Centerforce(R) TRIAD XDS 8.75" triple disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1200 ft/lbs of torque at the crank. The billet pressure plate features our patented centrifugal weight system (where applicable) for superior clamp load over stock and our patented ball bearing actuated pressure plate (where applicable) providing light pedal effort. The solid hub (possible gear noise) disc pack is equipped with Kevlar full facing friction material providing increased holding capacity. TRIAD XDS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Due to the aggressive nature of this race inspired clutch, vehicles may experience some floater noise and/or chatter during operation. Components are designed, machined and assembled in the USA. TRIAD XDS clutches are match balanced and ready for installation using the included ARP fasteners.
  • 8.75" Dia for Track Use;

Additional Attributes:

  • GTIN: 00788442031430
  • Clutch Disc Diameter8: 8.750
  • Counterweight Assist2: Yes
  • Crankshaft Bolt Hole Quantity7: 6
  • Disc Material4: Sintered Metallic
  • Disc Type Sprung Solid: Solid
  • Disc Type5: Full face
  • Flywheel Counter Balance Weight7: 0
  • Flywheel Crank Bolt Size1: 11mm
  • Flywheel Crank Flange Register8: 2.068
  • Flywheel Deck Height0: 2.890
  • Input Shaft Diameter1: 1-1/8
  • Input Spline Quantity3: 26
  • Material2: Billet Steel Flywheel / Nodular Iron Pressure Plate / Full Face Cerametallic Friction
  • Out of Package Weight: 34.30
  • Outside Diameter7: 14.096
  • Tooth Quantity: 168
  • Torque Capacity: 1100

Extened Information:

  • Emissions : Legal US
  • Life Cycle Status: Available To Order

Packaging:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 18 x 18 x 5.5 inches
