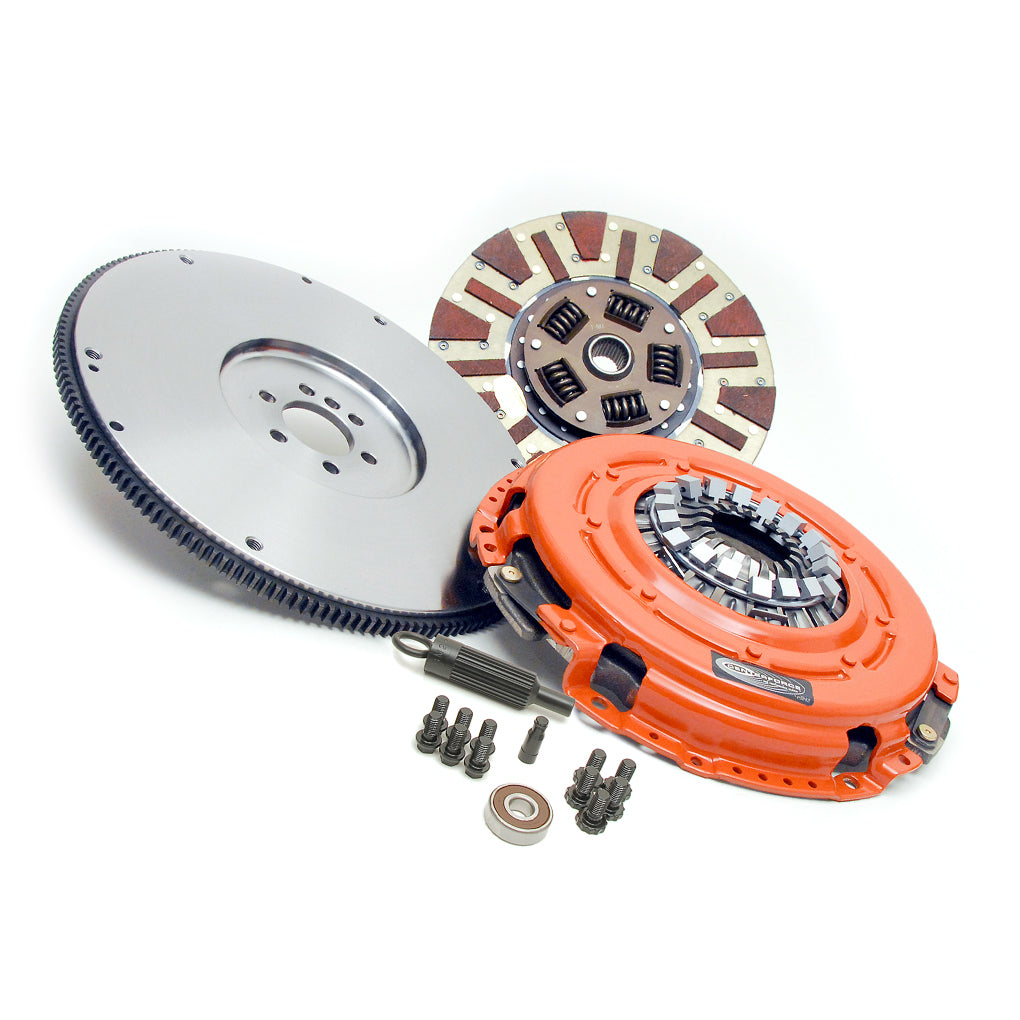

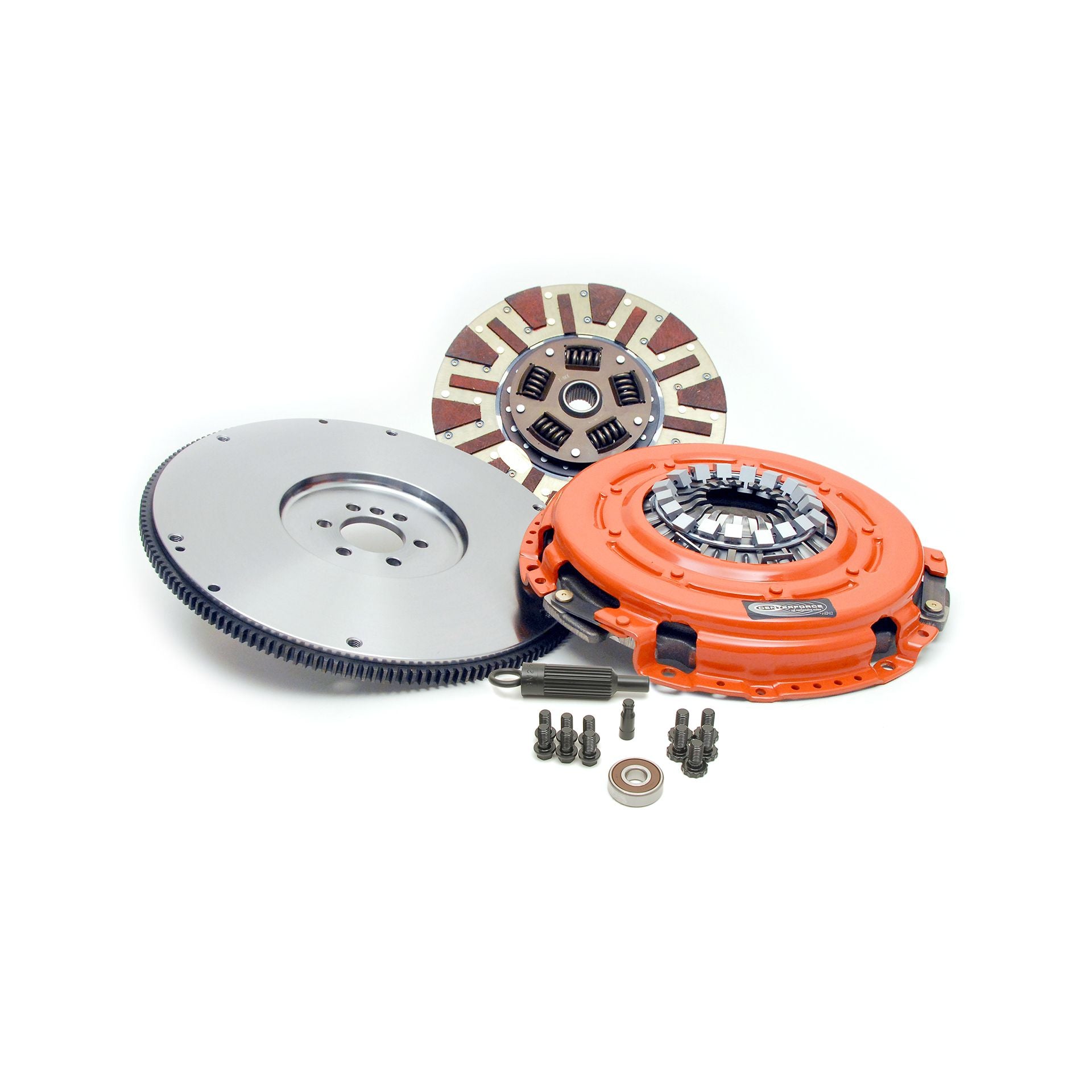

PN: DF612142 - Dual Friction Clutch Pressure Plate Disc and Flywheel Set

$999.95 USD
SKU: BDPL-DF612142

The Centerforce(R) Dual Friction(R) Clutch Series is a performance matched pressure plate & disc combination featuring the patented Centerforce centrifugal weight system (where applicable) and specialized machining processes to provide a performance clutch that offers exceptional street characteristics, while offering outstanding holding-capacity and durability. Furthermore, the Centerforce Dual Friction disc has an organic full facing on one side for longevity and an organic segmented facing on the other side providing increased holding capacity. Some applications have the organic segmented facings of both sides. The Dual Friction clutch is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Dual Friction has been engineered primarily as a street clutch it can be used in mild competition applications.
  • 12" Diameter;

Attributes:

  • GTIN: 00788442027730
  • Brand Name: Centerforce
  • Torque Capacity: 700
  • Clutch Bolt Pattern6: 14
  • Clutch Disc Diameter8: 12
  • Counterweight Assist2: YES
  • Crankshaft Bolt Hole Quantity7: 6
  • Disc Material4: Organic/Carbon Composite
  • Disc Type Sprung Solid: Sprung
  • Disc Type5: Segmented face
  • Flywheel Counter Balance Weight7: 0
  • Flywheel Crank Bolt Size1: 11mm
  • Flywheel Crank Flange Register8: 2.066
  • Input Shaft Diameter1: 1-1/8
  • Input Spline Quantity3: 26
  • Installed Height2: 3.580
  • Material2: Cast Iron Pressure Plate / Segmented Organic Friction
  • Out of Package Weight: 59.65
  • Ring Gear OD7: 14.096
  • Tooth Quantity: 168

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 18 x 18 x 5.5 inches
  • Weight: 63.3 lb
