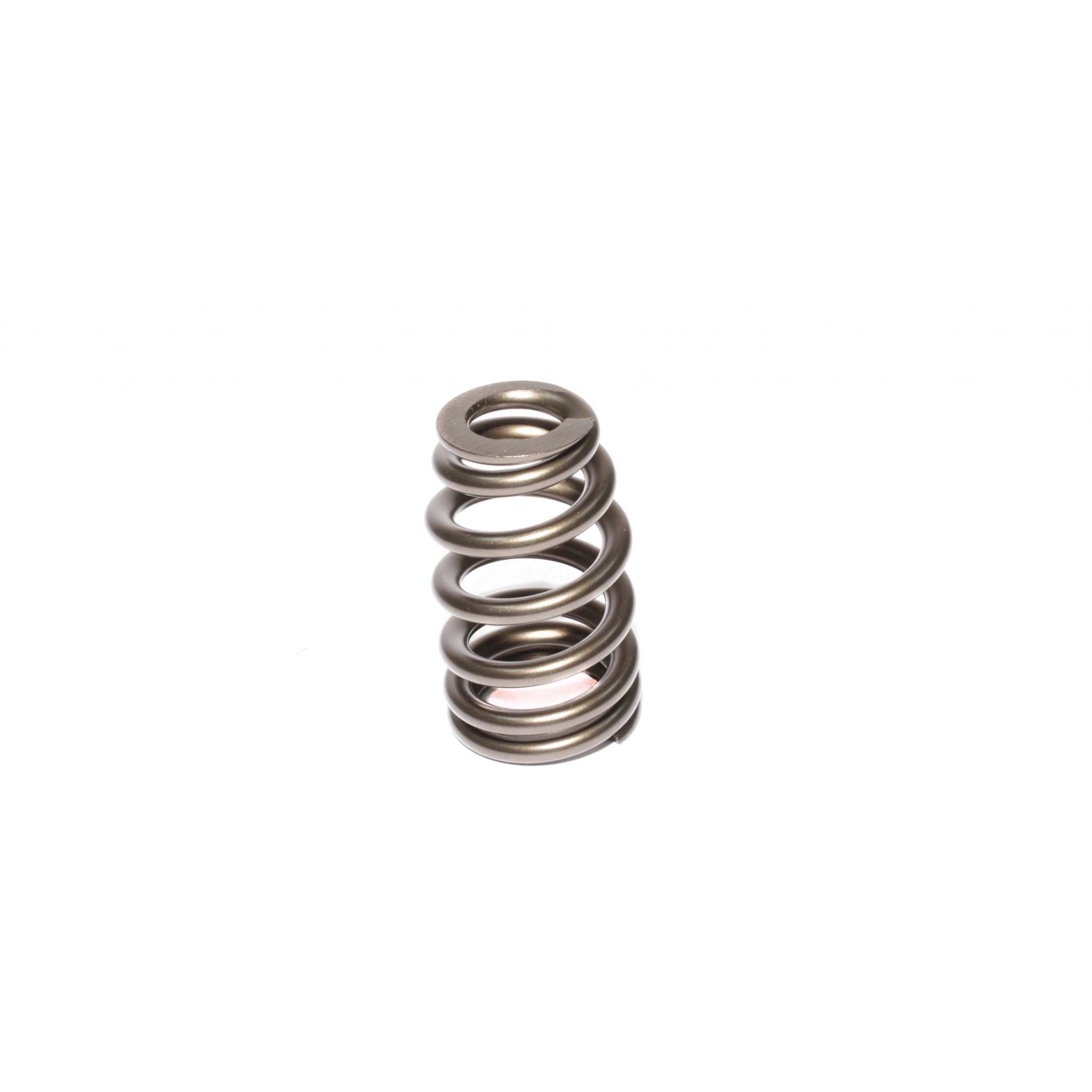

COMP Cams Valve Spring 1.445in Beehive - 26120-1

Additional Attributes:

• GTIN: 00036584088639
• Outer Bottom Spring Outside Diameter: 1.444
• Spring Rate: 370
• Seat Pressure: 155
• Seat Height: 1.88
• Outer Top Spring Outside Diameter: 1.059
• Outer Top Spring Inside Diameter: 0.65
• Outer Bottom Spring Inside Diameter: 1
• Coil Bind Height: 1.23
• Number of Springs: 1
• Damper: No
• Compatible Spring Cup (O.D. Locator): 4698-1
• Compatible Shims: 4754
• Compatible Retainer: 795-1
• Compatible .630" Guide Diameter Spring Seat: 4697-1
• Compatible .570" Guide Diameter Spring Seat: 4696-1
• Valve Spring Series: Race/Street
• Amazon ASIN: B000P5DB24
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: Yes
• C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
• C.A.R.B. E.O. Number: N/A

Extened Information:

• Life Cycle Status: Available To Order
• Emissions : Legal US

Packaging:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 5.4 x 4 x 0.2 inches
