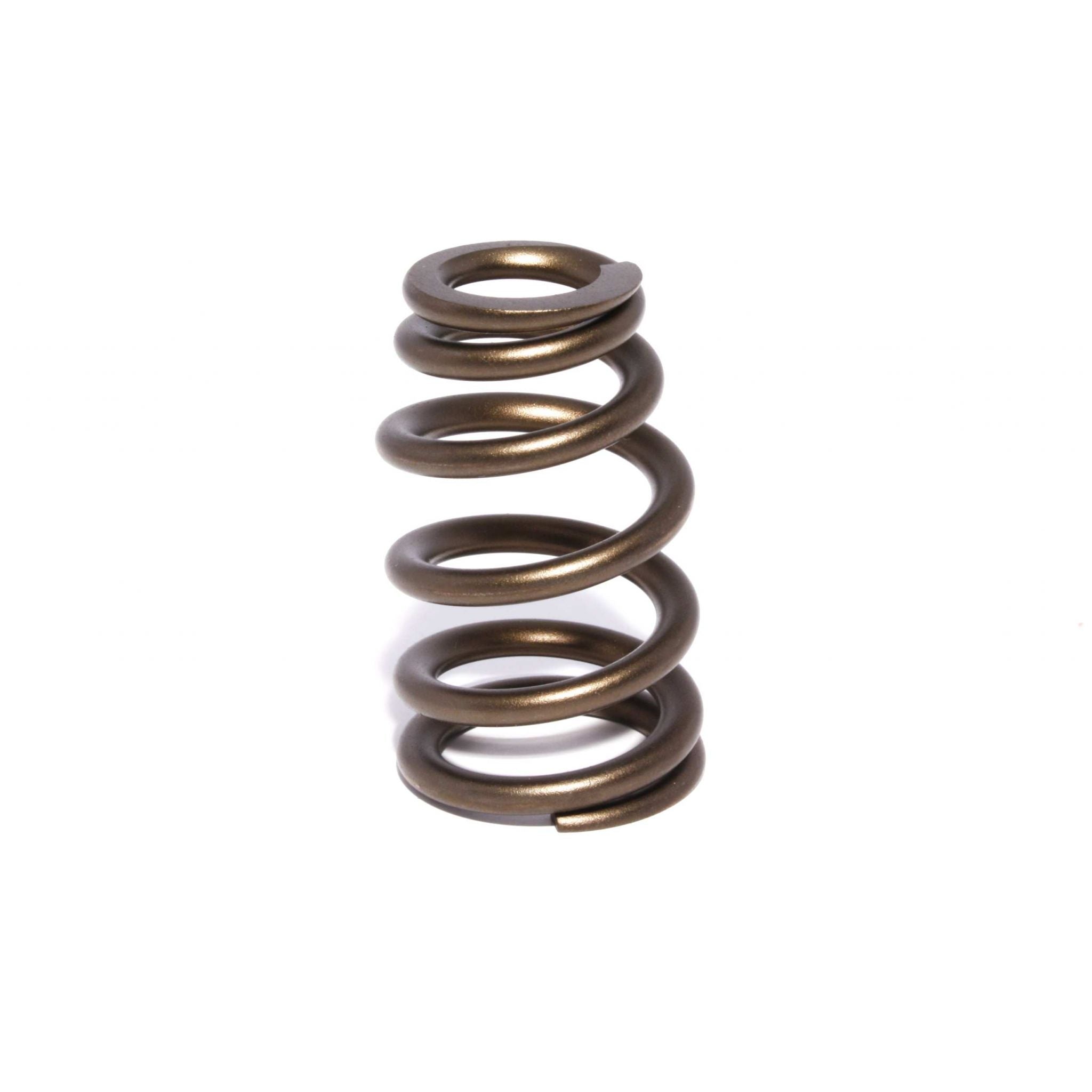

COMP Cams Valve Spring 1.589in Beehive - 26095-1

Additional Attributes:

• GTIN: 00036584073000
• Compatible Retainer: 785-1
• Outer Bottom Spring Outside Diameter: 1.59
• Outer Bottom Spring Inside Diameter: 1.125
• Number of Springs: 1
• Damper: No
• Compatible Spring Cup (O.D. Locator): 4702-1
• Compatible Shims: 4757
• Coil Bind Height: 1.13
• Amazon ASIN: B001GBVQI2
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: Yes
• C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
• C.A.R.B. E.O. Number: N/A
• Compatible .570" Guide Diameter Spring Seat: 4711-1
• Outer Top Spring Outside Diameter: 1.186
• Valve Spring Series: Race/Street
• Spring Rate: 300
• Seat Pressure: 150
• Seat Height: 1.925
• Outer Top Spring Inside Diameter: 0.721

Extened Information:

• Emissions : Legal US
• Life Cycle Status: Available To Order

Packaging:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 6 x 4 x 1.25 inches
