Temp-A-Cure™ Curved Oil Cooler

$222.37
SKU: CFRL-71308ERL

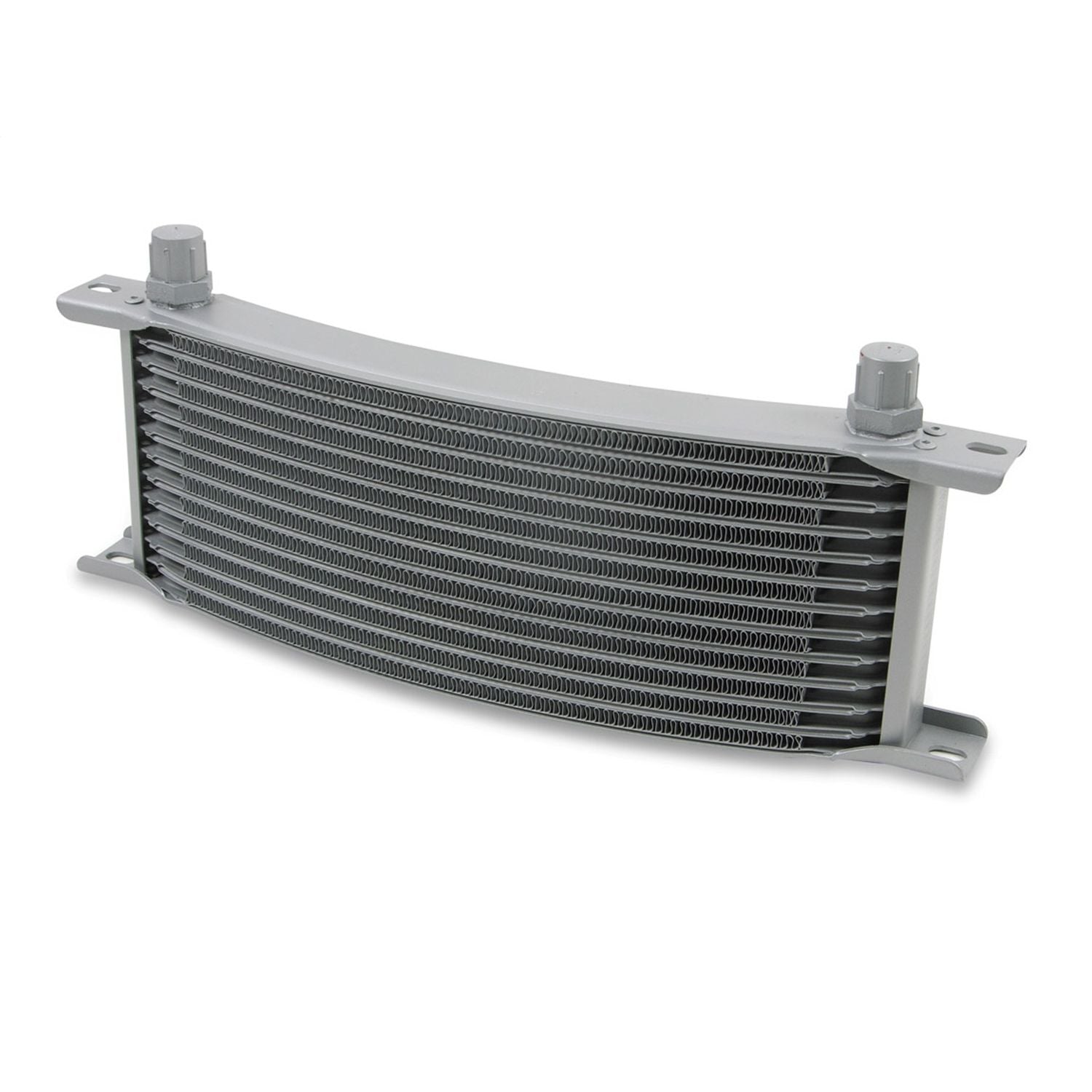

Earl's curved coolers are constructed with the same high grade aluminum and the same internal design as our standard 2 inch coolers, but have a curved design to fit neatly between the down tubes of the frame of a motorcycle for maximum heat dissipation. The curved design allows for full wheel travel no matter where it is mounted on the front of the frame. These coolers are only 1–1/4 inch thick and are available in two widths, three different heights and male -6 or -8 inlet and outlet fittings.
  • Manufactured In USA
  • Aircraft Spec Aluminum Alloy
  • Latest Vacuum Brazing Technical
  • Lightest Practical Package
  • Increase Mechanical Strength
  • Pressure Checked To 175 PSI
  • Burst Tested To 350 PSI

Additional Attributes:

  • GTIN: 00090127655238
  • Body Width: 11.562 in.
  • Bracket Included: No
  • Construction: Stacked Plate - Brazed
  • Finish: Grey
  • Fitting Centers: 9.050 in.
  • Fitting Number: Not Required
  • Fittings Included: Yes
  • Item Height: 3.977 in.
  • Material: Aluminum
  • Mounting Bracket Number: N/A
  • Port Size: 8AN MALE
  • Product Line: Temp-A-Cure
  • Radiator Core Row Quantity: 13
  • Thickness: 1.250 in.
  • WARNING CA Proposition 65: No
  • Width: Narrow Curved Cooler
  • Width Between Tanks: 8.000 in.

Packaging:

  • Quantity of Each:
  • Package UOM:
  • Dimension: 14.0000 x 6.0000 x 4.0000 inches
