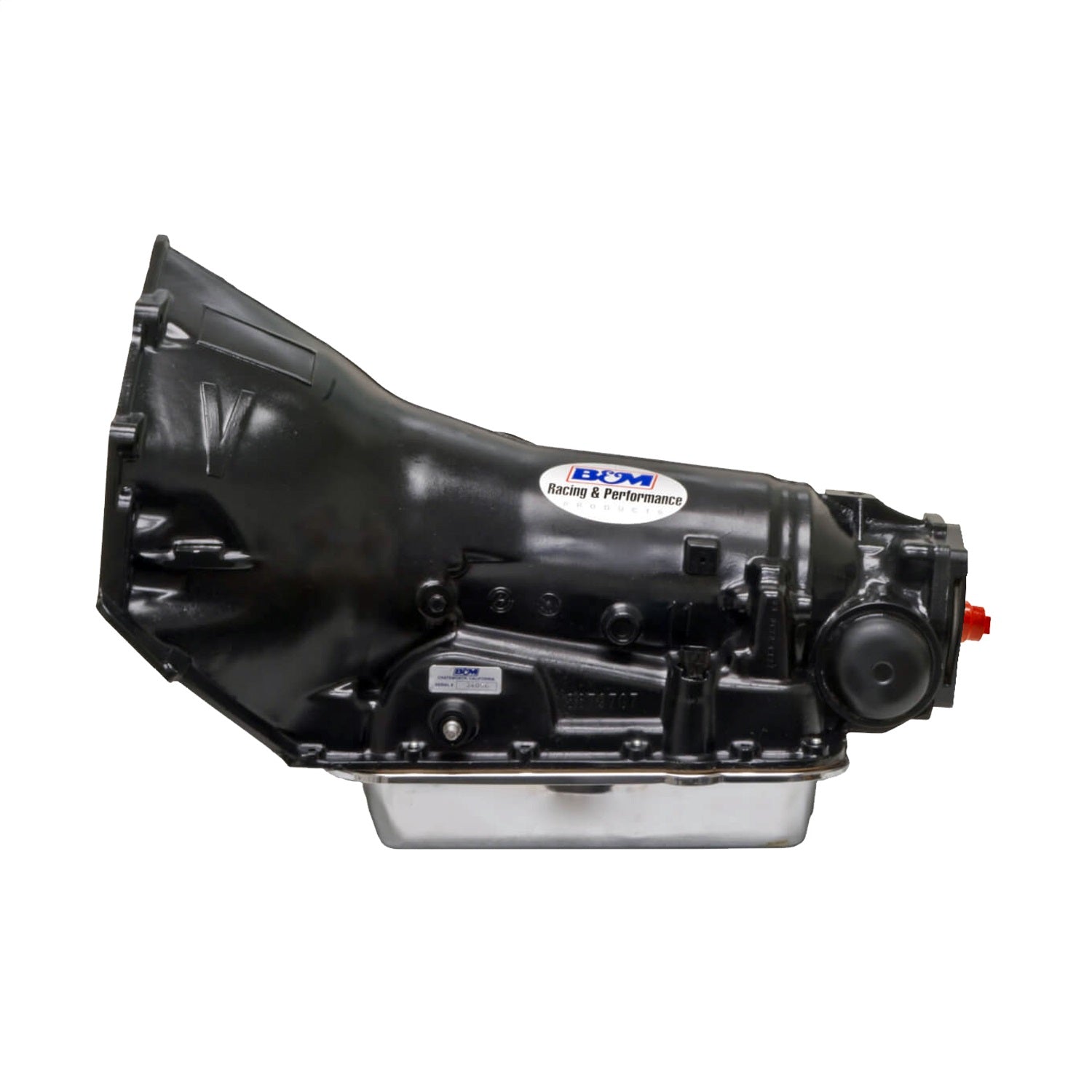

Traveler Transmissions are rugged models that have a medium firm shift compared to the harder shift of the Street Strip models. The Traveler transmissions are recommended for light trucks, RV, Towing and off-road applications for heavy duty use and feature an increase of oil flow compared to a stock transmission. This increased oil flow provides the necessary additional cooling to make these transmissions live longer when subjected to mile after mile of grueling abuse. B&M strongly recommends adding a Hi-Tek trans cooler to help further reduce heat build-up and extend the life of all automatic transmissions. Does not fit Corvette, or 60 degree V6 engines. Does not replace 4L60E transmissions.
- Heavy Duty RV Towing and Off-Road
- Medium Firm Shifts
- Increased Internal Cooling Capacity
- Rated up to 500HP and 450LB FT
- 90 Day Warranty
Attributes:
- GTIN: 00019695001070
- Brand Name: B&M
- Cooler Included: No
- Dipstick Included: No
- Drive Type: 4WD
- Friction Plate: New
- Horsepower Rating: 500
- Input Shaft Spline Quantity: 30
- Intermediate and Low Roller Clutches: Included
- Output Shaft Spline Quantity: 27
- Package Contents: Transmission
- Tailshaft Length: N/A
- Torque Capacity: 450 ft/lbs.
- Torque Converter Included: No
- Trans Model: GM- TH700 R4 (Auto) 4 Speed
- Transmission Model: 700R4
- Transmission Pan Finish: Chrome
- Transmission Pan Material: Steel
- Transmission Pan Type: Stamped
- Valve Body Configuration: Recalibrated
- Valve Body Pattern: Forward
- Valve Body Type: Automatic
- WARNING CA Proposition 65: No
Extended Information:
- Country of Origin: United States
- Emissions : Released
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 35.0000 x 21.0000 x 22.0000 inches
- Weight: 145.0000 lb
