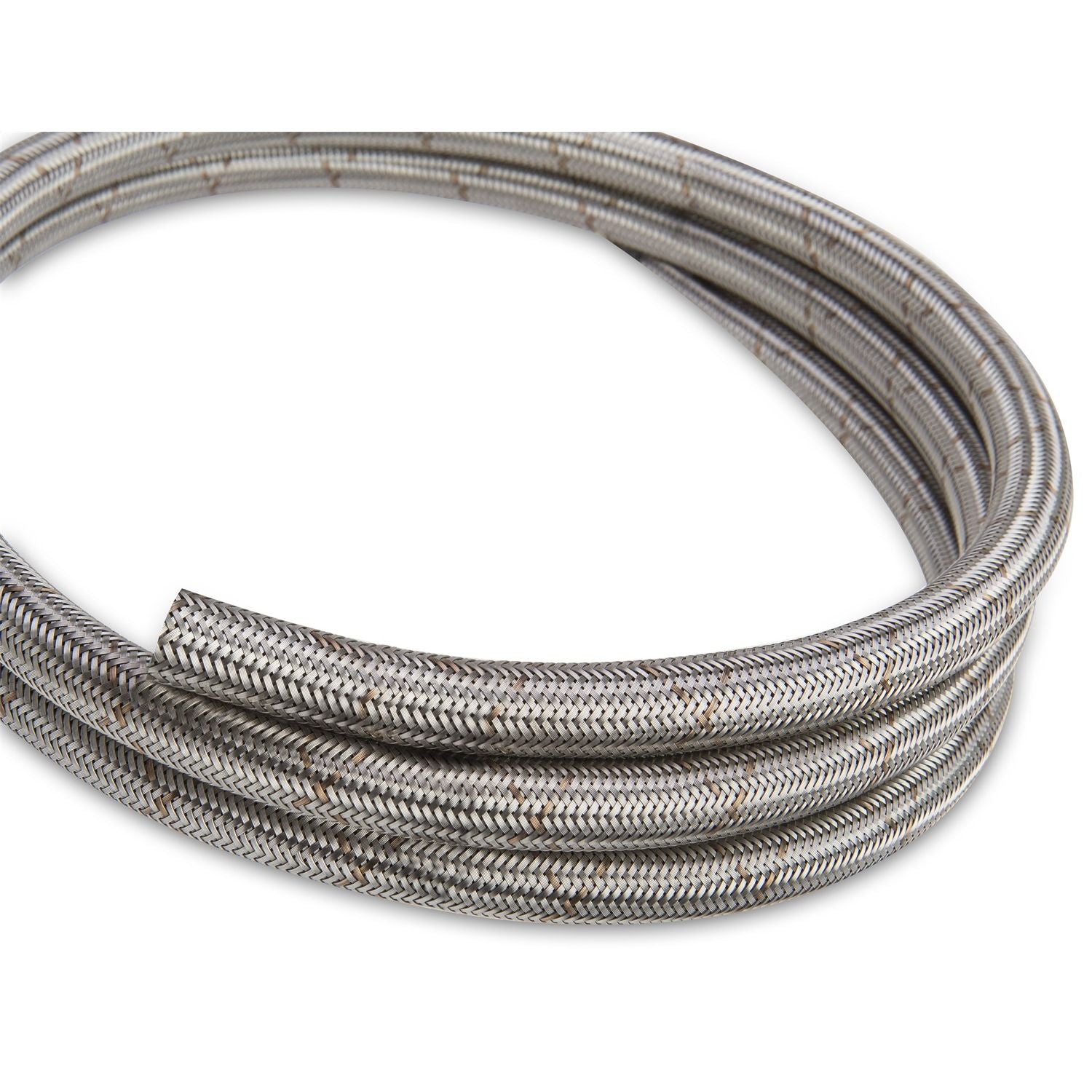

Ultra-Flex™ 304 Stainless Braid Hose

We have taken the same inner tubing of our Kevlar(R)) hose, and covered it with a high tensile grade 304 stainless steel. You still get all of the same flow rate and flexibility advantages of the Kevlar(R)) hose but with additional protection. The carbon lined inner tubing, for static dissipation, is smooth bore with large ID for maximum flow and convoluted exterior support for incredible flexibility. Ultra–flex stainless is 40 percent lighter and has an average of 14 percent larger ID than our premium stainless braided rubber hose. Being Teflon(R) it has a large range of applications including fuel, oil, water, methanol and air as well as a very high vacuum rating of 29Hg. The new stainless hose also accepts all of the same hose ends and crimp collars made for the Kevlar(R)) ultra–flex line. This means that the same crimper and dies used for the Kevlar(R)) hose can be used with the new stainless, so your ultra–flex crimper and dies are all you need for all of your high end line assemblies. Teflon(R) and Kevlar(R)) are registered trademarks of DuPont Performance Elastomers.

• Aircraft Quality 304 Stainless Steel Wire
• High-Temp. Smooth Bore PTFE Tubing
• Convoluted Outer Wall Of Inner Tube
• Incredible Flexibility
• Remains Flexible At Temps. Between -94F And +510F
• Clean and Fast Flowing
• Sold Per Foot

Additional Attributes:

• GTIN: 00090127636008
• Final Crimp O.D. Range: 1.335 in. - 1.370 in.
• Fluid Type: Automatic Transmission Fluid
• Hose Length: Bulk
• Hose Outer Material: Stainless Steel Braided
• Hose Size: 16AN
• Inside Diameter: 1.0039 in.
• Material: Braided Stainless Steel
• Maximum Continuous Length: 25 ft.
• Maximum Working PSI: 740
• Minimum Bend Radius: 2.756 in.
• Outside Diameter: 1.272 in.
• Product Length: N/A
• Size: -16AN
• Submersible in Fuel: Yes
• Vacuum: 0-29 in. Hg
• WARNING CA Proposition 65: Yes
• WARNING CA Proposition 65 Message: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• Color: Silver
• Compatible Hose End: Ultra Flex
• Crimping Die: 34MM - D10034BERL

Extened Information:

• Emissions : Emission verification to be determined in ACES, vehicle application data.
• Life Cycle Status: Available To Order

Packaging:

• Quantity of Each:
• Package UOM:
• Dimension: 1.5000 x 4.7500 x 8.5000 inches
