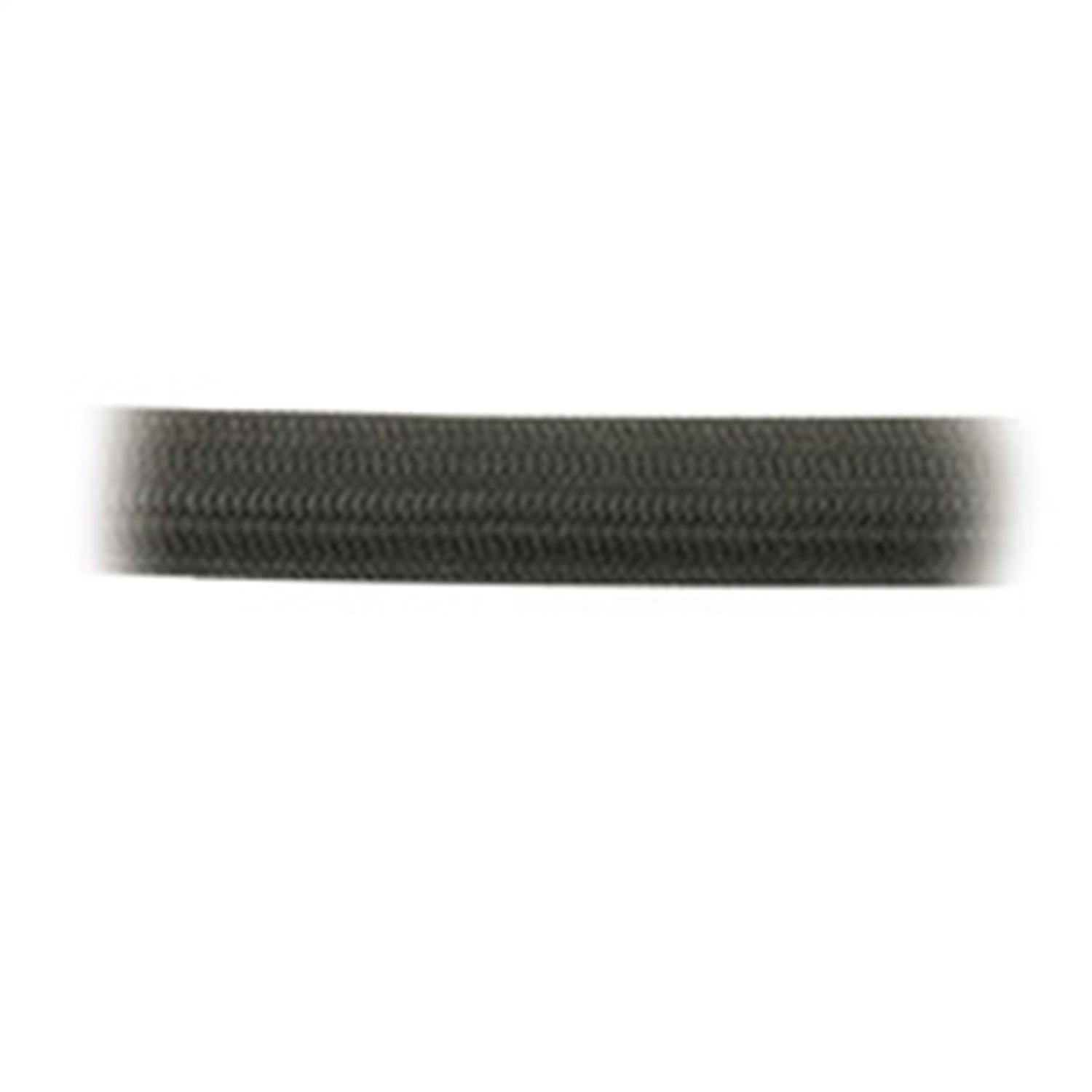

Ultra-Flex™ Kevlar Braid Hose

$1,914.95 USD $2,128.00

The packaging envelopes of the modern racing car become tighter each year - leaving less room for auxiliaries such as plumbing. At the same time it becomes more and more difficult to get the cars down to minimum weight. Earl's Ultra-Flex 650(TM) hose solves these issues. Earl's finest and lightest hose combines a woven Ultra-light Kevlar(R) braid with a smooth bore PTFE tubing for increased flow and convoluted outside for incredible flexibility. It also has significantly higher flow and pressure ratings than conventional convoluted PTFE hose. Ultra-Flex 650(TM) is 60% lighter than our stainless braid-protected synthetic rubber hose, and 15% lighter than our Pro-Lite 350(TM) hose. You have spent a lot of time, energy and money on your race engine and you should bring the life sustaining fluid to it with the best hose on the market today - Earl's Ultra-Flex 650(TM). (All trademarks are property of their respective owners.)
  • Ultra-Light Kevlar® Outer Braid
  • High Temp
  • Smooth PTFE Tubing
  • Clean and Fast Flowing
  • Sold In Pre-Packaged Lengths

Additional Attributes:

  • GTIN: 00090127023044
  • Color: Black Anodized
  • Compatible Hose End: Ultra Flex
  • Crimping Die: 34MM - D10034BERL
  • Final Crimp O.D. Range: 1.335 in. - 1.370 in.
  • Fluid Type: Automatic Transmission Fluid
  • Hose Length: 33 ft.
  • Hose Outer Material: Kevlar™ Coated
  • Hose Size: 16AN
  • Inside Diameter: 1.0039 in.
  • Material: Kevlar™ Coated
  • Maximum Working PSI: 740
  • Minimum Bend Radius: 4.790 in.
  • Outside Diameter: 1.272 in.
  • Product Length: 33 ft.
  • Size: -16AN
  • Submersible in Fuel: No
  • WARNING CA Proposition 65: Yes
  • WARNING CA Proposition 65 Message: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Extened Information:

  • Emissions : Emission verification to be determined in ACES, vehicle application data.
  • Life Cycle Status: Available To Order


  • Quantity of Each:
  • Package UOM:
  • Dimension: 14.0000 x 14.0000 x 3.0000 inches
