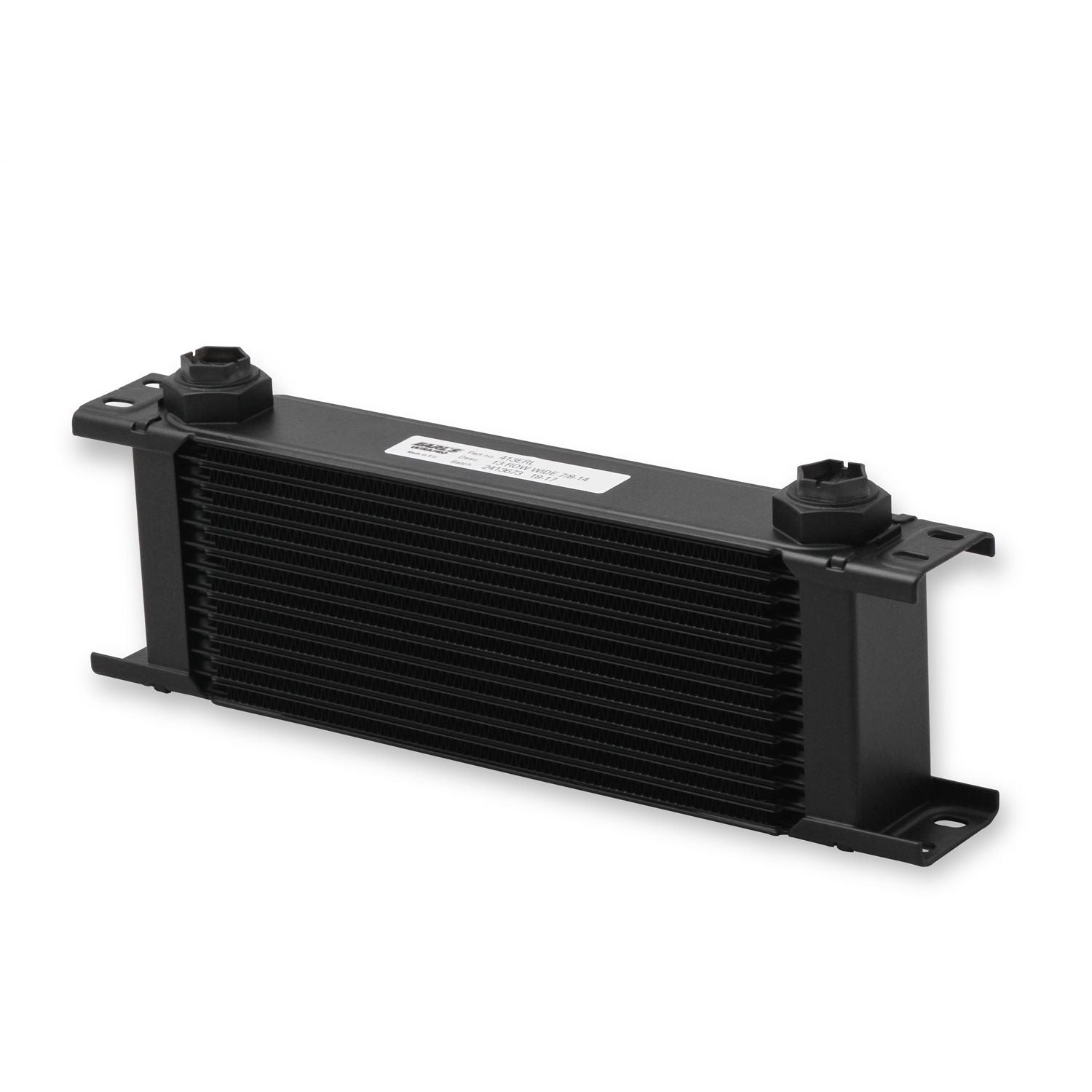

Earl's new premium quality UltraPRO oil coolers are ideal for all high performance applications. These aluminum stacked plate style coolers are made using state of the art brazing techniques for a durable and long lasting premium cooler that is highly efficient w/ minimal pressure drop. These coolers are available in 30 sizes for all applications (i.e..engine oil cooler, transmission cooler, power steering cooler,valve spring cooler, differential / gearbox cooler, etc.). Three fan pack style coolers are now also available w/ a premium cooling fan & shroud. These coolers feature -10 AN O-ring female ports and are used with special ORB cooler fittings (-6 AN, -8 AN,-10 AN, or -12 AN) and AN hose ends. Earls will also now stock coolers w/ -16 AN male flares brazed on the cooler for applications that require larger ports for additional oil flow.
- High Quality
- State Of The Art Brazing Technology
- Highly Efficient
- Extremely Durable
- GTIN: 00090127040003
- Brand Name: Earl's Performance
- Fitting Number: 585112ERL
- Fittings Included: No
- Item Height: 3.940 in.
- Item Weight: 1.900 lbs.
- Material: Aluminum
- Mounting Bracket Number: 400ERL
- Mounting Bracket Width: 12.200 in.
- Port Size: 0.875 in. -14 Female (-10 O-Ring Boss)
- Product Line: UltraPro
- Radiator Core Row Quantity: 13
- Thickness: 2.000 in.
- Transmission Fluid BTU Range: 12000-18500
- WARNING CA Proposition 65: No
- Width: Wide Cooler
- Width (Less Mounting Ears): 11.125 in.
- Body Width: 13.000 in.
- Bracket Included: No
- Capacity: 0.25 qt.
- Construction: Stacked Plate - Brazed
- Engine HP Range: 170-200
- Engine Oil BTU Range: 19000-26000
- Finish: Black
- Fitting Centers: 9.530 in.
- Country of Origin: Sweden
- Emissions : Released
- Life Cycle Status: Available To Order
- Quantity of Each:
- Package UOM:
- Dimension: 17.9000 x 11.9000 x 2.7000 inches
- Weight: 2.7700 lb
