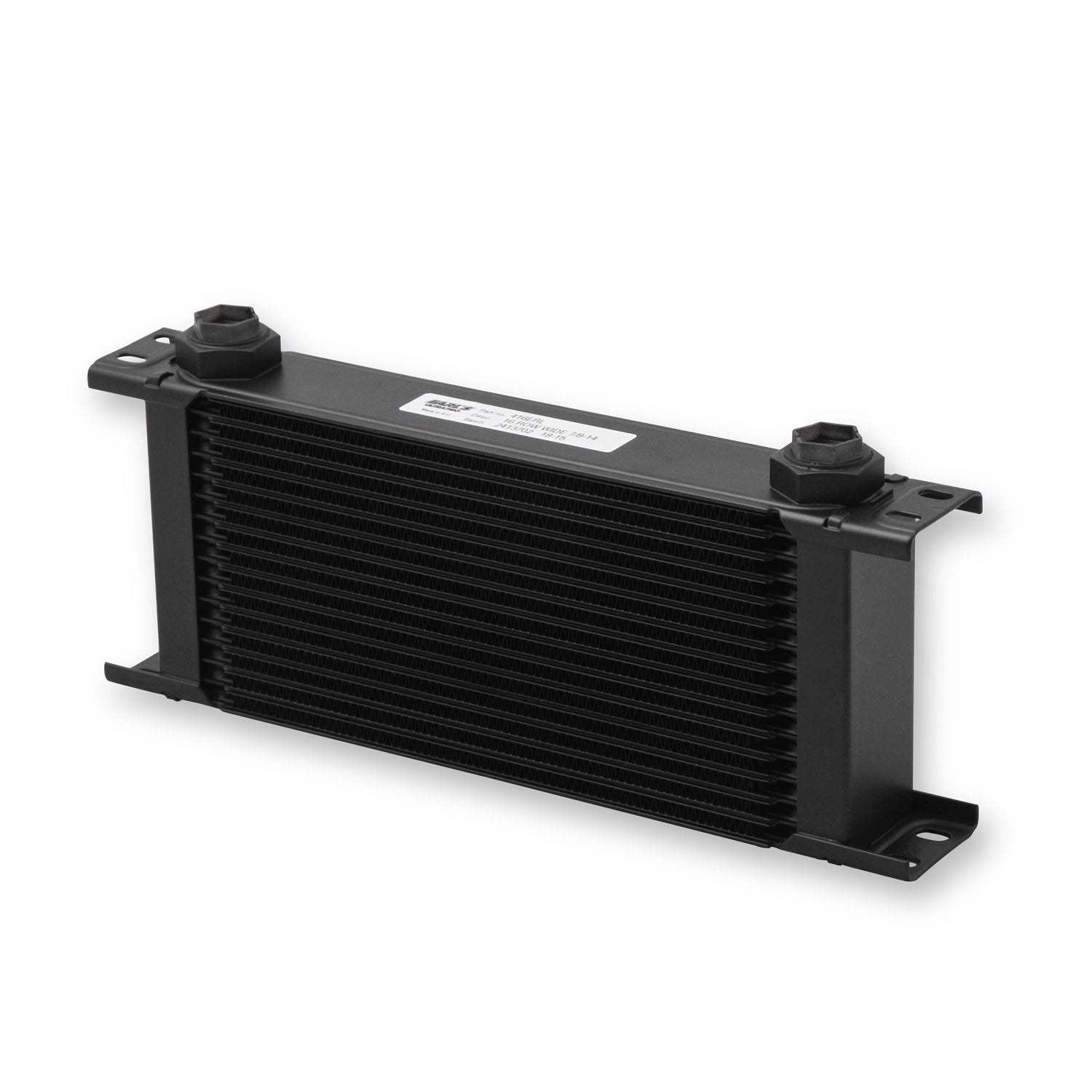

UltraPro Oil Cooler

$271.95
SKU: CFRL-416ERL
Earl's new premium quality UltraPRO oil coolers are ideal for all high performance applications. These aluminum stacked plate style coolers are made using state of the art brazing techniques for a durable and long lasting premium cooler that is highly efficient w/ minimal pressure drop. These coolers are available in 30 sizes for all applications (i.e..engine oil cooler, transmission cooler, power steering cooler,valve spring cooler, differential / gearbox cooler, etc.). Three fan pack style coolers are now also available w/ a premium cooling fan & shroud. These coolers feature -10 AN O-ring female ports and are used with special ORB cooler fittings (-6 AN, -8 AN,-10 AN, or -12 AN) and AN hose ends. Earls will also now stock coolers w/ -16 AN male flares brazed on the cooler for applications that require larger ports for additional oil flow.
  • High Quality
  • State Of The Art Brazing Technology
  • Highly Efficient
  • Extremely Durable

Additional Attributes:

  • GTIN: 00090127040010
  • Body Width: 13.000 in.
  • Bracket Included: No
  • Capacity: 0.30 qt.
  • Construction: Stacked Plate - Brazed
  • Engine HP Range: 190-220
  • Engine Oil BTU Range: 23000-32000
  • Finish: Black
  • Fitting Centers: 9.530 in.
  • Fitting Number: 585106ERL
  • Fittings Included: No
  • Item Height: 4.800 in.
  • Item Weight: 2.300 lbs.
  • Material: Aluminum
  • Mounting Bracket Number: 400ERL
  • Mounting Bracket Width: 12.200 in.
  • Port Size: 0.875 in. -14 Female (-10 O-Ring Boss)
  • Product Line: UltraPro
  • Radiator Core Row Quantity: 16
  • Thickness: 2.000 in.
  • Transmission Fluid BTU Range: 13000-21000
  • WARNING CA Proposition 65: No
  • Width: Wide Cooler
  • Width (Less Mounting Ears): 11.125 in.

Packaging:

  • Quantity of Each:
  • Package UOM:
  • Dimension: 13.0000 x 12.0000 x 2.0000 inches
