UPR 1979-1993 Ford Mustang Chrome Moly K-Member Kit for Coyote Engine

By using UPR's 2005-96 Modular 4.6 / 5.0 K member with Fox Body A arms you can install a Coyote 5.0L or Modular 4.6L or 5.4L into your Fox Body Mustang! Now in a convenient Kit form, UPR's all new Chrome Moly Modular K-member - will save more weight and exceed any strength limitations of mild steel while allowing maximum header and oil pan clearance. ,Designed for the abuse of hardcore drag race, road race, and Street Enthusiasts. Most importantly it will handle the everyday wear and tear of city & highway streets like that was it's main intent. Not only does this K-member allow for the use of a Modular 4.6L/5.4L into a fox body Mustang but will also work for the Coyote 5.0L As seen here with the use of 96-04 4.6 motor mounts. All of our Suspension Products are made with the Highest Quality materials and most expensive components. We spare no expense on our products and always stand behind them with our Lifetime warranty that no one else offers.

Installs in 3-6 hours. If using after market motor mounts the locating tab may have to be trimmed. Must re-use factory hardware.

Optional Parts:

Hardware Kit Standard: Grade 10.9 hardware kit includes (4) A-Arm bolts, (8) A-Arm washers, (4) A-Arm nylock nuts, (4) K-member main bolts, (4) K-member main washers, (4) K-member rear pad bolts, (4) K-member rear pad washers.

Hardware Kit Master: Grade 10.9 hardware kit includes (4) A-Arm bolts, (8) A-Arm washers, (4) A-Arm nylock nuts, (4) K-member main bolts, (4) K-member main washers, (4) K-member OEM style J-nuts, (4) K-member rear pad bolts, (4) K-member rear pad washers (2) K-member rear aluminum retaining nut/blocks.

Bolt-On Tow Hooks: Two piece bolt together tow hooks can be added anywhere you like on the main hoop.

Motor Mount Shims: 6061 Aluminum Motor Mount shims to space the engine up for additional oil pan clearance, available in 1/4" or 3/8" thick.

» Does NOT Alter Wheelbase
» Silver Powder Coated Finish
» Thicker 1/4" Motor Mount Pads
» Tig Welded in Billet fixtures
» 4130 Seamless Chrome Moly Tubing
» Lighter and Stronger than Mild Steel
» Saves 70lbs over the factory K-member & A-Arms
» All Welding & Materials Made in the USA!
» Now includes Rack Bolts & Offset or Standard Rack Bushings
» Can be used with UPR Non-Adjustable, Adjustable A Arms or Factory A Arms

DOES NOT WORK WITH ANY OTHER BRAND AFTERMARKET TUBULAR A ARMS

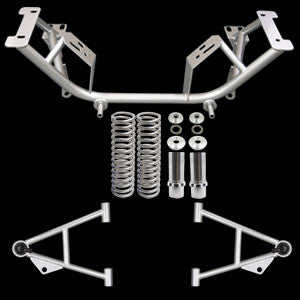

» Chrome Moly Tubular K-member Silver Powder Coated
» Chrome Moly Tubular A-arms Silver Powder Coated
» Front Coil Over Kit with Viking Springs.

» Rack Bolts & Bushings

1979 1980 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 LX GT GTS Mustang Cobra Shelby Roush Saleen & Vehicles.

Made in the USA!
