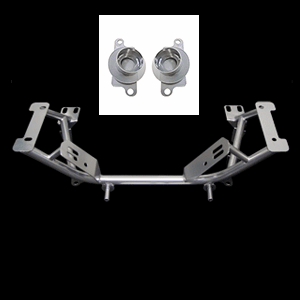

UPR 1979-1995 Ford Mustang Chrome Moly K-Member w/Spring Perches Kit

$499.99 USD
By UPR
SKU: UPR-2005-79-SP
View details
UPR's all new Chrome Moly K-member - will save more weight and exceed any strength limitations of mild steel while allowing maximum header and oil pan clearance. Designed for the abuse of hardcore drag race, road race, and Street Enthusiasts. Most importantly it will handle the everyday wear and tear of city & highway streets like that was it's main intent. Includes bolt on spring perches for use with Factory A arms and springs. All of our Suspension Products are made with the Highest Quality materials and most expensive components. We spare no expense on our products and always stand behind them with our Lifetime warranty that no one else offers.

Installs in 3-6 hours. If using after market motor mounts the locating tab may have to be trimmed. Must re-use factory hardware.
Optional Parts:

Hardware Kit Standard: Grade 10.9 hardware kit includes (4) A-Arm bolts, (8) A-Arm washers, (4) A-Arm nylock nuts, (4) K-member main bolts, (4) K-member main washers, (4) K-member rear pad bolts, (4) K-member rear pad washers.

Hardware Kit Master: Grade 10.9 hardware kit includes (4) A-Arm bolts, (8) A-Arm washers, (4) A-Arm nylock nuts, (4) K-member main bolts, (4) K-member main washers, (4) K-member OEM style J-nuts, (4) K-member rear pad bolts, (4) K-member rear pad washers (2) K-member rear aluminum retaining nut/blocks.
Bolt-On Tow Hooks: Two piece bolt together tow hooks can be added anywhere you like on the main hoop.

Product Features:

» Does NOT Alter Wheelbase
» Silver Powder Coated Finish
» Thicker 1/4" Motor Mount Pads
» Tig Welded in Billet fixtures
» 4130 Seamless Chrome Moly Tubing
» Lighter and Stronger than Mild Steel
» Saves 32lbs over the factory K-member
» All Welding & Materials Made in the USA!
» Bolt On Spring Perches for use with Factory A-Arms
» Now includes Rack Bolts & Offset or Standard Rack Bushings
» Will not work with UPR Non-Adjustable or Adjustable A Arms
» Requires OEM Stock A-arms with a spring perch to reuse factory style coil springs

DOES NOT WORK WITH ANY OTHER BRAND AFTERMARKET TUBULAR A ARMS

Fits These Vehicles:

1979 1980 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 LX GT GTS V6 Mustang Cobra Roush Saleen & Vehicles.
Will also bolt into a 96-04 Ford Mustang for use with a Windsor based engine.
Made in the USA!

Q & A

Question: Can I use stock motor mounts with this K-member?

Answer: Yes you can use stock, aftermarket urethane or even solid motor mounts.


Question: Does this K-member move the tires forward or backward like others?

Answer: No it retains the factory wheelbase and places the wheels in the factory location.
