COMP Cams Cam & Lifter Kit CB XR296H-R1 - CL11-456-8

$1,097.95 USD
SKU: BBR_BDQQ-CL11-456-8

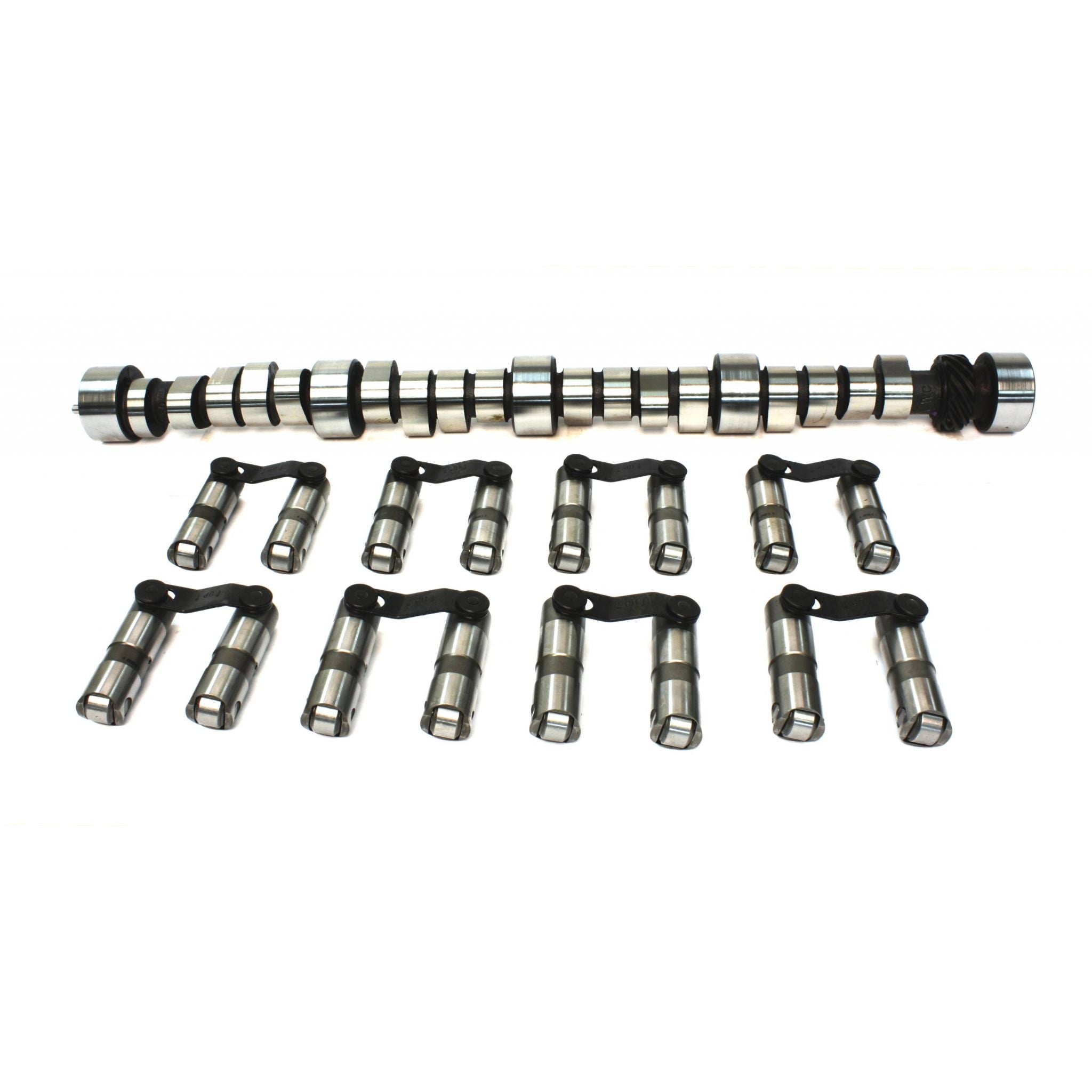

CL-KIT - Cam and Lifter Kit Includes: Camshaft, Lifters, Assembly Lube, Decals and Instructions.

Additional Attributes:

  • GTIN: 00036584040729
  • C.A.R.B. Exempt for On-Road Vehicles?: No
  • C.A.R.B. Exemption Reason: N/A
  • C.A.R.B. E.O. Number: N/A
  • Kit Type: CL-Kit - Cam and Lifter Kit
  • Camshaft Series: Xtreme Marine
  • Usage: Marine
  • Cam Type: Hydraulic Roller
  • Basic Operating RPM Range: 2,800-6,200
  • Intake Duration at .050 Inch Lift: 242
  • Exhaust Duration at .050 inch Lift: 248
  • Advertised Intake Duration: 296
  • Advertised Exhaust Duration: 302
  • Lobe Separation: 112
  • Intake Valve Lift: 0.566
  • Exhaust Valve Lift: 0.566
  • Lifters Included: Yes
  • Valve Springs Required: Yes
  • Assembly Lubricant Included: No
  • Camshaft Gear Attachment: 3-Bolt
  • Camshaft Material: Austempered Ductile Iron
  • Lifter Type: Hydraulic Roller
  • Timing Chain and Gears Included: No
  • Valve Stem Seals Included: No
  • Retainers Included: No
  • Locks Included: No
  • Gaskets Included: No
  • Engine Family: Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
  • Amazon ASIN: B001GEPC0W
  • C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
  • C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
  • C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
  • C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.

Extened Information:

  • Emissions : Not Legal For C.A.R.B. - This part is not legal for sale or use in C.A.R.B. restricted areas
  • Life Cycle Status: Available To Order

Packaging:

  • Quantity of Each: 1
  • Package UOM: KT
  • Dimension: 26.5 x 8.5 x 3 inches
