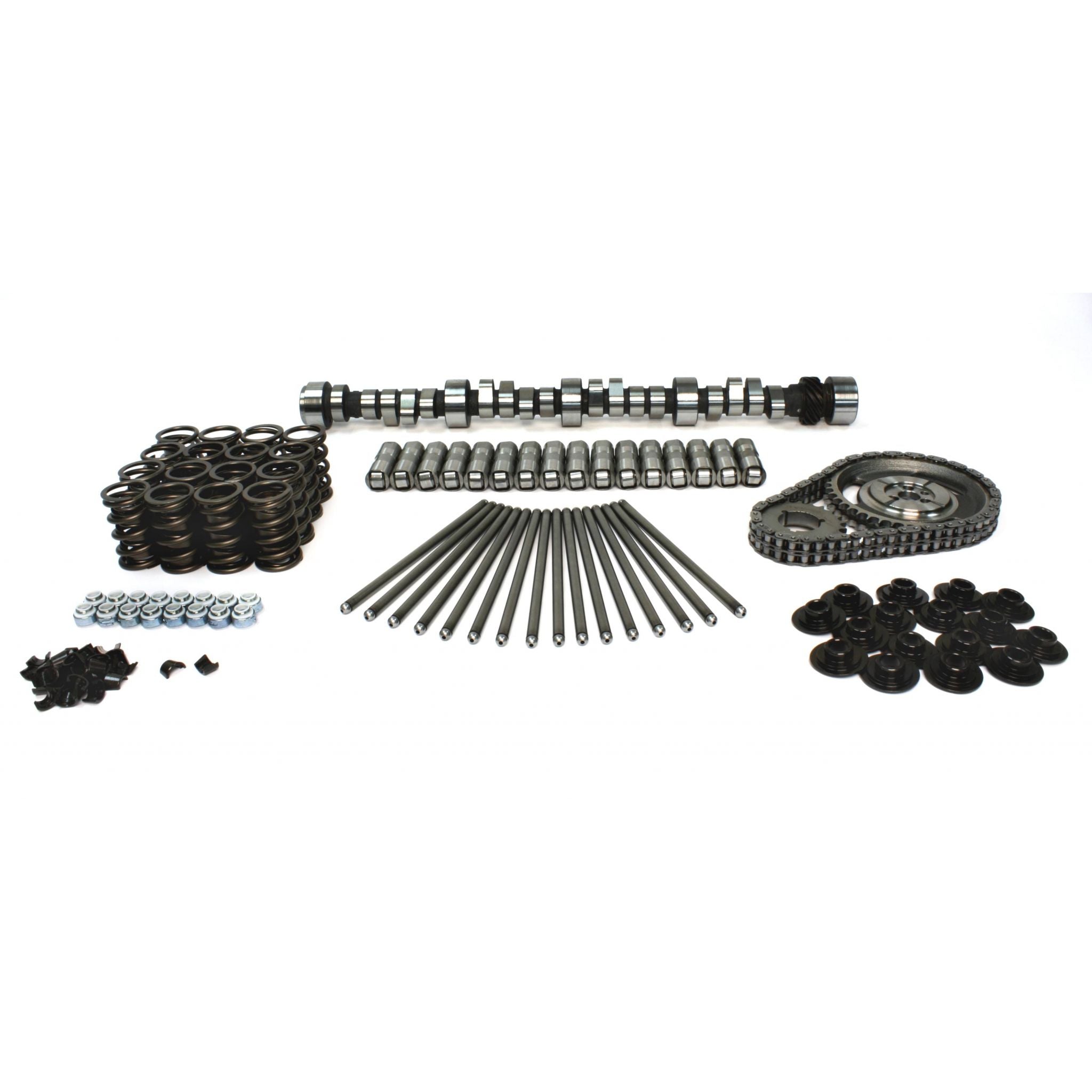

K-KIT - Complete Kit Includes: Camshaft, Lifters, Valve Springs, Retainers, Valve Locks, Valve Stem Seals, Timing Chain Set, Assembly Lube (in flat tappet applications), Decals and Instructions.
Additional Attributes:
- GTIN: 00036584068822
- Exhaust Valve Lift: 0.51
- Lifters Included: Yes
- Valve Springs Included: Yes
- Assembly Lubricant Included: No
- Camshaft Gear Attachment: 3-Bolt
- Camshaft Material: Austempered Ductile Iron
- Lifter Type: Hydraulic Roller
- Timing Chain and Gears Included: Yes
- Valve Stem Seals Included: Yes
- Gaskets Included: No
- Engine Family: Chevrolet 305-350 c.i. 8 Cylinder O.E. Roller (1987-1998)
- Amazon ASIN: B001R9BVQ0
- C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
- C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for On-Road Vehicles?: No
- C.A.R.B. Exemption Reason: N/A
- C.A.R.B. E.O. Number: N/A
- Kit Type: K-Kit - Complete Kit
- Camshaft Series: Xtreme Energy Computer Controlled
- Usage: Street/Performance
- Cam Type: Hydraulic Roller
- Basic Operating RPM Range: 1,800-5,800
- Intake Duration at .050 Inch Lift: 224
- Exhaust Duration at .050 inch Lift: 230
- Advertised Intake Duration: 276
- Advertised Exhaust Duration: 281
- Lobe Separation: 112
- Intake Valve Lift: 0.503
Extened Information:
- Emissions : Not in CA
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: KT
- Dimension: 26 x 10.5 x 5 inches
PDF:
dddbebdc29809COMP Cams Camshaft Kit CS XR276HR-12 - K08-503-8
