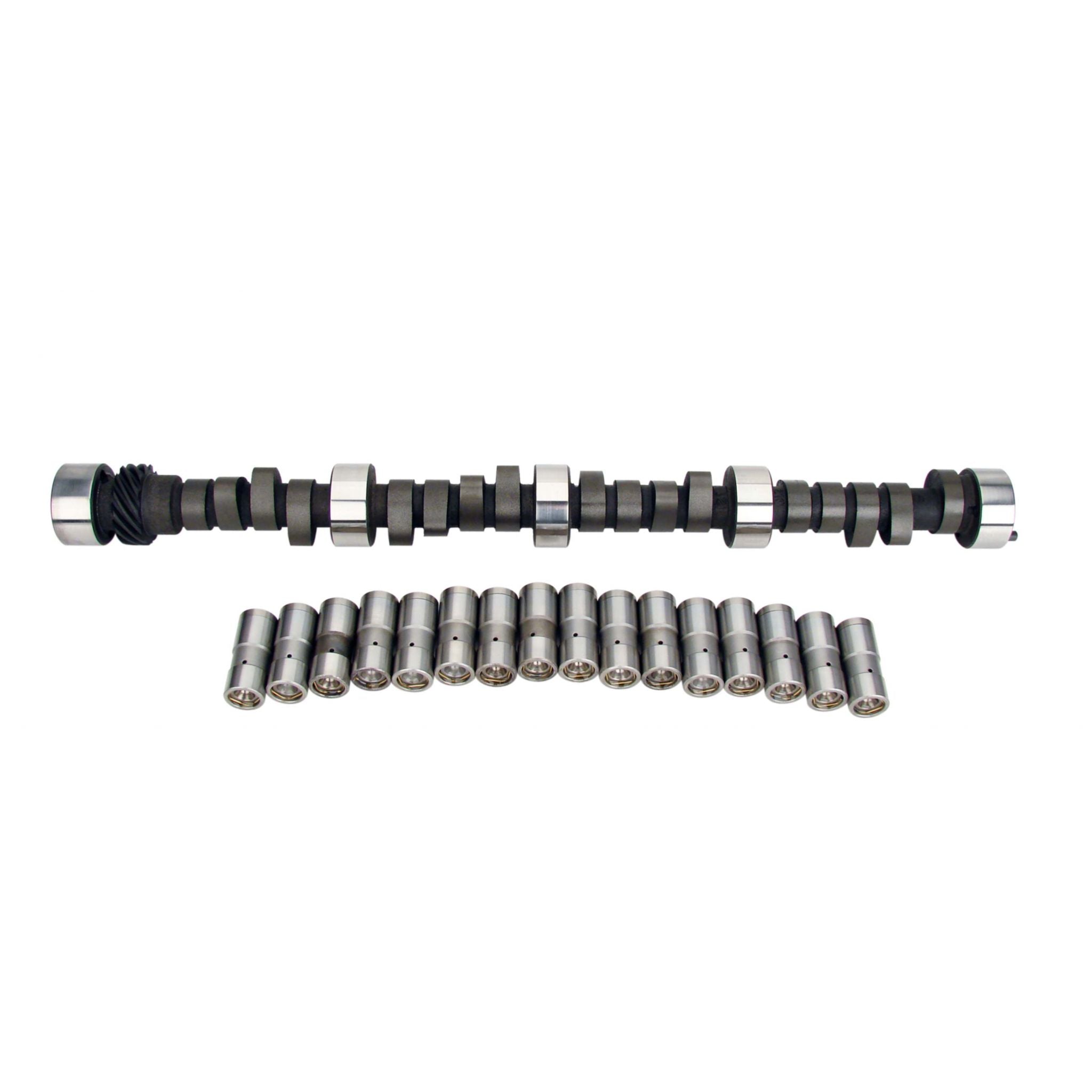

COMP Cams Cam & Lifter Kit CS XM 278H-1 - CL12-244-4

Additional Attributes:

• GTIN: 00036584041481
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A
• Kit Type: CL-Kit - Cam and Lifter Kit
• Camshaft Series: Xtreme Marine
• Usage: OEM
• Cam Type: Hydraulic Flat Tappet
• Basic Operating RPM Range: 2,000-6,200
• Intake Duration at .050 Inch Lift: 234
• Exhaust Duration at .050 inch Lift: 244
• Advertised Intake Duration: 278
• Advertised Exhaust Duration: 292
• Lobe Separation: 112
• Intake Valve Lift: 0.498
• Exhaust Valve Lift: 0.5
• Lifters Included: Yes
• Valve Springs Required: Yes
• Assembly Lubricant Included: Yes
• Camshaft Gear Attachment: 3-Bolt
• Camshaft Material: Cast Iron
• Lifter Type: Hydraulic Flat Tappet
• Timing Chain and Gears Included: No
• Valve Stem Seals Included: No
• Retainers Included: No
• Locks Included: No
• Gaskets Included: No
• SK-Kit Upgrade: SK12-244-4
• Engine Family: Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
• Amazon ASIN: B001GELMO2
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.

Extened Information:

• Emissions : Not in CA
• Life Cycle Status: Available To Order

Packaging:

• Quantity of Each: 1
• Package UOM: KT
• Dimension: 25.3 x 5.5 x 3 inches
