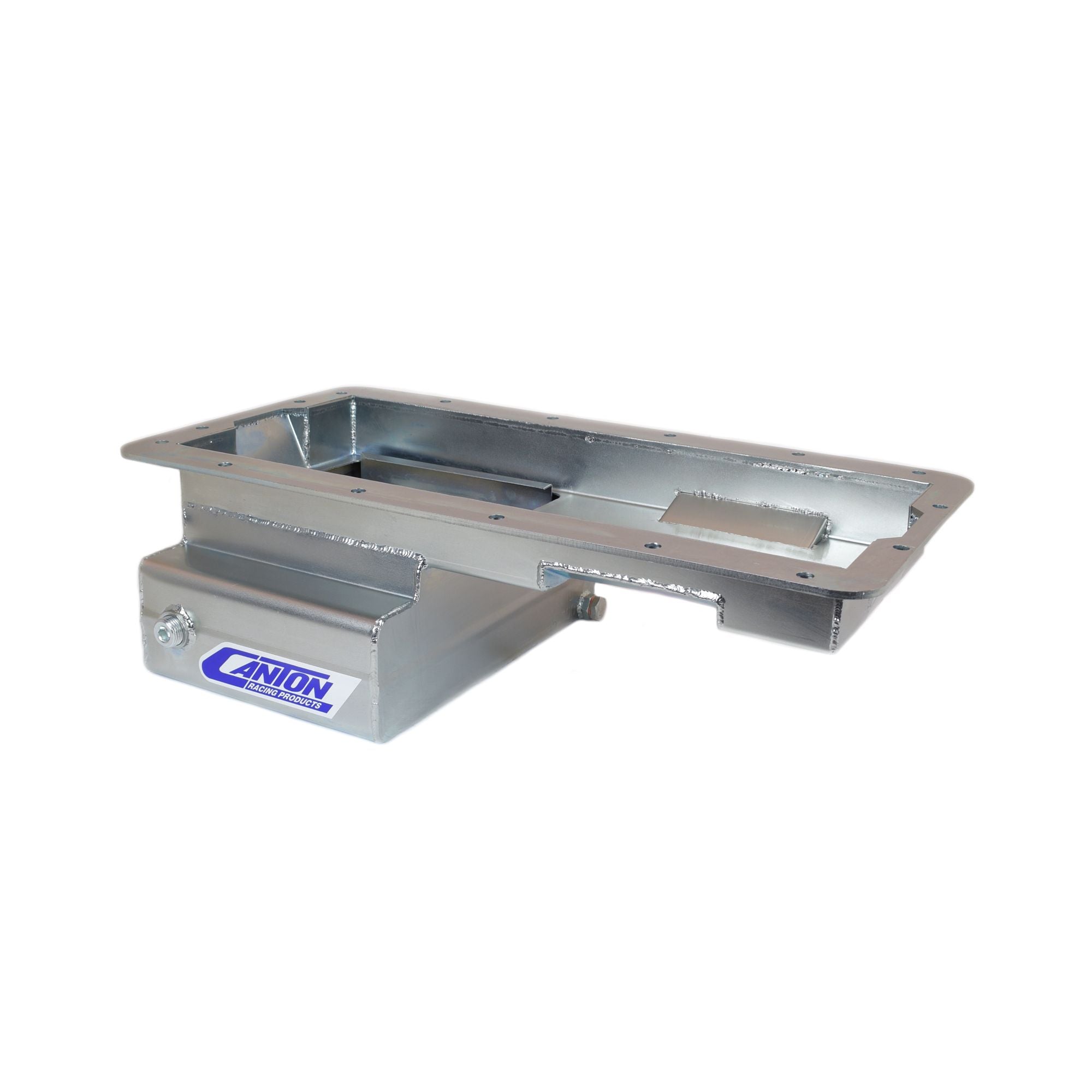

Canton 15-790 Oil Pan For Ford 4.6L 5.4L Baffled Front Sump Pan For Engine Swap

This front sump engine swap oil pan is designed to install 4.6/5.4L modular engines into early Ford chassis that require a front sump pan. It has a 6-1/4" deep, 12" wide, by 8" long sump with a 7 quart system capacity. This pan requires our 15-791 pickup for 4.6L and 5.4L 2V pumps or 15-793 pickup for 4.6L and 5.4L 4V pumps, 3V use O.E.M Pickup.

• 7 qt System Capacity

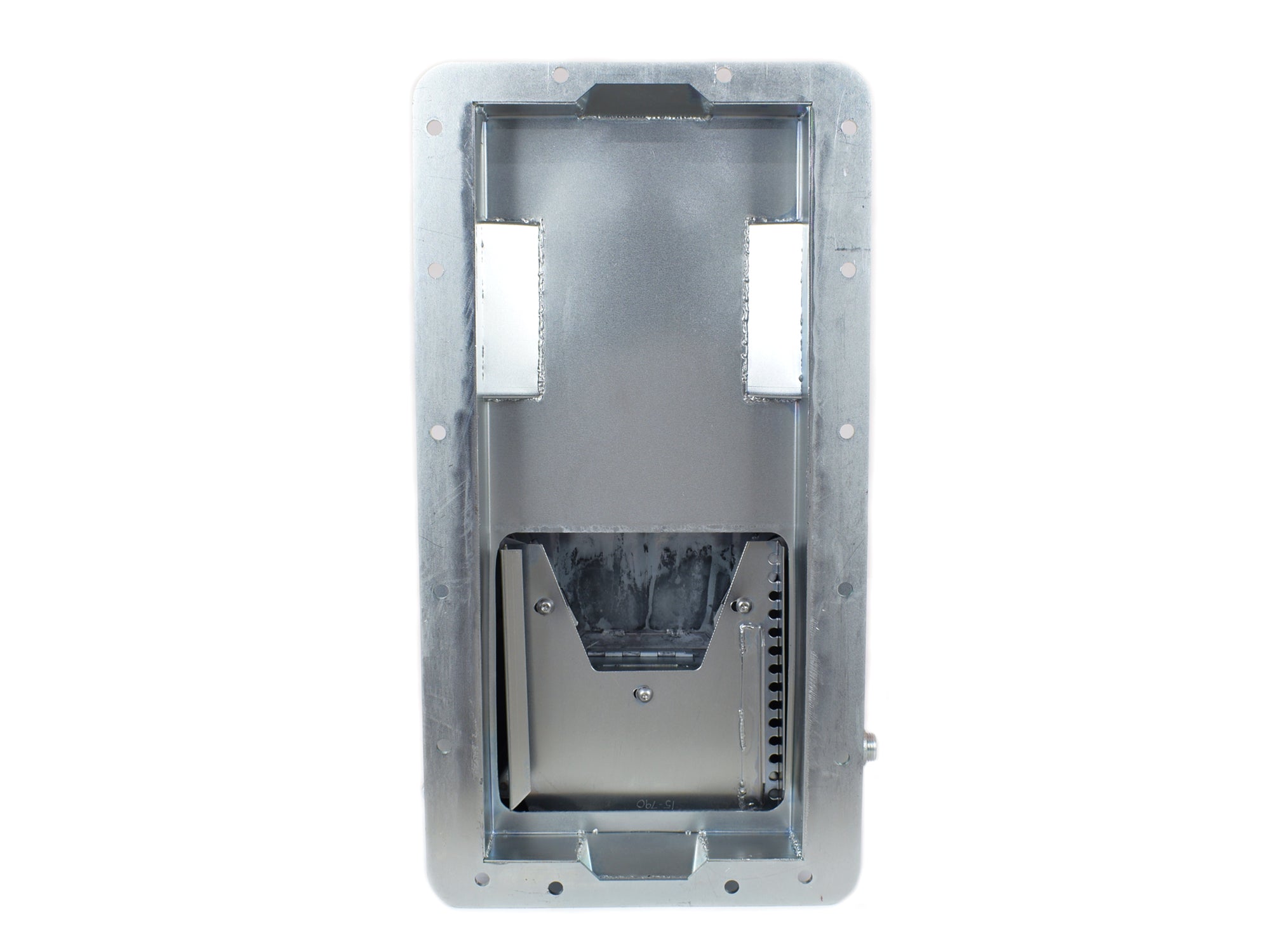

• Road Race Baffle Assembly With Five Trap Doors
• Removable Windage/Anti-Slosh Baffle
• 1/2" NPT Temperature Bung
• Provision For Our Pan Mounted Dipstick
• Magnetic Drain Plug

Attributes:

• GTIN: 00887753713667
• Brand Name: Canton
• Baffled: Yes
• Hardware Included: No
• Sump Width: 12 inches
• Sump Depth: 6.25 inches
• Stoke: 106MM
• Recommended Accessory 4: 88-780 ? Modular Ford 4.6L/5.4L One Piece Oil Pan Gasket
• Recommended Accessory 3: 20-939 - Ford 4.6L/5.4L Screen Windage Tray
• Recommended Accessory 2: 15-793 - Pickup for 4.6L/5.4L 4V Pumps
• Recommended Accessory 1: 15-791 - Pickup for 4.6L/5.4L 2V Pumps
• Pickup Included: No
• Material: 16 Gauge Steel
• Kicked Out: Yes
• Gasket or Seal Included: No
• Capacity: 7 Quart System Capacity
• Finish: Silver Plating
• Feature 6: Magnetic Drain Plug
• Feature 5: Provision For Our Pan Mounted Dipstick
• Feature 4: 1/2" NPT Temperature Bung
• Feature 3: Removable Windage/Anti-Slosh Baffle
• Feature 2: Road Race Baffle Assembly With Five Trap Doors
• Feature 1: 7 qt System Capacity
• Drain Plug Included: Yes
• Dipstick Port: Yes
• Crank Scraper Included: No
• Windage Tray Included: No

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 26 x 14 x 10 inches
• Weight: 14 lb
