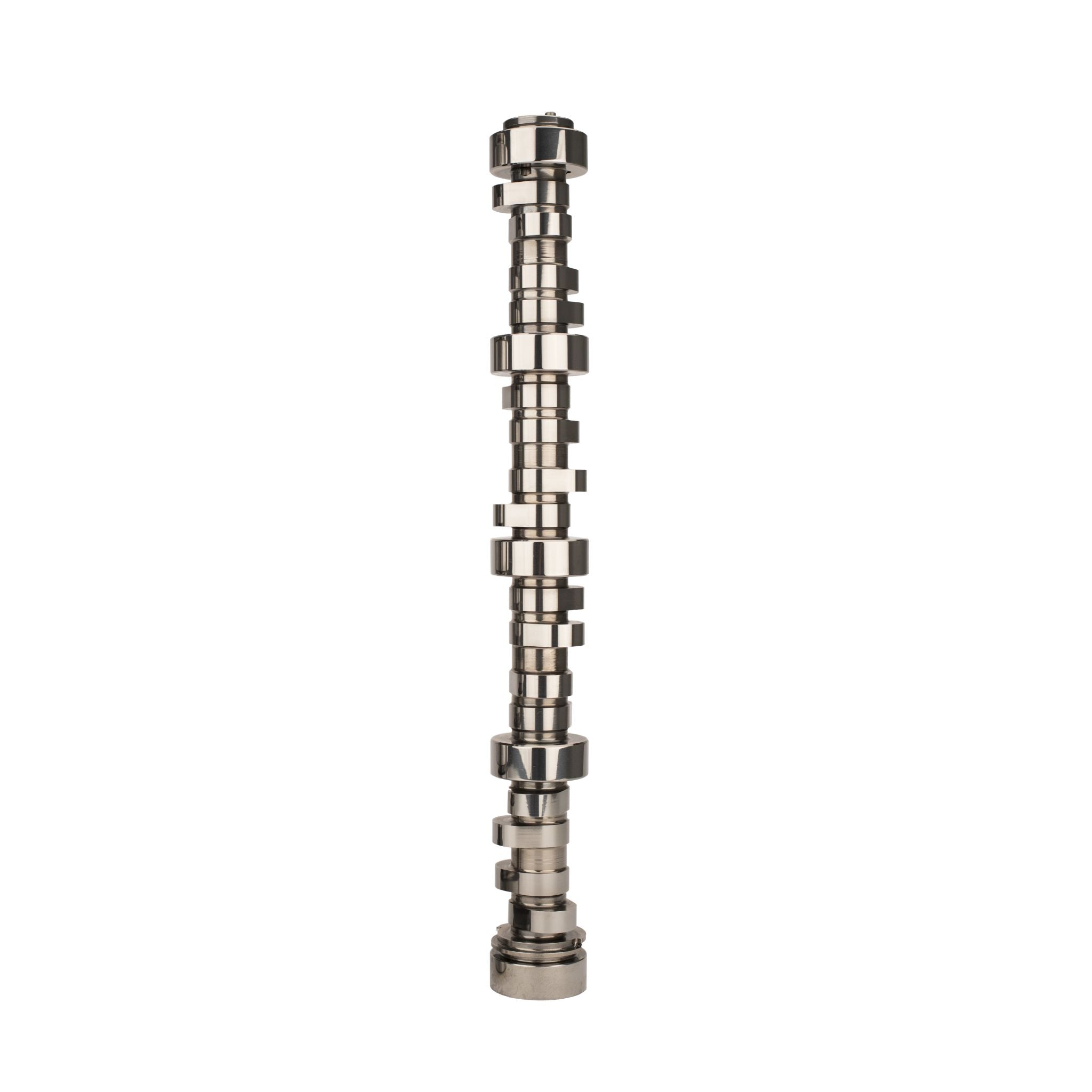

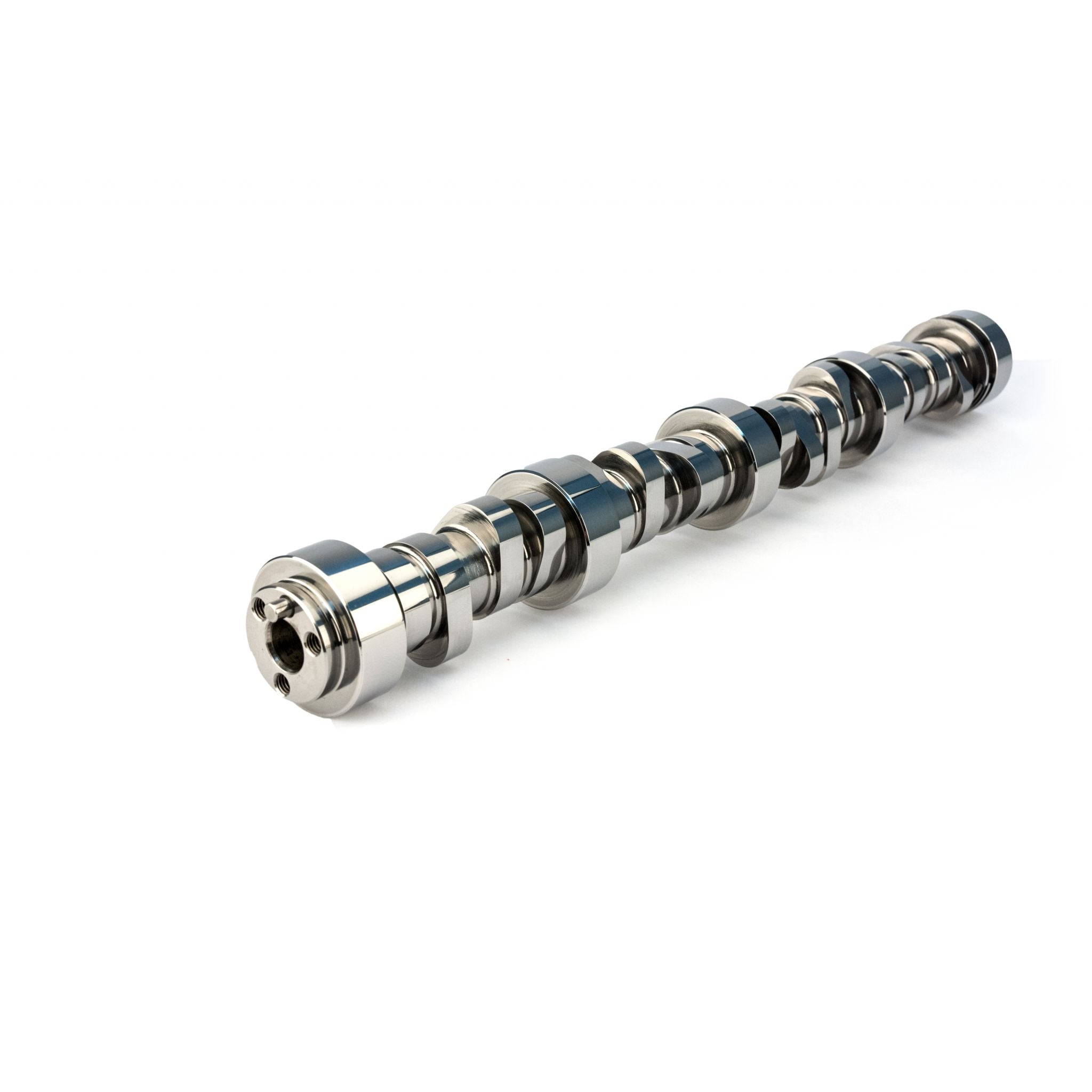

COMP Cams Camshaft LS1 285Lrr HR-113 - 54-470-11
$515.95 USD
SKU: BBR_BDQQ-54-470-11
Additional Attributes:
- GTIN: 00036584195320
- Camshaft Series: LSR Rectangular Port All Out Power
- Cam Type: Hydraulic Roller
- Grind Number: 285LRR HR-13
- Basic Operating RPM Range: 2,200-7,200
- Intake Duration at .050 Inch Lift: 235
- Exhaust Duration at .050 inch Lift: 251
- Advertised Intake Duration: 285
- Advertised Exhaust Duration: 301
- Lobe Separation: 113
- Intake Valve Lift: 0.621
- Exhaust Valve Lift: 0.624
- Lifters Included: No
- Valve Springs Required: Yes
- Assembly Lubricant Included: No
- Camshaft Gear Attachment: 3-Bolt
- Camshaft Material: Billet Steel
- Engine Family: GM LS GEN III/IV 3-Bolt 8 Cylinder (1997-2015)
- Lifter Type: Hydraulic Roller
- Amazon ASIN: B001P265TW
- C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
- C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for On-Road Vehicles?: No
- C.A.R.B. Exemption Reason: N/A
- C.A.R.B. E.O. Number: N/A
- MSE Process Video Link: https://www.youtube.com/watch?v=hTyIQxrPCCI
Extened Information:
- Life Cycle Status: Available To Order
- Emissions : Not Legal For C.A.R.B. - This part is not legal for sale or use in C.A.R.B. restricted areas
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 24.2 x 3 x 2.6 inches
